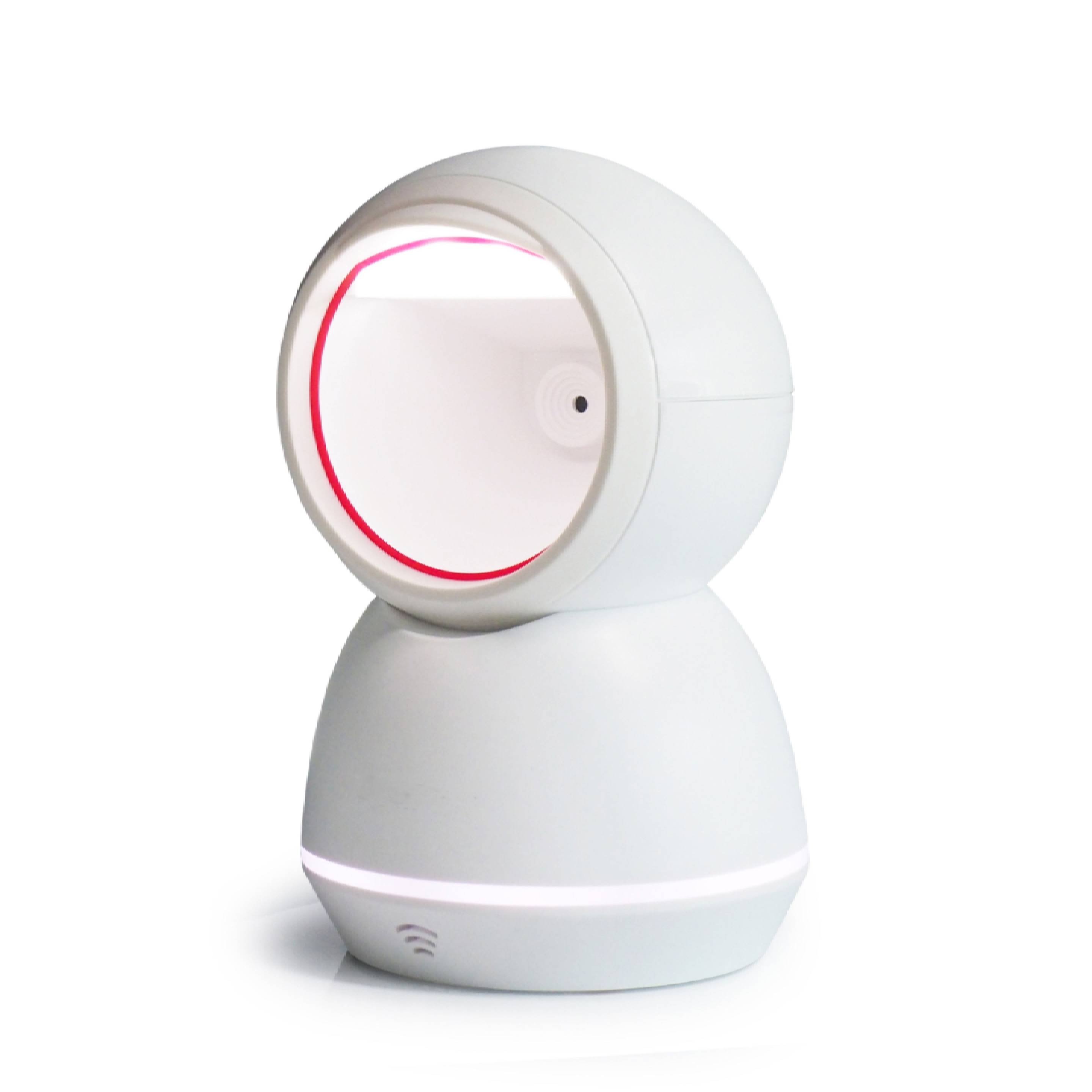

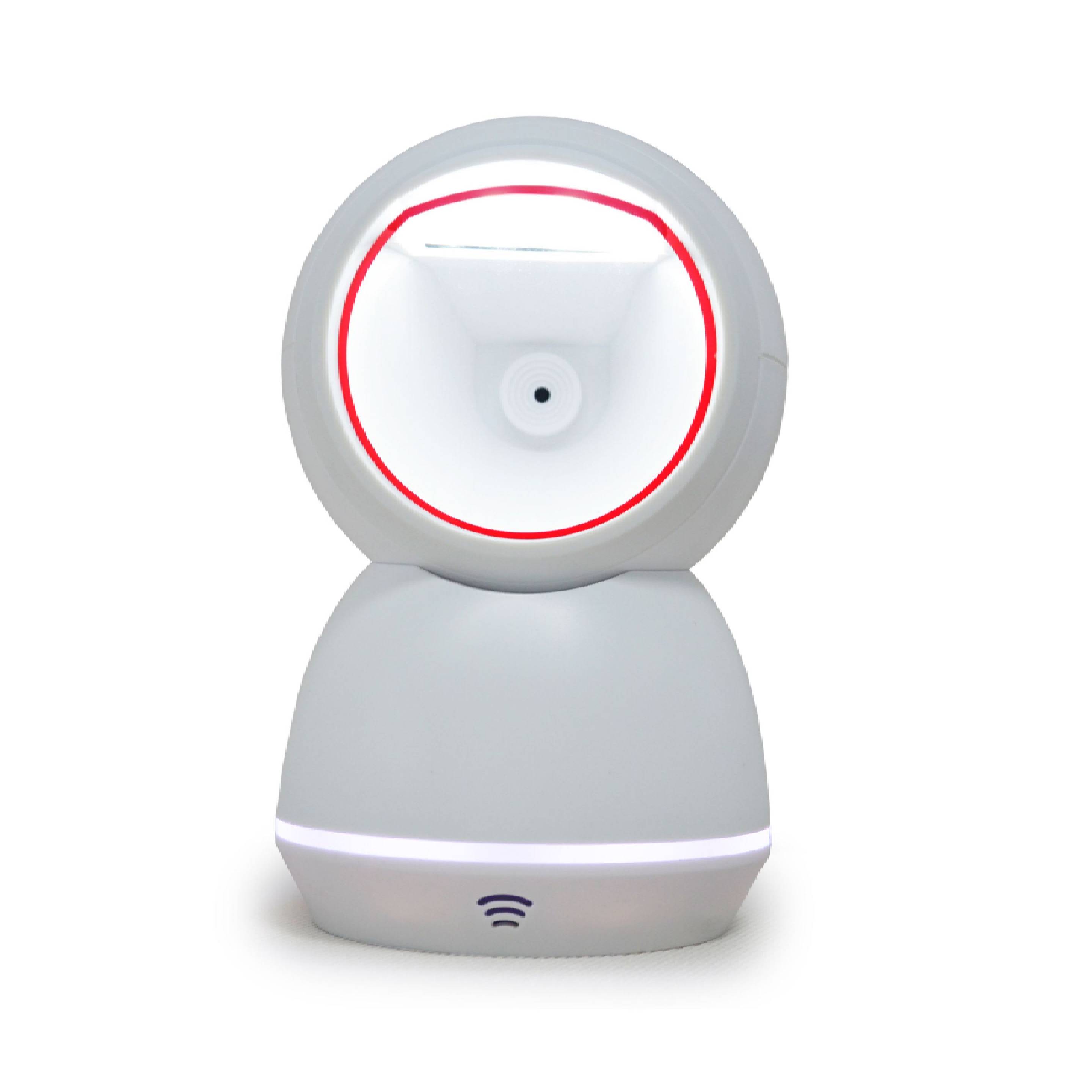

Home Products Barcode Scanner Hands-Free Scanner CMOS YJD70

YJD70

Product specifications

Image Sensor

640*480 CMOS global shutter

Illumination

White LED

Resolution(maximum)

0.102mm / 4mils

Print contrast ratio

≥15%

Motion tolerance

2m/sec

Features

CMOS

USB

RS232

Application Scenarios

Retail

POS

Payment

Features

Specifications

PRODUCT FEATURES

• Stylish and Compact Design

The YJD70 Barcode Scanner combines style with practicality, featuring a sleek and compact design that adds a modern touch to any workspace while saving valuable space.

• Automatic Dormant Mode

With an automatic dormant mode, this scanner intelligently conserves energy when not in use, ensuring optimal efficiency and prolonging battery life, making it an eco-friendly choice for businesses.

• High-Precision Global Shutter

Equipped with a high-resolution global shutter boasting 300,000 pixels, the YJD70 delivers unparalleled speed and precision in barcode scanning, enabling swift and accurate data capture for increased productivity.

• Minimum Resolution

Offering a minimum resolution of 4 Mils, this scanner ensures the detailed capture of barcodes, even those with intricate designs or smaller sizes, guaranteeing reliable scanning performance in various applications.

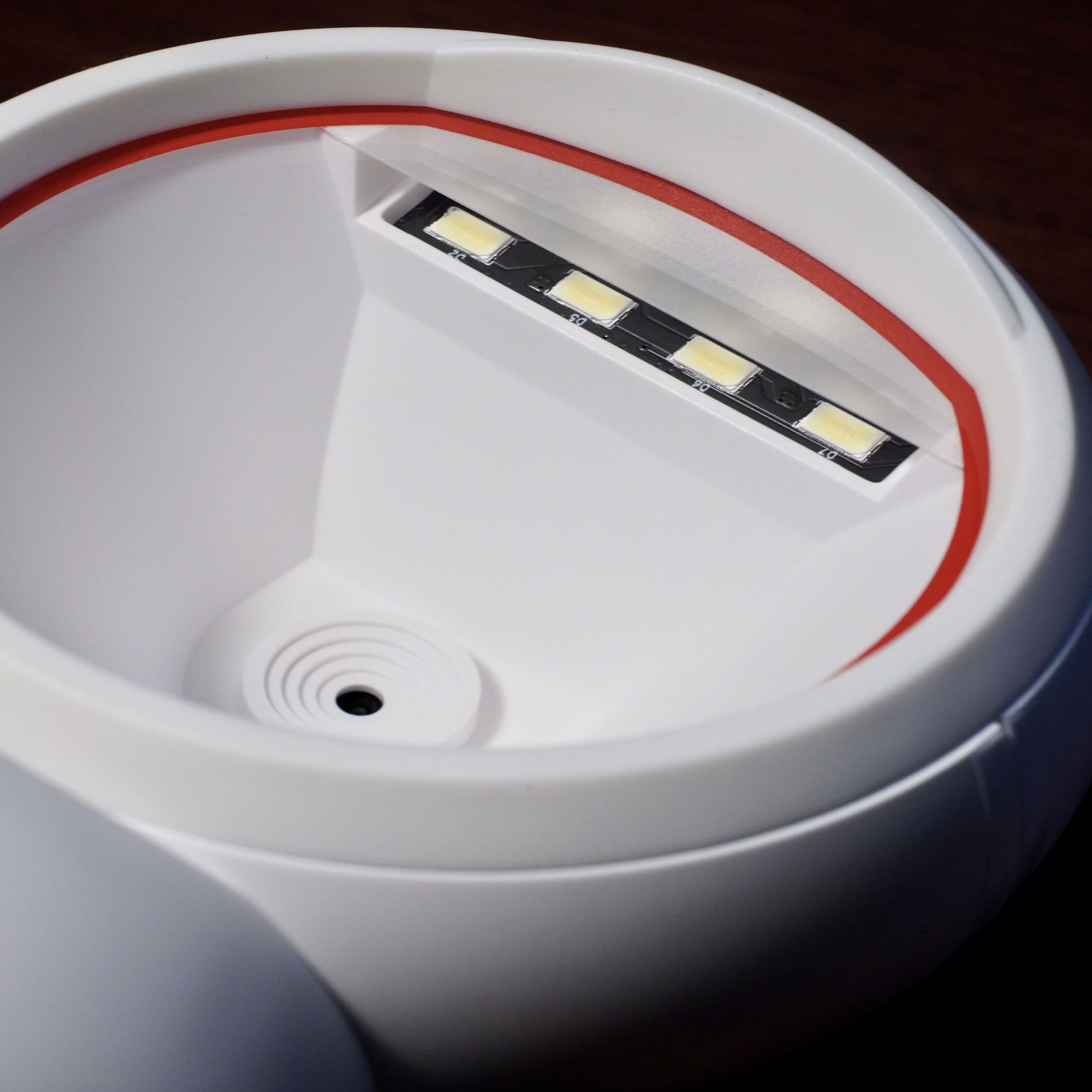

• Bright White LED

The integrated bright white LED illuminates scanning surfaces with clarity, enhancing visibility and enabling accurate barcode scanning in low-light conditions or on reflective surfaces, ensuring consistent performance in any environment.

• Compatibility

The YJD70 Barcode Scanner is compatible with all mainstream 1D and 2D barcodes, including QR codes, UPC codes, and DataMatrix codes, providing versatile scanning capabilities for diverse business needs.

• Durable Construction

Crafted with a strong body and scratch-resistant materials, this scanner is built to withstand the rigors of daily use in industrial or commercial settings, ensuring long-lasting durability and reliability.

• Versatile Scanning

In addition to traditional barcode scanning, the YJD70 excels at reading various LCD and OLED mobile phone screen codes, as well as printed product codes, offering versatility and adaptability for a wide range of applications, from retail and logistics to healthcare and manufacturing.

PRODUCT ATTRIBUTES


Light Source	LED White LED
Image sensor	640*480 pixels
Resolution(maximum)	0.102mm / 4mils
Print contrast ratio(minimum)	≥15%
Motion tolerance	2m/sec
Reading Angle	Pitch: 0-360°; Roll(Tilt): ±60°; Skew (Yaw): ±60°
Decoding Capability	1D: All standard 1D codes, including GS1 DataBar™ linear code can be automatically distinguished and decoded. 2D: Aztec Code; Data Matrix; MaxiCode; QRCode; HANXIN; MicroQR Code Stack code: GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; GS1 DataBar Composite; MicroPDF417; PDF417.
Reading Indicators	LED/Buzzer(adjustable tone）
Typical depth of Field	5mil CODE128 0mm—70mm 5mil EAN-13 0mm—70mm 13.34mil EAN-13 0mm—240mm 5mil PDF417 0mm—60mm 10mil PDF417 0mm—170mm 15mil PDF417 0mm—270mm 20mil DM 0mm—80mm (The minimum depth of field is determined by the barcode length and scanning angle. It depends on the print resolution, contrast and ambient light.)

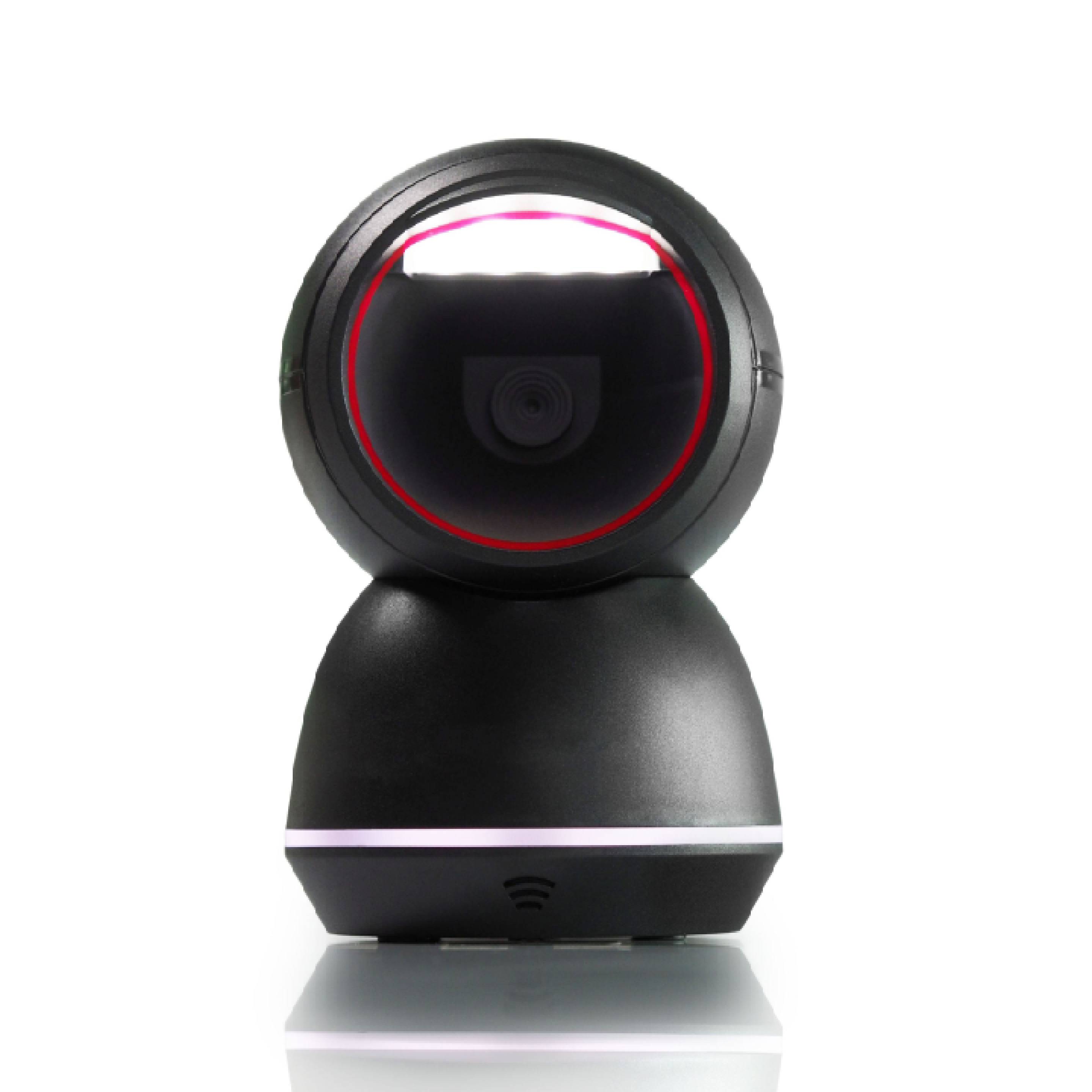

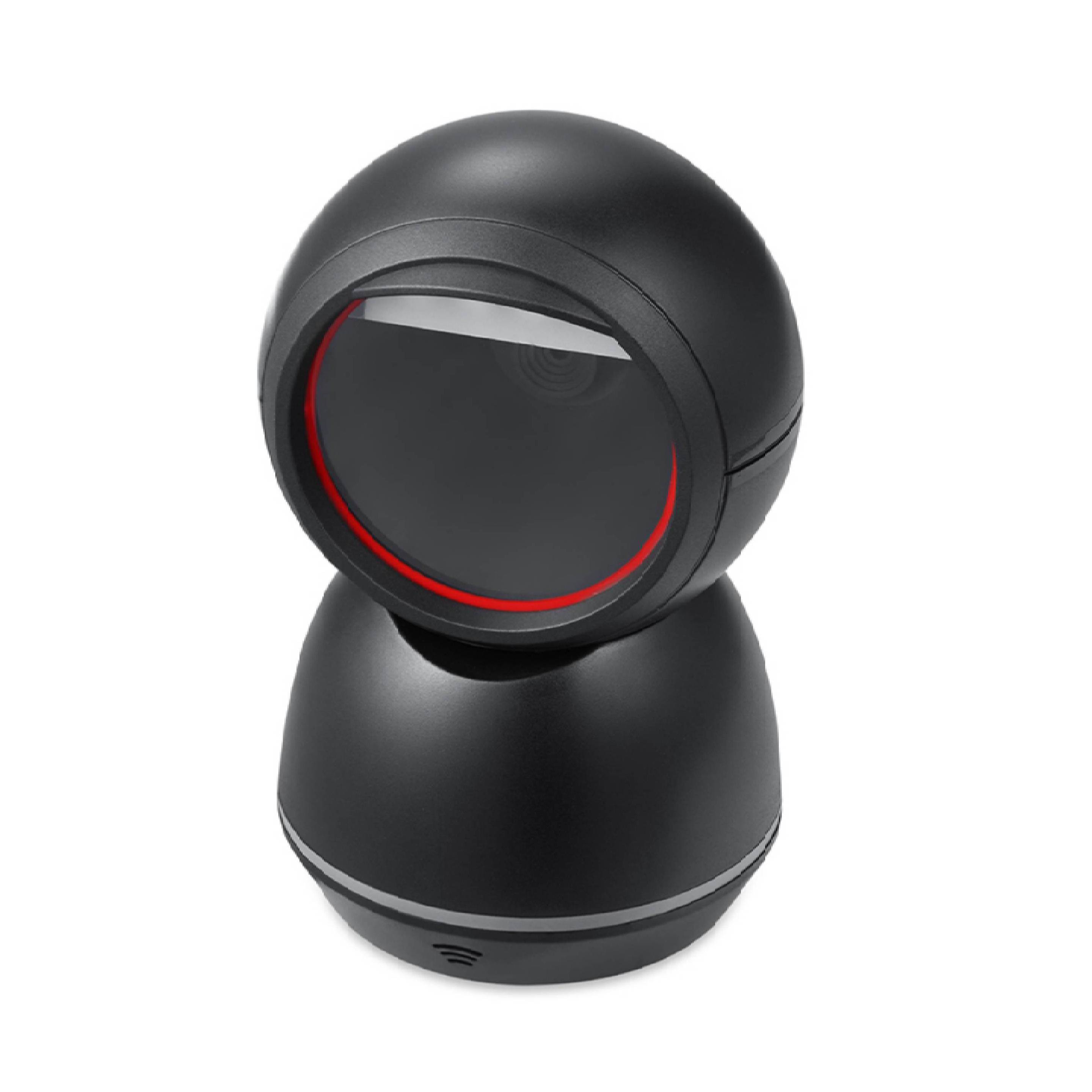

Color available	White; Black
*Dimensions（LWH）*	96105.55157.06mm
Weight	278g
Cable	1.8M
Current	Working current（Standard): < 300 mA Standby current（Standard): < 210 mA
Input Voltage	5 VDC (+/- 10%)/500mA
ESD protection(Air discharge)	8 kV
Drop resistance	Withstands repeated drops from 1.2m/4.0 ft onto a concrete surface.
Temperature	Operation: 0 to 40 °C
	Storage/Transport: -40 to 70 °C
Humidity(non-condensing)	5 - 95%
Ambient light	0 -100,000 lux

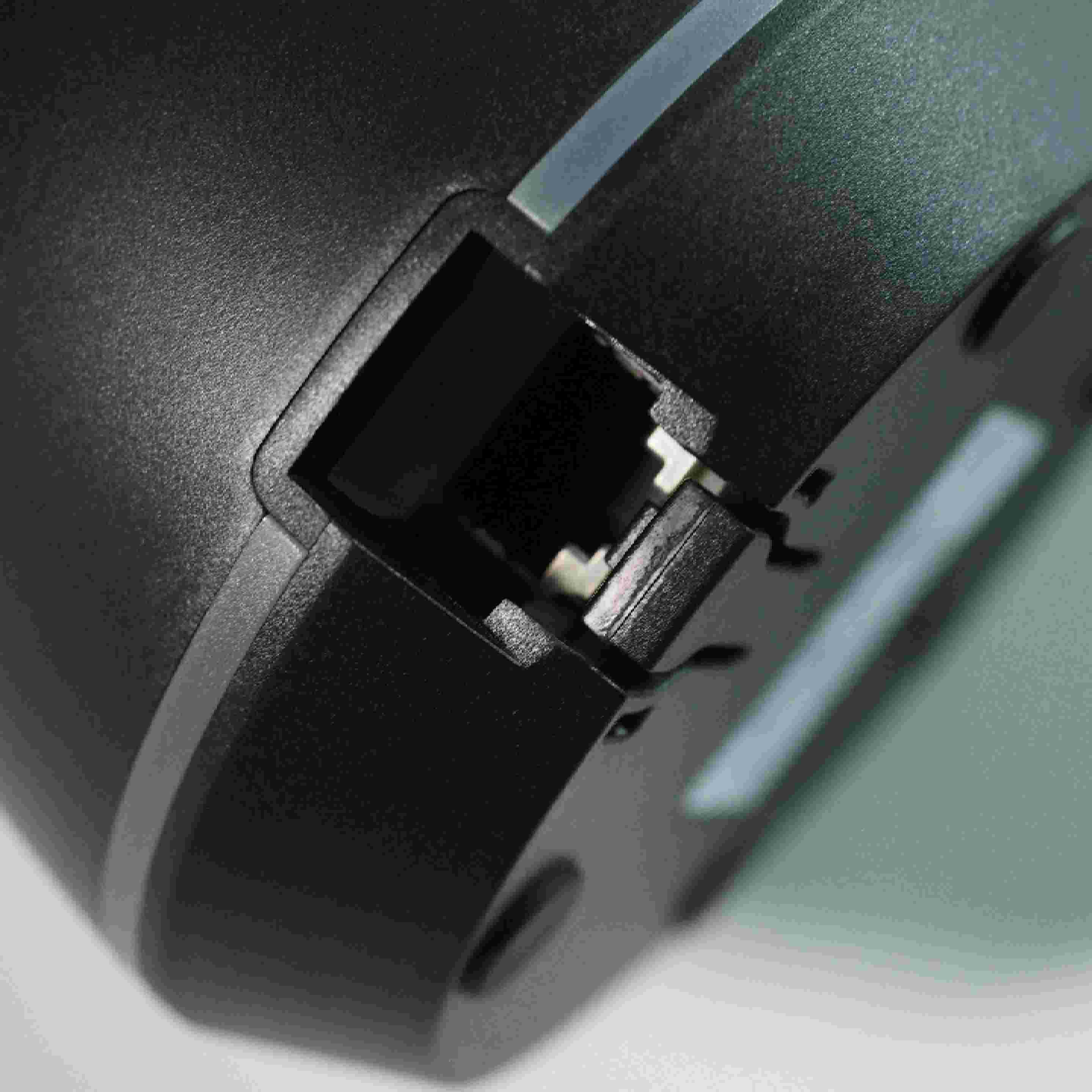

Interfaces	RS-232; USB HID; USB COM;HID POS available as per customer’s needs
Warranty	12/months
