A65

Pixels

1280 (H)*800 (V)

illumination

High brightness red light source / High brightness white light source

Focusing

Green LED aiming

Scan mode

Auto-sensing, external pulse mode, continuous scan mode, serial command mode

Symbologies

1D:

UPC A , UPC E , EAN 8 , EAN 13 , Code 128 , Code 39 , Code 93 , Code 32 , Code11 , Codabar ,Plessey , MSI , Interleaved 2 of 5 , IATA 2 of 5 , Matrix 2 of 5 , Straight 2 of 5 , Pharmacode , RSS-14 , RSS-14 Expanded , RSS-14 Limited ,Composite Code-A , Composite Code-B , Composite Code-C,etc.

2D:

PDF 417 , Micro PDF 417 , Data Matrix , QR , Micro QR , Aztec , MaxiCode ,etc.

Resolution

A65-SR:

1D : ≥4 mil ; 2D : ≥9 mil

A65-HD:

1D : ≥3 mil ; 2D : ≥7 mil

Typical  Depth of Field

A65-SR:

Code 39 (5mil) : 60 mm ~ 250 mm

EAN-13 (13mil) : 50 mm ~400 mm

QR (10 mil) : 35 mm ~ 130 mm

A65-HD:

Code 39 (3 mil) : 50 mm ~ 90 mm

Data Matrix (10 mil) : 40 mm ~ 150 mm

QR (7 mil) : 35 mm ~ 120 mm

Field of View

Horizontal 46°,  Vertical 29°

Symbol  Contrast

≥20% (UPC/EAN 100% , PCS 90%)

Dimensions

36（W）* 43（D）* 24（H）(mm)

Shell material

aluminum alloy

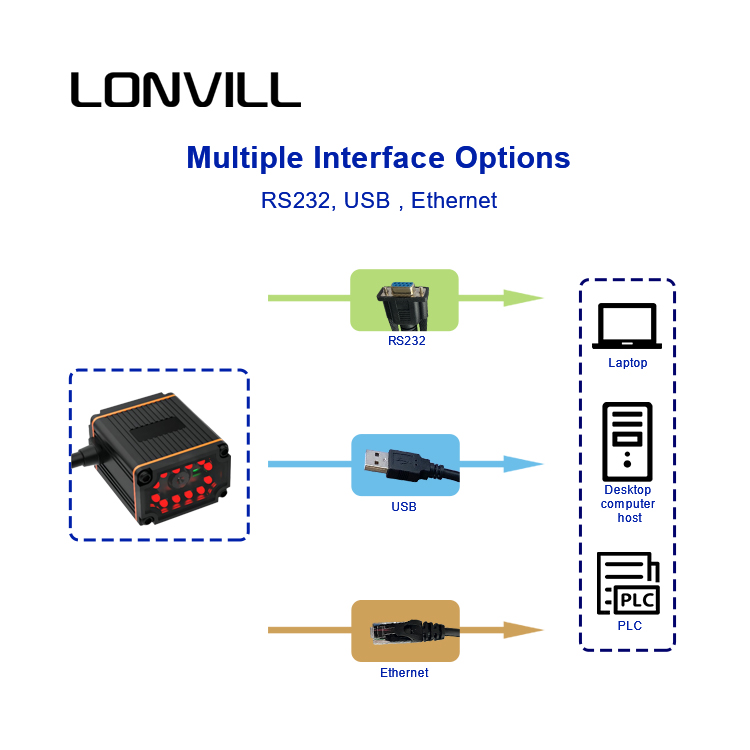

Communication Transmission

RS232, USB (HID ; CDC), Ethernet (TCP / UDP / Modbus)

Tip method

Buzzer, LED indicator

Operating Voltage

5-36 VDC

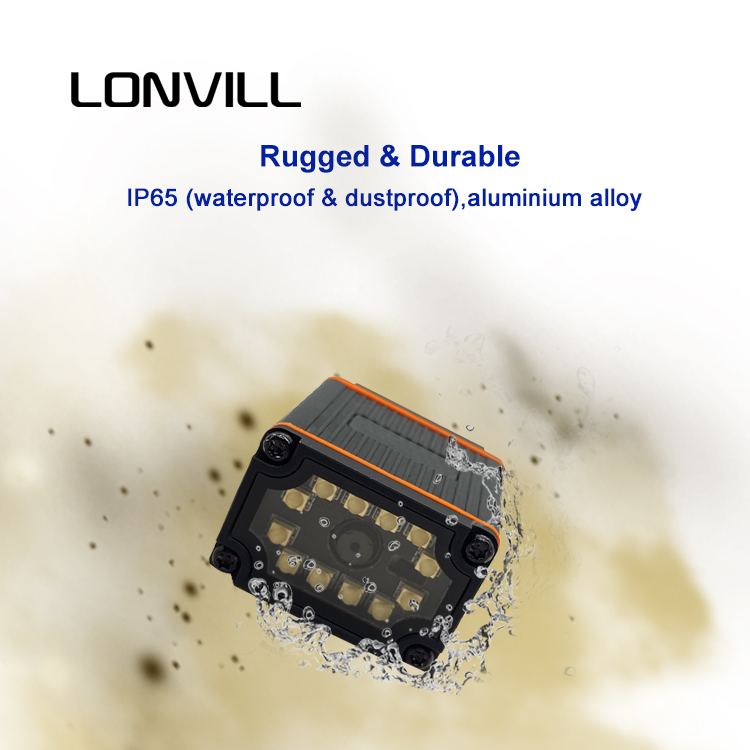

Sealing

IP65

Current@5VDC

Operating current :300 mA ±5% (typical),

450 mA±5%(maximum)

Standby current

100 mA ±5%

 External Inputs

1 opto-couple isolated input (NPN / PNG / relay)

 External output

2 way photocouple isolated output (Good ; NG)

Operating  Temperature

-20℃~+50℃

Storage  Temperature

-40℃~+70℃

Humidity

5% to 95%  (non-condensing)

Static Protection

±20 kV (air discharge), ±8 kV (direct discharge)

Drop height protection level

IP65

International Certification

CE EN55022 , FCC Part 15 Class B , CE EMC Class B

Warranty

1 Year
