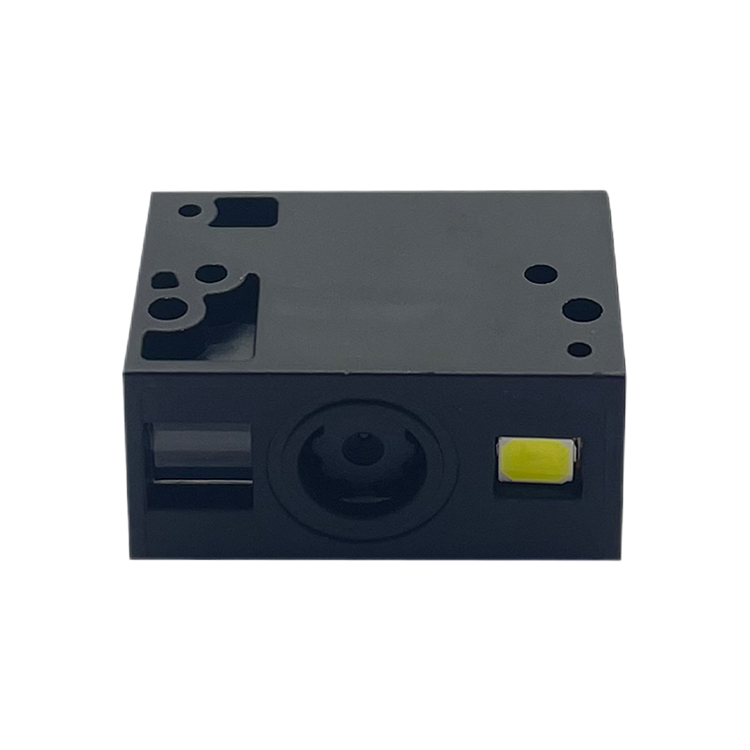

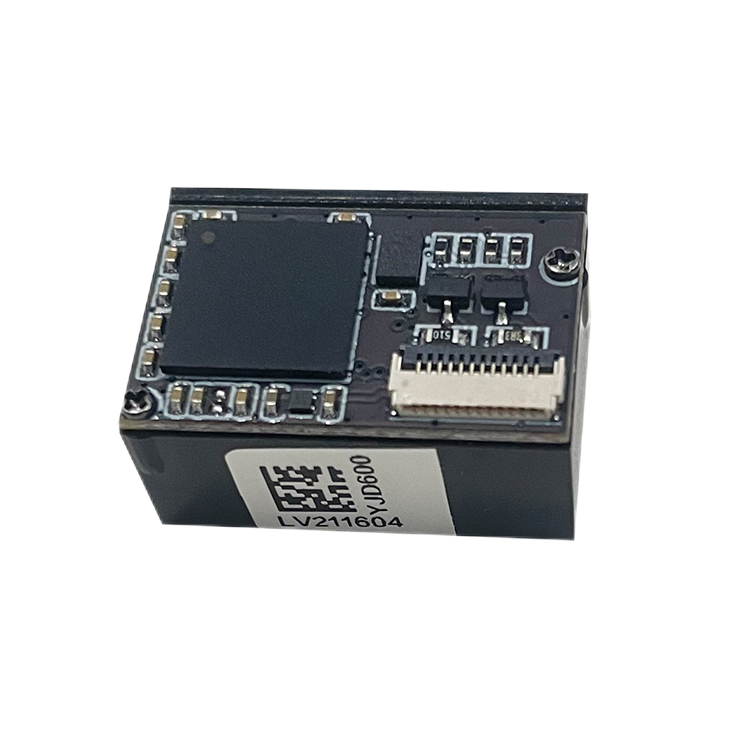

YJD600

Image sensor :640×480 CMOS

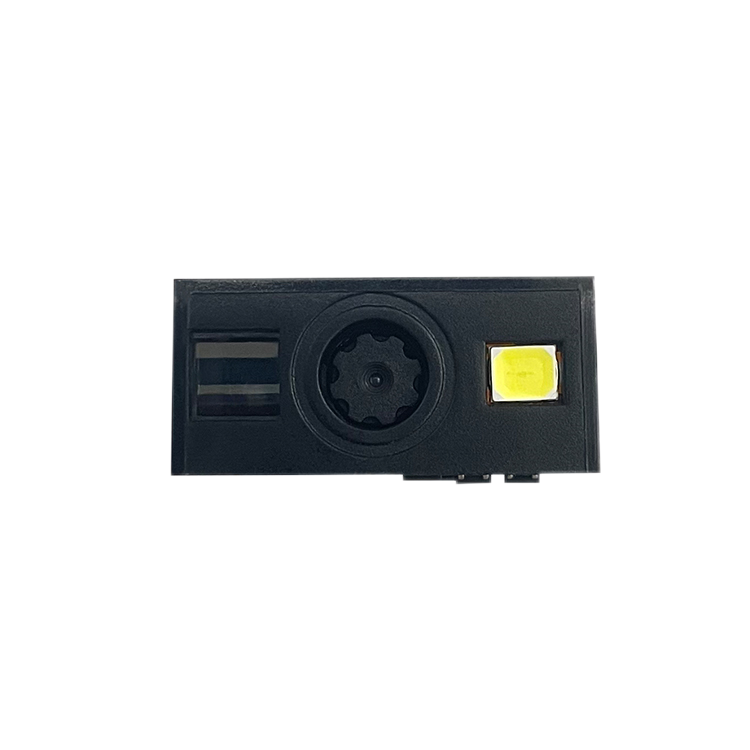

Illumination : white LED

Aiming: red LED

Data Capture:

2D :

QR Code、Micro QR、Data Matrix 、PDF417

1D :

Code 128、EAN-13 、EAN-8、UPC-E、UPC-A、ISBN、ISSN、Code11、

ITF-25（Interleaved 2 0f 5）、Code39、Code93、Code32、Codabar、Matrix 2 of 5、Industrial 25、IATA 25、MSI Plessey

Resolution ≥5mil

Typical Depth of Field:

EAN-13 : 45mm-270mm (13mil)

Code39 : 50mm-115mm （5mil ）

Code128 : 45mm-280mm (13mil)

QR Code : 20mm-185mm (15mil )

Data Marix : 30mm-120mm （10mil ）

PDF 417 : 40mm-105mm (6.67mil )

Symbol Contrast≥10%

Scan Angle Roll:360°，Pitch:± 60°，Skew ± 60°

Field of View: Horizontal  35°,Vertical  27°

Interface: TTL-232, USB (HID-KBW、Virtual Serial Interface)

Dimensions:21.5mm*14.3mm*11mm

Operating Voltage DC 3.3V/150mA/500mW,Idle:35mA

Environmental:

Operating  Temperature:-20℃~+60℃

Storage  Temperature: -40℃~+70℃

Ambient Light: 0~100,000LUX

Humidity：5% to 95%  (non-condensing)

Test conditions: ambient temperature = 23°C; ambient illumination = 360 LUX daylight; paper codes using TMS

custom test codes.

Offset test conditions: test distance = (min. depth of field + max. depth of field)/2; 2D: QR CODE; 10 Bytes;

min. bar width = 15 mil; PCS = 0.8;

Specifications are subject to change without notice.
