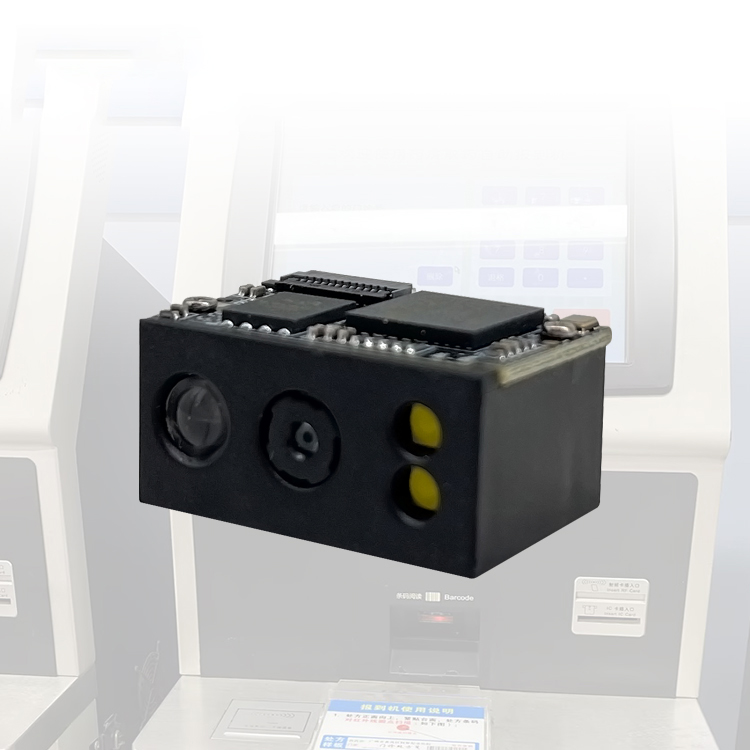

YJD30

Contact Us
Product specifications
Sensor
640*480 CMOS
Size
22mm*14.5mm*10.6mm
Weight
3g
2D
PDF417,MicroQR, Data Matrix,QR-code,Aztec
Accuracy
5mil
Features
1D
2D
IP54
TTL
USB

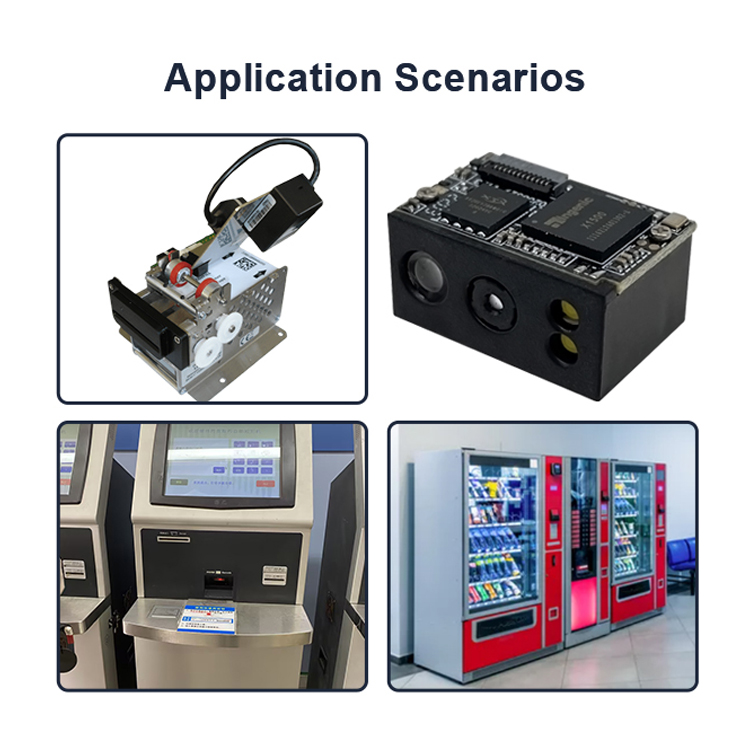

Application Scenarios
Vending Machine

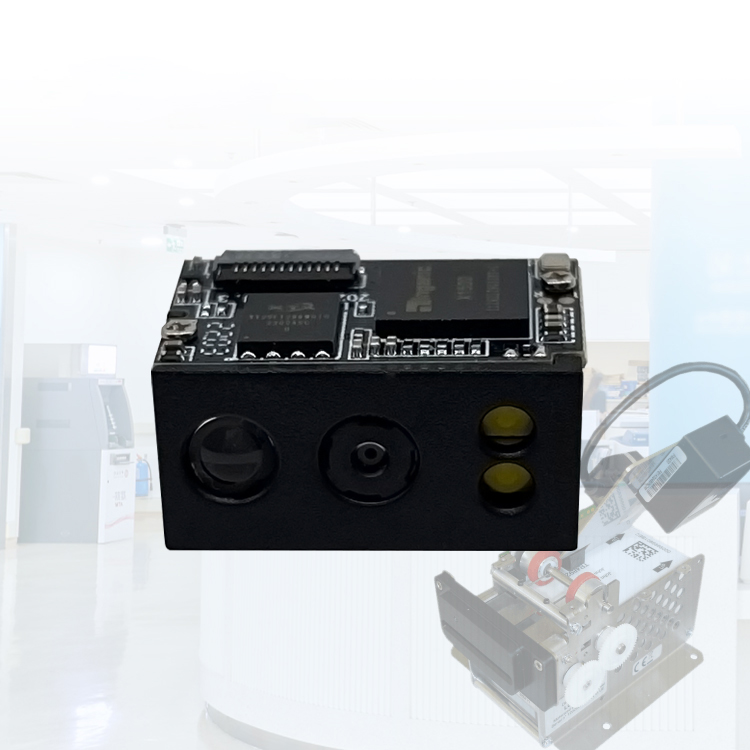

Kiosk
Barcode scanner
barcode scanner

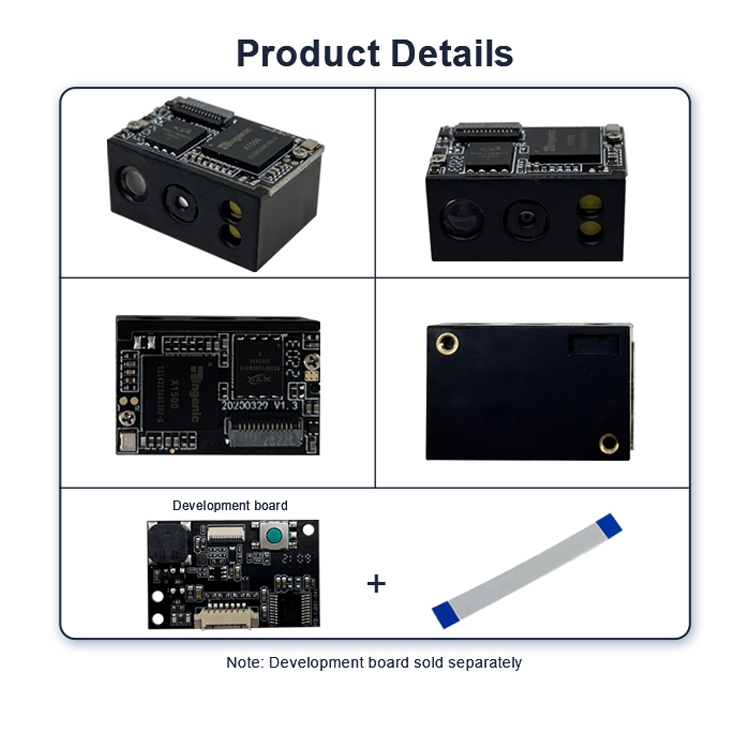

module details

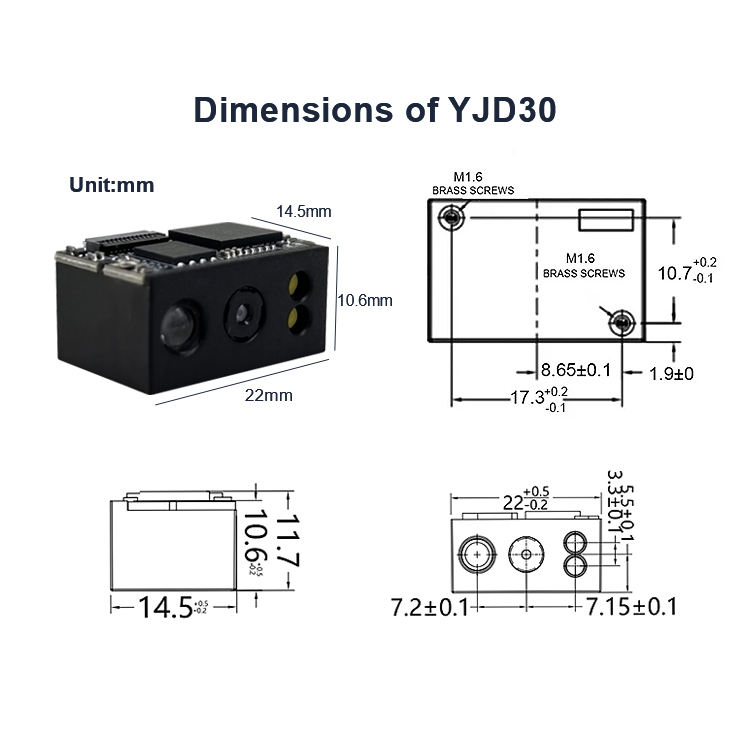

Dimensions
barcode scanner module
application scenarios

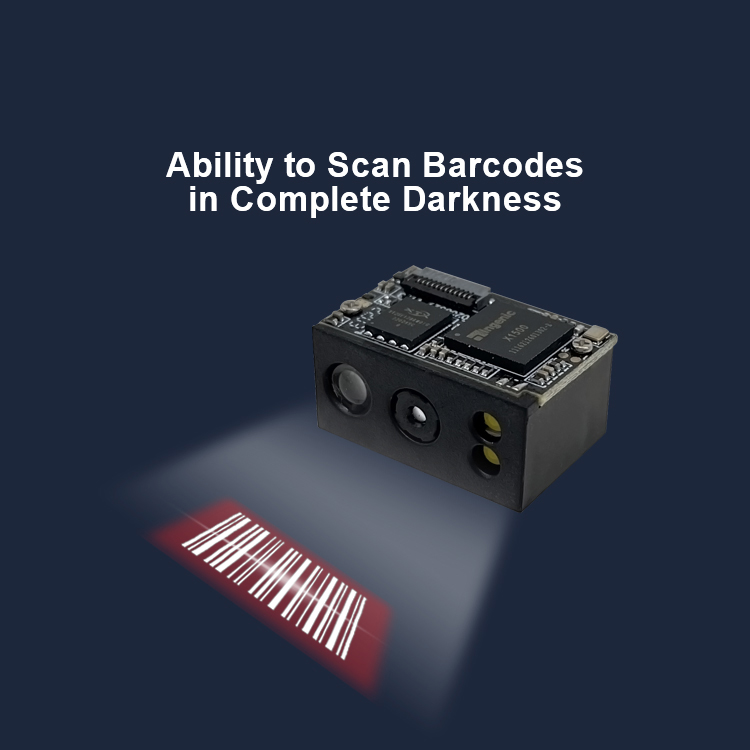

ability to scan barcode

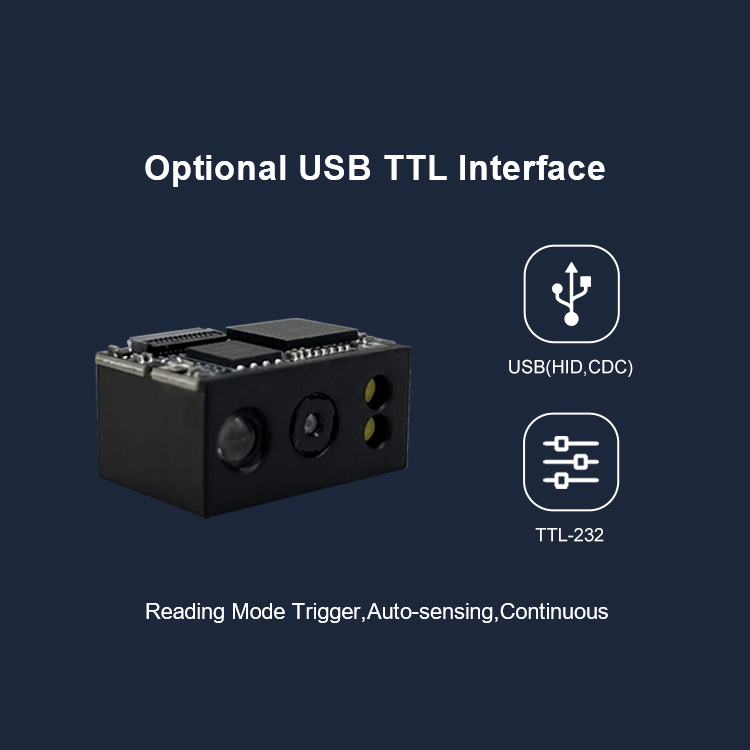

USB TTL interface
barcode reader
barcode scanner
module details
Dimensions
barcode scanner module
application scenarios
ability to scan barcode
USB TTL interface
Features
Specifications
PRODUCT FEATURES
• Advanced Decoding Capability:
1D&2D barcodes, matrix codes, stacked codes easily decoded.
• Plug-and-Play Integration:
Highly integrated, plug-and-play, no driver needed.
• Multi-System Compatibility:
Linux, Android, Windows XP, Win 7, Win 8, Win 10, MacOS compatibility.
• Intelligent Image Recognition Technology:
32-bit chip, patented image recognition for reflective, wrinkled, blurred, color barcodes. Works in strong and dark light.
• Anti-Interference Design:
Shields against coil, magnetic field, and wireless signal interference.
• High-Reliability Hardware:
Overcurrent, overvoltage, common mode interference, electrostatic protection.
• Flexible Development Support:
Serial port commands, SDK secondary development, with image acquisition, transfer, and upgrade functions.
PRODUCT ATTRIBUTES
Performance
Image Sensor640*480 CMOS
Symbologies

1D：

EAN-8、EAN-13、EAN-13 2 add-on、 EAN-13 5 add-on、ISSN、ISBN、UPC-A、UPC-E、Code 32、Code 39、

Code 39FULLASCII、Code 93、Code 128、Codabar、Industrial 2 of 5、Interleaved 2 of 5、Matrix 2

of 5、ISBT-128、GS1-128、GS1 DataBar（RSS14）、GS1 DataBar Limited、 GS1 DataBar Expanded

2D：

PDF417、MicroQR、 Data Matrix、QR-code、Aztec

Scanned Area

5mil  code39:7cm-11cm

UPC-13mil: 5m-32cm

20 mil  code39: 9cm-53cm

20 mil QR: 5cm-33c

System CompatibilityLinux，Android,Windows XP、7、8、10,MacOS
Scan ModeSelf-induction Scanning, Manual Button Scanning
Supported keyboards

English, French, Italian, German, Spanish, Turkish, Belgian (French), Portuguese-Portugal,

Portuguese-Brazil,etc.

Net weight3g
Size22mm*14.5mm*10.6mm
Communication interfaceUSB（Drive-free）、TTL
Operating voltage3.3V
Minimum recognition accuracyCode 39  5mil
Scannable barcode typePaper and film 1D-2D barcode; Mobile Phone and tablet screen 1D-2D barcode
Motion Tolerance2.2m/sec
Min. Symbol Contrast25%
Secondary DevelopmentSecondary Development
Bar code output editingSupport adding prefixes and suffixes
Scan AngleRoll±360°，Pitch±60°，Skew±70°
Drop ProtectionCan withstand 2 meters free fall 5 times
SealingIP54
Operating Temperature-20-55℃
Diagonal perspective55.4°(D) 42°(H) 31.2°(V)
Storage temperature range-20-60℃
Humidity5% to 95% (non-condensing)
Storage Humidity5% to 95% (non-condensing)
Ambient Light0-70000LUX
Man-machine interaction

debug connect 3.3V power ground, pull down Trigger pin LED and red location light will light

up after startup.

USB interface

Standby power:70mA/0.231W

Working:142mA/0.468W

Maximum working power: 160mA/0.528W

Serial port interface

Dormancy: 6mA/0.0198W

Standby power: 114mA/0.3762W

Working: 150mA/0.495W

Maximum working power: 186mA/0.6138W
