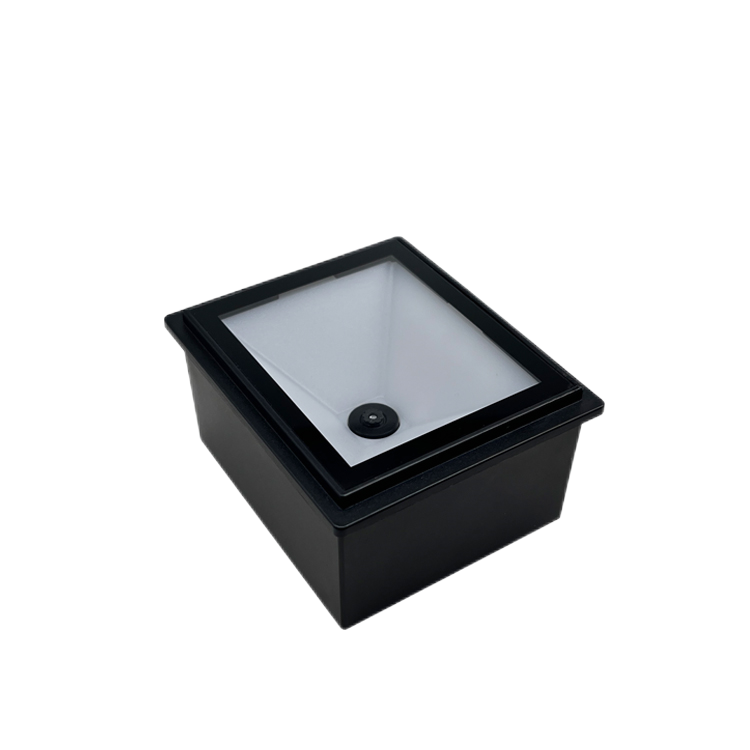

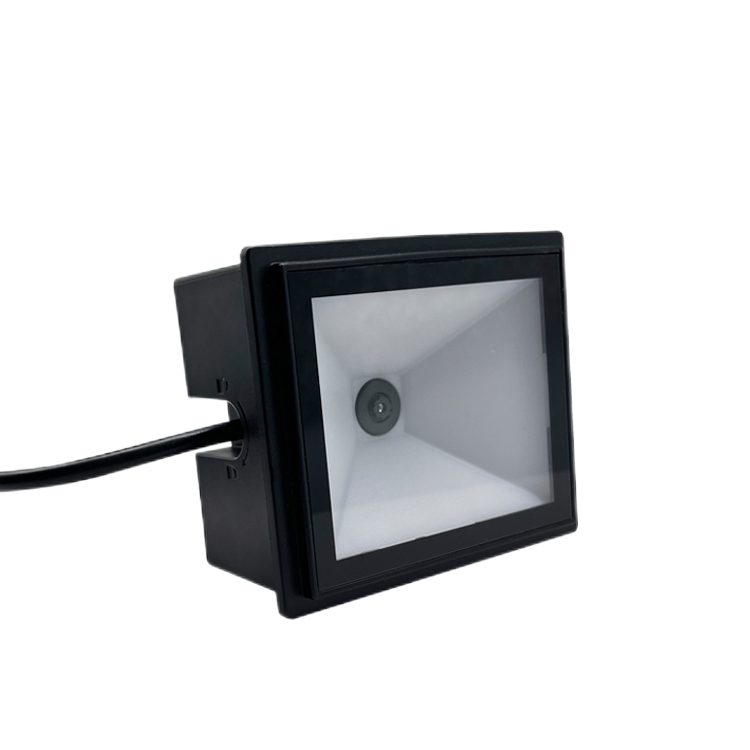

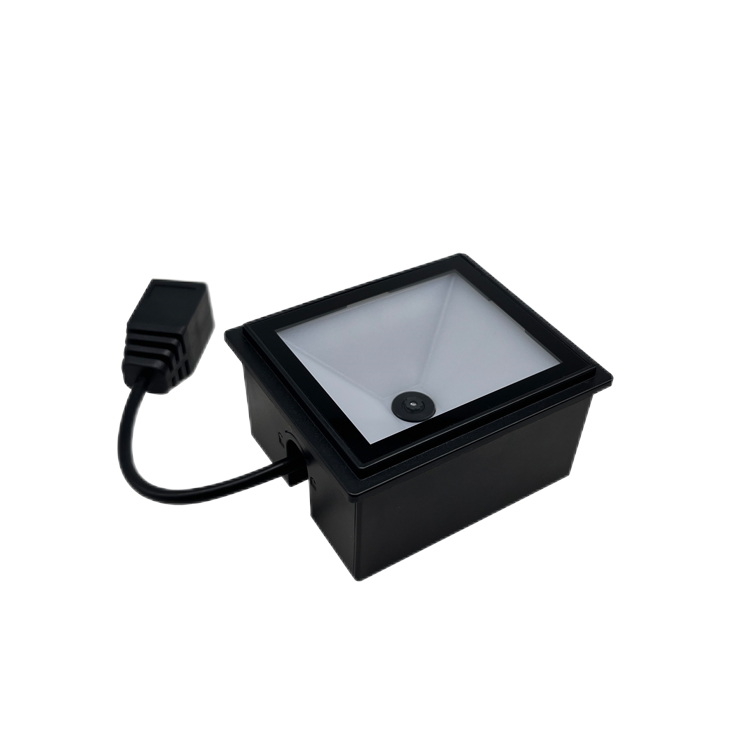

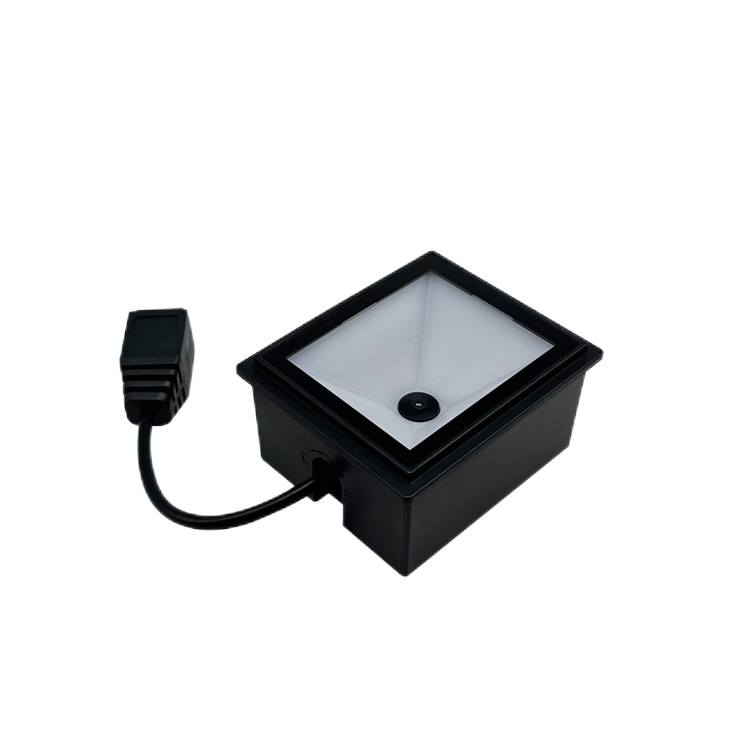

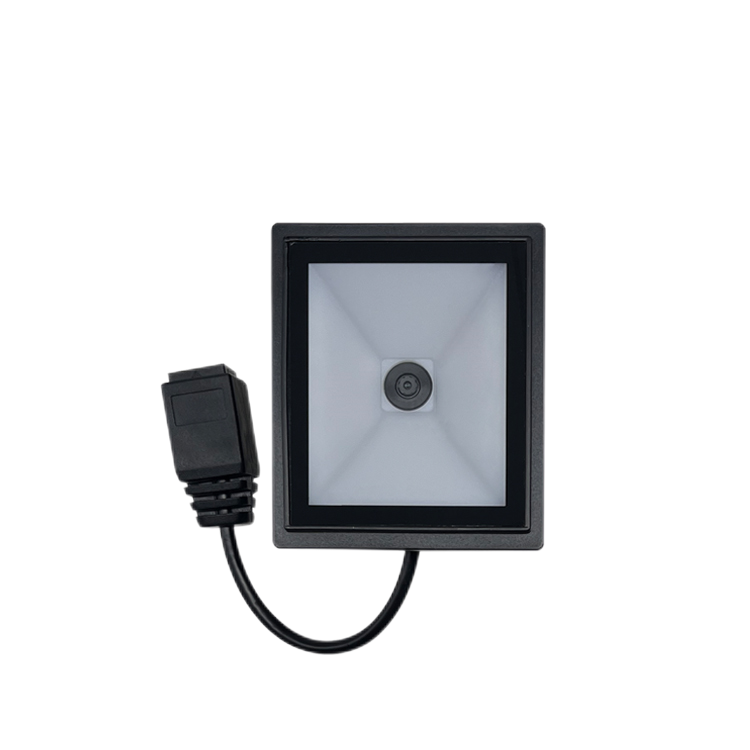

Y81
Contact UsProduct specifications
Image Sensor
640*480 Cmos
Illumination
White LED
Decode Capability
1D/2D
Resolution
≥5mil
FOV
Diagonal 87.1°，Horizontal 74°，Vertical 65°
Features
1D Barcode
2D Barcode
CMOS
USB
RS232
RS485
TTL
Wiegand
IP67
Applications
Access control
Parking lot
Self-checkout
Vending machine
Kiosk
Features
Specifications
PRODUCT FEATURES
• Cutting-Edge CMOS Sensor Technology
High-sensitivity, high-speed CMOS sensor ensures effortless reading of 1D and 2D codes on both paper and screens.
• Robust IP67 Rating
Boasting an IP67 rating, our device guarantees impeccable integrity and sealing, effectively preventing water droplets and dirt from compromising performance.
• Seamless Integration with SDK
Facilitates enhanced functionality through support for serial port commands and SDK secondary development, offering flexibility and customization options.
• Reliable Wireless Communication
Adopting the latest Bluetooth 5.0 technology, the NLS-HR2081-BT Handheld Scanner is able to maintain a reliable wireless connection to transmit data. The communication distances up to 50m.
PRODUCT ATTRIBUTES
| Image Sensor | 640*480 Coms |
| Illumination | White LED |
| Resolution | ≥5mil |
| Symbologies | 2D: PDF417,QR Code,Micro QR,Data Matrix,Aztec,Hanxi code |
| 1D: Codabar,Code 39,Code 32,Industrial 2 of 5,Interleaved 2 of 5,Standard 2 of 5,Matrix 2 of 5,Code 93,Code 11,Code 128,UPC A,UPC-E,EAN/JAN-8,EAN/JAN-13,GS1 DataBar(RSS14) | |
| Typical Decode Range | EAN-13 (13mil):5mm~90mm（Barcode Size：31mm*7mm） |
| PDF417 (6mil):5mm~55mm（Barcode Size：14mm*7mm） | |
| Code39 (6.6mil):18mm~45mm（Barcode Size：27mm*8mm） | |
| Data Matrix (10mil):5mm~60mm（Barcode Size：5mm*5mm） | |
| QR Code (15mil):5mm~80mm（Barcode Size：10mm*10mm） | |
| Min Print Contract | ≥20% |
| Scan Angle | Skew±70°，Pitch±70°，Roll 360° |
| FOV | Diagonal 87.1°，Horizontal 74°，Vertical 65° |
| Interface | USB、RS232 、RS485 、TTL、Wiegand |
| Dimension(mm) | 78(W)×66.2(D)×41(H)(Max) |
| Operating Voltage | 5VDC±5% |
| Power | 1400mW(Typical) |
| Current@5 VDC | Operating:280mA(RMS Typical)，300mA(RMS Max) |
| Standby:150mA | |
| Operating Temperature | 0℃~+60℃ |
| Storage Temperature | 40℃~+70℃ |
| Operating Humidity | 5%~95%（Non-Condensing） |
| Embient Light | 0~100,000LUX |
| Accessories Cable | USB: USB Cable |
| RS232: RS232 Cable | |
| TTL: TTL Cable |
