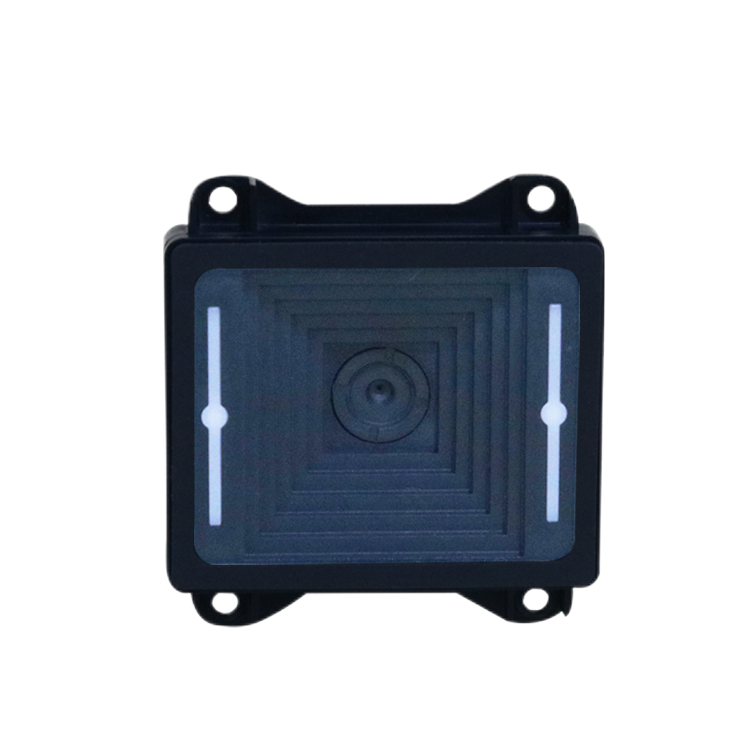

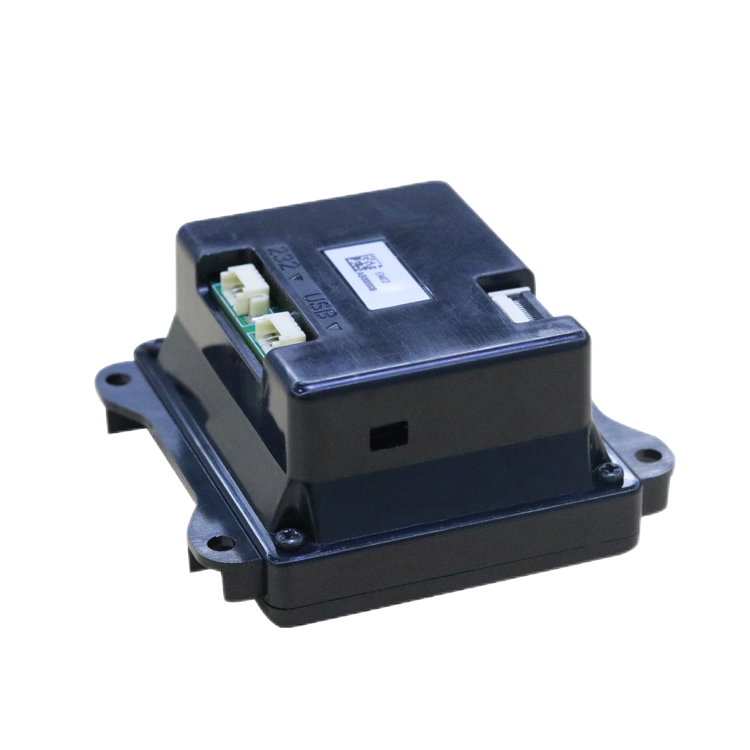

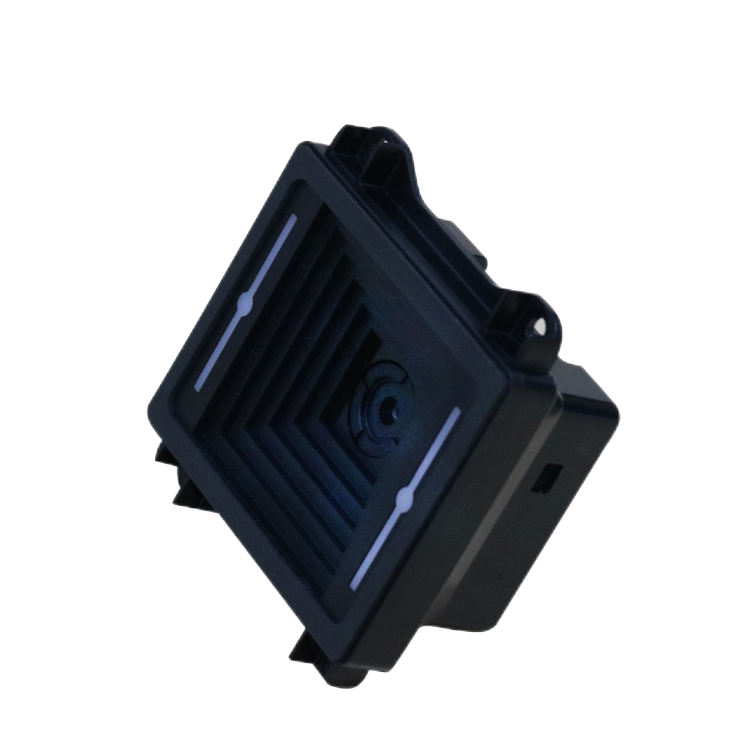

Home Products Barcode Scanner Barcode Scan Module / Engine for Parking Lot V68

V68

Product specifications

Image Sensor

1280*800 CMOS

Aiming

Paypal barcode: Bule, WeChat barcode : Green, Other Barcode : Red

Dimension

61*65.5*31mm

Weight

39g

Resolution

≥5mil

Field of View

Horizontal 41°, Vertical 26.3°

Features

1D Barcode

2D Barcode

CMOS

USB

RS232

TTL232

Applications

Access control

Parking lot

Features

Specifications

PRODUCT FEATURES

• Screen-Optimized Imaging Engine

Tailored for mobile payment codes, excelling in screen barcode decoding without the need for illumination.

• Extended Range Performance

Achieves remarkable 1-meter scanning capability, ideal for applications like parking lots and toll booths.

• Intelligent RGB Indicators

Integrated RGB indicators offer clear feedback, adapting colors for WeChat, Alipay, and other barcode types.

• Cutting-Edge Technology

Employs decoding core technology for rapid, high-quality barcode reading, coupled with excellent screen reading adaptability.

PRODUCT ATTRIBUTES


Image Sensor	1280*800 CMOS
Symbologies	2D:QR Code 1D:Code 128
Aiming	Paypal barcode: Bule WeChat barcode : Green Other Barcode : Red
Resolution	≥5mil
Typical Depth of Field	Mobile phone WeChat payment code: 100mm-1300mm 5.2inch Android phones 100mm-1350mm 4inch Apple-Phone 100mm-1900mm 5.5inch Apple-Phone
Symbol Contrast	≥30%
Scan Angle	Roll: 360°, Pitch: ±40°, Skew: ±45°
Field of View	Horizontal 41°, Vertical 26.3°
Interfaces	TTL-232，USB，RS-232
Dimensions (L×W×H)mm	61.5(W)×65.5(D)×31(H)mm
Weight	39g
Operating Voltage	12-pin FPC horizontal socket: 3.3-5 VDC±5% 4-pin Du-pont socket USB interface: 3.3-5 VDC±5% 4-pin Du-Pont socket RS232 interface: 3.3-5 VDC±5%
Rated power consumption	Operating (3.3V) 1023.7mW (typ.) Operating (5V) 1034.0mW (typ.)
Current@5VDC	Operating: 206.8mA (typical) 210.1mA (typical) Standby:56.7mA
Current@3.3VDC	Operating: 310.2mA(typical) 314.6mA (typical) Standby: 87mA
Operating temperature	-40℃~+70℃
Storage temperature	-40℃~+80℃
Humidity	5% to 95% (non-condensing)
Ambient Light	0~100,000lux (natural light)
Certificates & Protection	FCC Part15 Class B，CE EMC Class B
Development Boards	Development board with trigger buttons and buzzer with RS-232 and USB output

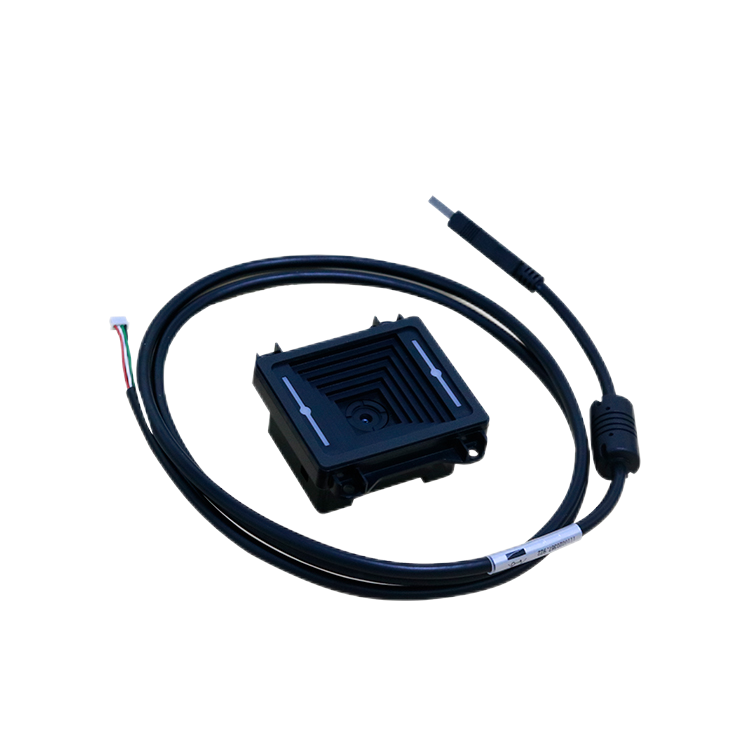

Cable	USB : 4pin USB data cable, used to connect the development board and the information receiving host FPC cable : 12pin FPC cable, used to connect the development board and the host computer RS-232 : RS-232 data cable, used to connect the development board and the information receiving host
Power Adapter	5V power adapter, with data cable to power the device
