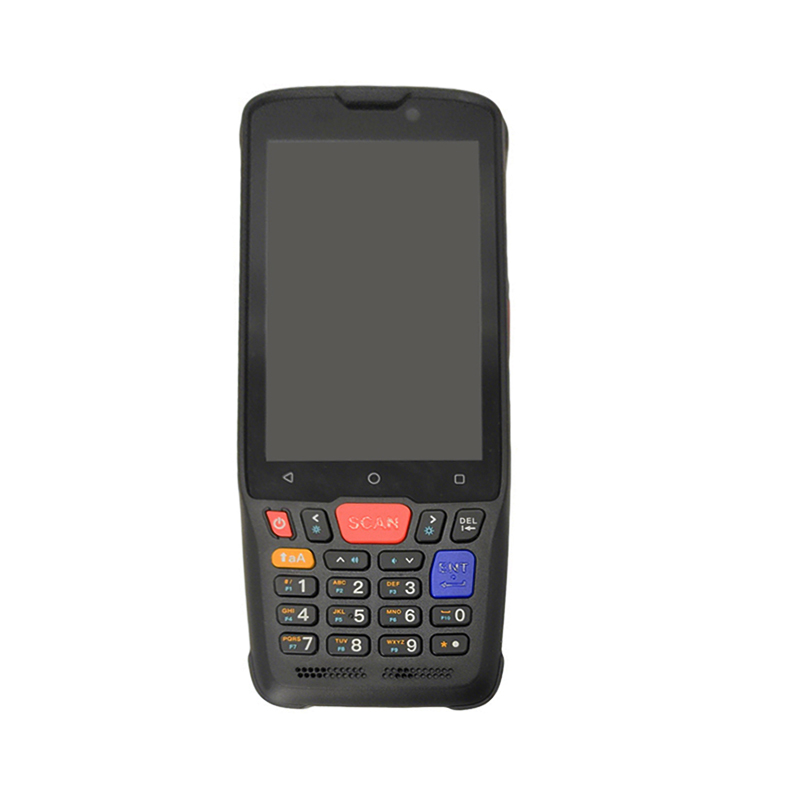

P2609
Contact UsProduct specifications
CPU
8 cores 2.0GHz
Interfaces
Android 14
RAM+ROM
3GB+32GB/4GB+64GB
Dimensions
165.86x67x19.22mm
Weight
279g（Battery included）
Features
2D
1D
Wifi
Bluetooth
Application Scenarios
Logistics Warehouse
Manufacturing
Public sector
Features
Specifications
PRODUCT FEATURES
• Screen impact resistance
1.1mm reinforced glass (compared to mobile phone materials) supports 1000 1-meter drops, 2000 0.5-meter drops, and 36 1.5-meter drops with zero breakage.
• Structural reinforcement
Metal frame+anti-collision angle design+high-performance PC+GF shell, passed continuous abnormal drop test.
• Button durability
The SCAN/ENT key adopts a wear-resistant process to ensure the reliability of high-frequency operation.
• Range and interaction optimization
5000mAh replaceable battery supports 15 hours of continuous operation, paired with intelligent power regulation technology (low-power screen+sound chamber design) to extend standby time.
PRODUCT ATTRIBUTES
| Performance Parameters | |
| Operating System | Android 14 |
| Memory | RAM: 3GB |
| Flash: 32GB | |
| CPU | 8 cores 2.0GHz |
| Interface | USB 2.0 Type-C for charging and data transfer |
| Physical Parameters | |
| Weight | 279g（Battery included） |
| Screen | 4 inches, resolution 800*480, IPSGFF capacitive screen, multi-touch |
| Battery | 5000 mAh, replaceable |
| Dimension | 165.86x67x19.22mm |
| Keyboard | 20-key numeric keypad, left and right scan keys to return, home, switch touch keys |
| GPS | GPS/Glonass/Galileo/Beidou,Assisted GPS |
| Camera | Main camera: autofocus, 8MP, flash |
| Front camera: fixed focus, 5MP | |
| Adapter | 5V2A adapter 100-240V AC 50/60HZ |
| Card Slot | SIM card slot: single card single standby, Nano SIM*1+TF*1 |
| SD card slot: MicroSD, up to 256GB | |
| Sensor | Gravity sensor (optional) Proximity sensor (optional) |
| Photosensor (optional) Hall sensor (optional) Status light | |
| Environmental Parameters | |
| Storage Temperature | -30℃ to 70℃ |
| Working Humidity | 5%-95% Non-condensing |
| Working temperature | -25°℃-+55°℃ |
| Electrostatic protection | 8K/15K |
| Protection Level | IP65 30 times on 1.5m steel floor, 60 times on 1.8m steel floor (with silicone sleeve) |
| 2000 times of 0.5m steel plate drop, 3000 times of 0.5m steel plate roller (with silicone sleeve) | |
| Wireless Communication | |
| Bluetooth | BLE V5.0 |
| WLAN | 802.11.a/b/g/n/ac |
| NFC | WiFi dual band radio; IPv4;IPv6 |
| Optional | |
| WWAN | 2G/3G/4G full network access |
| Voice | |
| Trumpet | At least 100db |
| Microphone | Dual microphone, noise reduction |
| Optional Accessories | |
| Host + battery charger, host quad charger, battery quad charger, battery, silicone case, wrist strap, shoulder strap | |
