M1910
Contact UsProduct specifications
Sensor
1280×800 CMOS
Reading Speed
60fps
Field of view
Horizontal 56°
Motion Tolerance
≤0.2m/s
International Certification
FC, RoHS, CE
Features
![](https://lonvillscan.com/upload/files/article/20240722/17216268606151643.png)
1D
![](https://lonvillscan.com/upload/files/article/20240722/17216268606074060.png)
2D
![](https://lonvillscan.com/upload/files/article/20240722/17216268608312089.png)
CMOS

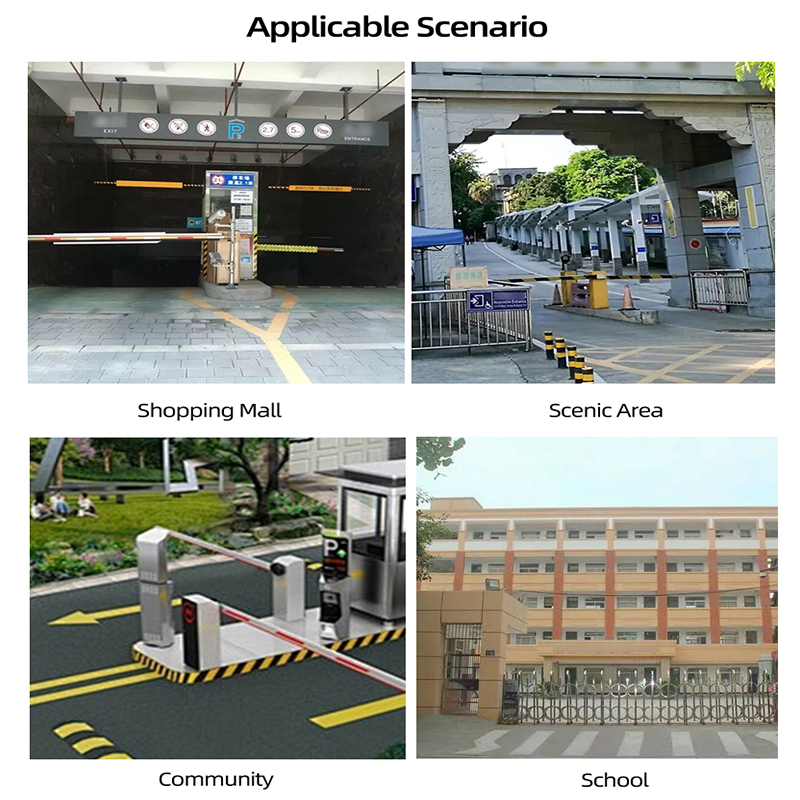

Application Scenarios
![](https://lonvillscan.com/upload/files/article/20240722/17216267897539316.png)
Access Control
![](https://lonvillscan.com/upload/files/article/20240722/17216267894126921.png)
Parking Lot
Features
Specifications
PRODUCT FEATURES

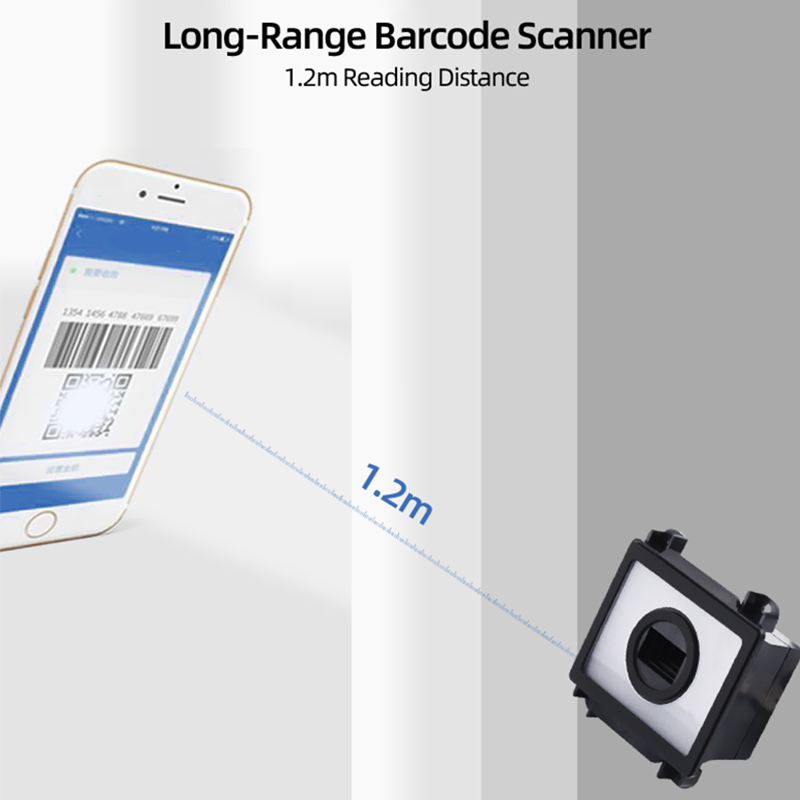

• Long-Range Barcode Scanner
1.2m Reading Distance.
• Wide-Angle Large Coverage
Measured scaning width of 50cm at a depth of field of 80cm.

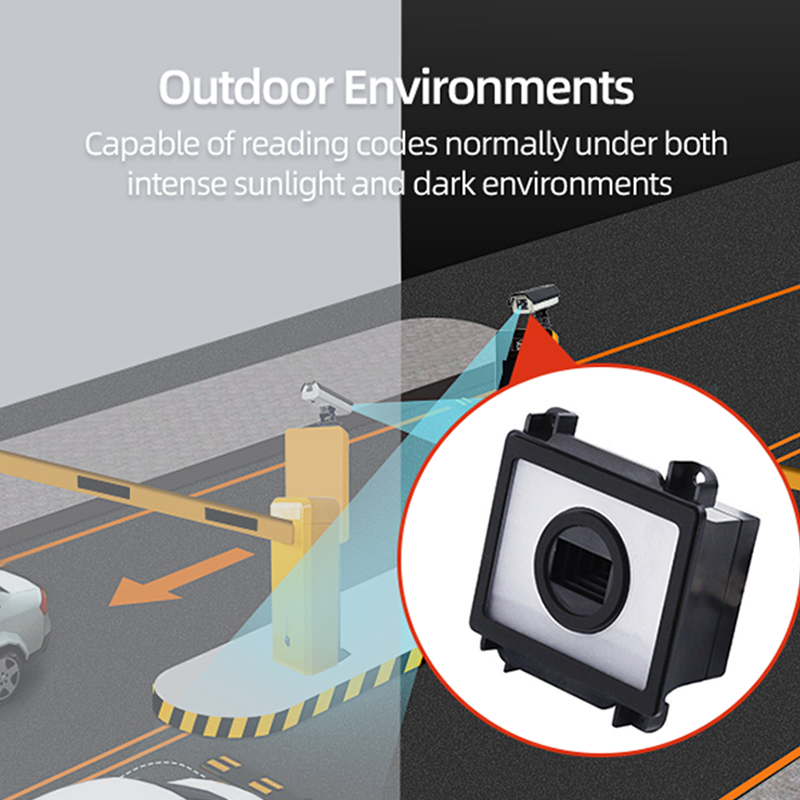

• Outdoor Environments
Capable of reading codes normally under both intense sunlight and dark environments.
• Industrial Components
The module consistently maintains normal barcode reading capability after being tested for a week in environments of -30°C and 70°C respectively.
PRODUCT ATTRIBUTES
Scan performance | Image Sensor | 1280×800 CMOS | |
Reading Speed | 60fps | ||
Illumination | White/Or customized Red, Green and Blue lED | ||
Synbologies | QR Code, Code128 | ||
Symbol Contrast | ≥20% | ||
Scan Angle | Roll 360°,Pitch±55°,Skew±60° | ||
Field of view | Horizontal 56° | ||
Motion Tolerance | ≤0.2m/s | ||
Mechanical/Electrical Parameters | Interface | USB、RS232、RS485、USB、TTL、GPIO、 Wiegand | |
Dimensions (mm) | 65×61×28mm | ||
Weight | 30g | ||
Operating Voltage | 3-3.6V or 3.6-16V | ||
Current | < 200mA(3.3V input),< 150mA(5V input) | ||
Environmental Parameters | Operating Temperature | -30℃~+70℃ | |
Storage Temperature | -40℃~+80℃ | ||
Operating Humidity | 5%~95%(No condensation) | ||
Ambient Lighting | 0~100,000LUX | ||
Thermal Shock Resistance | Maximum Temperature | 70 °C (140 °F) | |
Lowest Temperature | -30 °C (-4 °F) | ||
Number of Cycles | 30min high temperature; 30min low temperature | ||
Cycle | 24 | ||
Mechanical Impact Resistance | Vibration | 2000 G, 0.7 ms, half sinus, 3 axes | |
Drop | Can withstand a 1.2m drop to the concrete floor | ||
Certificate | International Certification | FC RoHS CE |
