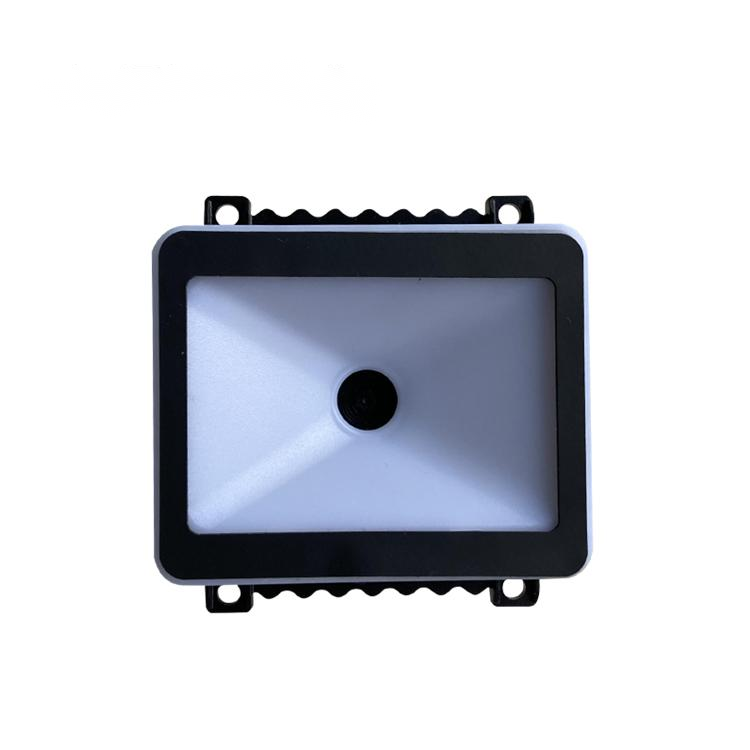

M1605
Contact UsProduct specifications
Sensor
640*480 CMOS
Field of view
Horizontal 65º, Diagonal 80º, Vertical 51º
Scan Speed
50ms
Accuracy
6mil
Scan Mode
Auto sensing/continuous/trigger
Features
CMOS
1D Barcode
2D Barcode
USB
Micro-USB
RS232
RS485
TTL
Applications
Vending Machine
Kiosk
Retail
Features
Specifications
PRODUCT FEATURES
• Ultra-thin design
Less than 29mm thick, suitable for embedding
• Quick response
Capable of reading 1D/2D codes on paper and screen
• Optional interfaces
RS232/USB/Micro-USB/TTL/RS485
• Two-color Indicating light
White & green Indicating light for intuitive and efficient operation
PRODUCT ATTRIBUTES
| Sensor | 640*480 CMOS |
| Field of view | Horizontal 65º, Opposite 80º, Vertical 51º |
| Scan Speed | 50ms |
| Decode Capacity | 2D: QR code 1D: UPC, EAN, Code 128, Code 32, Code 39 |
| Accuracy | 6mil |
| Scan Distance | UPC-A (16 mil) : 3cm-11cm QR code (payment code) : 2cm-22cm |
| Print Contrast | ≥25% |
| Scan Angle | Roll ⼠360°, Skew ⼠55°, Pitch ⼠55° |
| Scan Mode | Auto sensing/continuous/trigger |
| Interface | RS232, USB, Micro-USB,TTL, RS485 |
| Dimensions | 65mm*64mm*30mm |
| Weight | 41g |
| Indicator | LED light (white, green) |
| Operating Voltage | 4.75V-12.6V/3.0V-3.6V |
| Power consumption | 0.675W (5V)/ 0.62W (3.3V) |
| Operating Current | 135mA (5V) / 188mA(3.3V) |
| Standby Current | 62mA (5V) / 65mA(3.3V) |
| Indicator | LED light (white, green) |
| Operating Temp. | 0°C to 60°C |
| Humidity | 5%-95% (no-consdensing) |
| Storage Temp. | -30°C to 70°C |
| Ambient Light Immunity | 0-100,000Lux |
