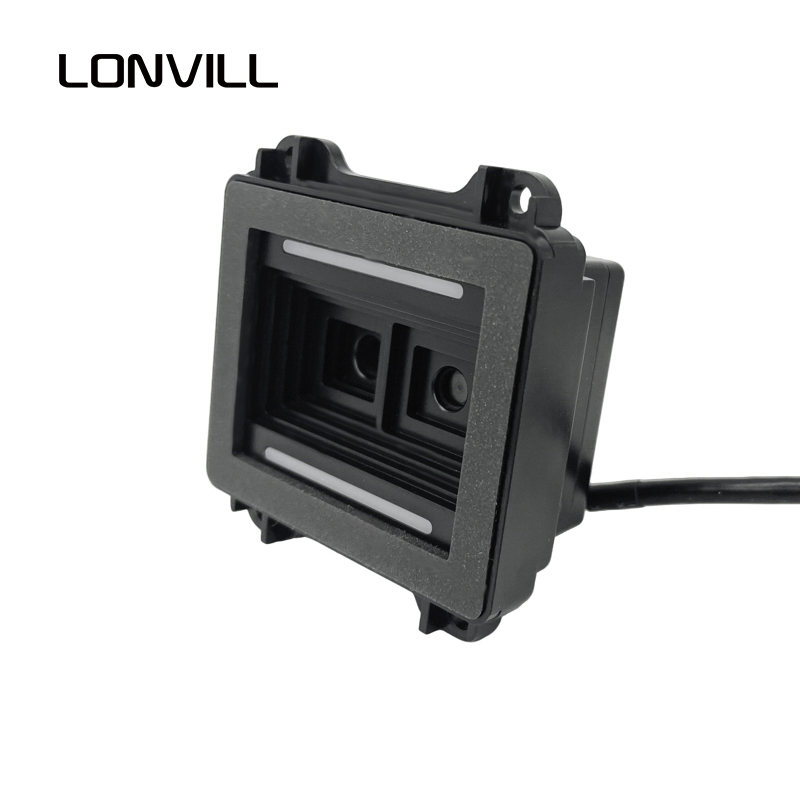

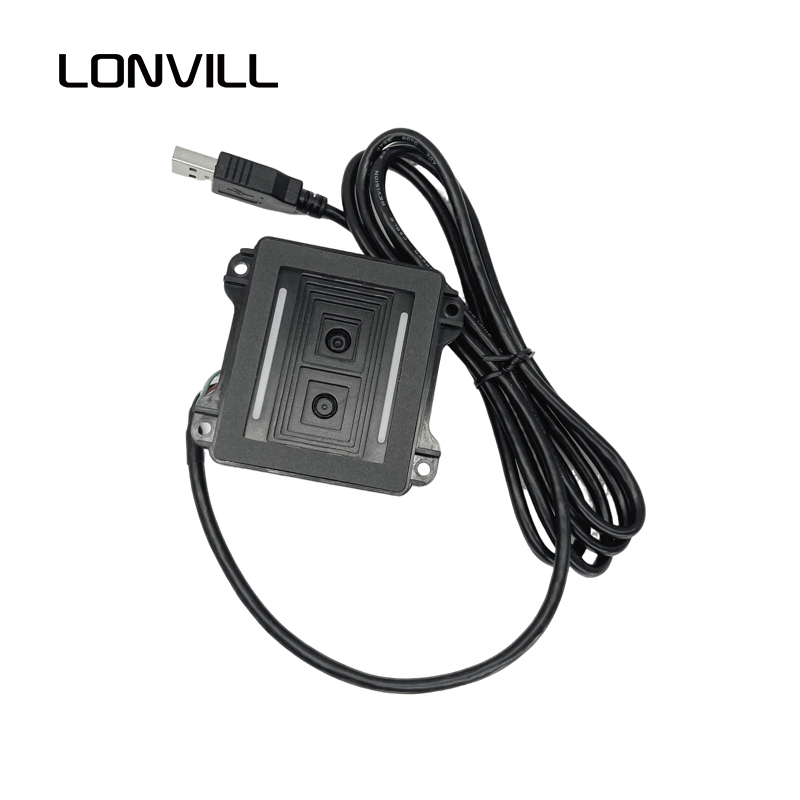

M1508
Contact UsProduct specifications
Motion tolerance
130cm/s
Dimensions
65mm×61mm×31mm
USB, TTL, RS232, RS485, Ethernet
Interface
Payment Code 2.5-200cm
Sensor
CMOS sensor,pixels: 0.3M+1M Global Shutter
Features
1D
2D
CMOS
USB
RS232
RS485
Ethernet
TTL232

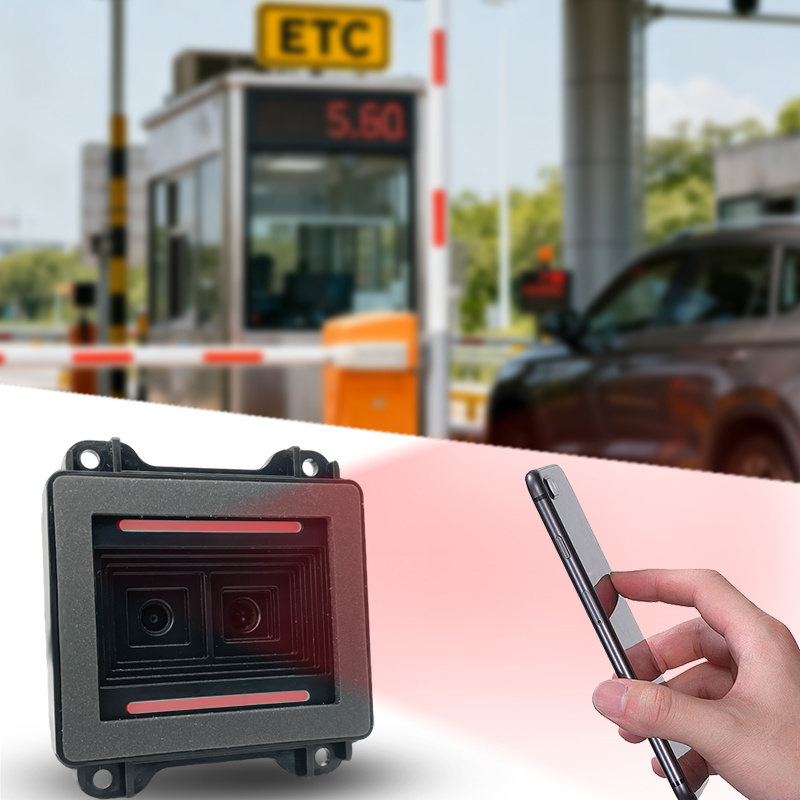

Application Scenarios

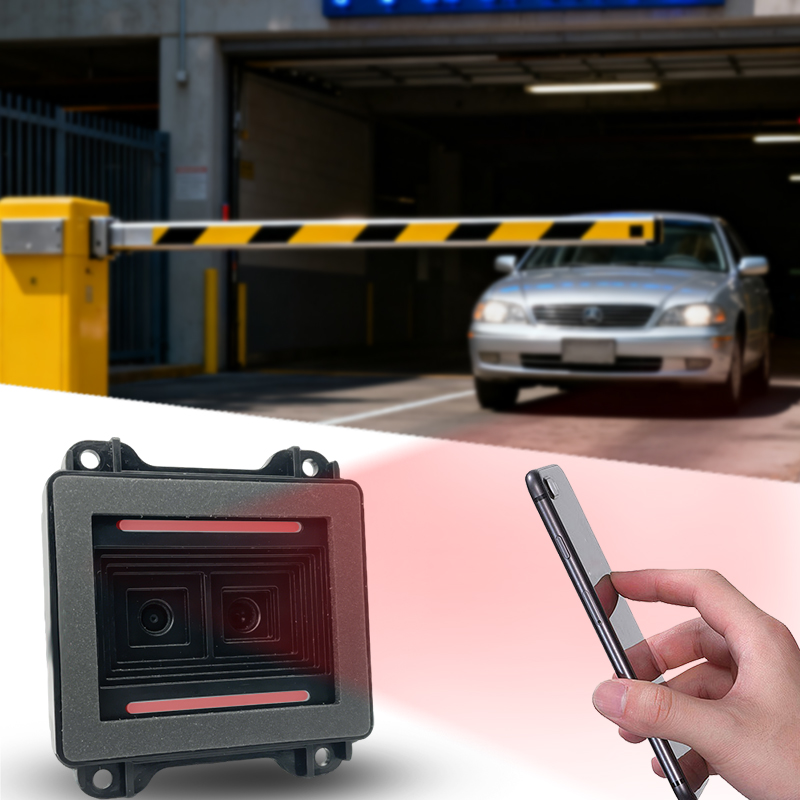

Parking lot
Features
Specifications
PRODUCT FEATURES
• Dual Recognition Engine Design
Wider reading angle, greater reading depth, QR codes for mobile payment in various environments, other customized mobile QR codes, and paper QR codes.
• Long Range 2D Scanner
Core decoding technology, built-in AI algorithm support, can recognize depth of field up to 2m meters.
• Eye-Safe
No laser light source was used, only white light-emitting diodes (LEDs) were used for illumination. These LEDs are commonly found in
The wavelength range of light emitted during use is safe.
• Automatic Sensor Lighting and Fill Light
Whether in bright or dark environments, it can recognize code systems and "scan and pass" at any time.
PRODUCT ATTRIBUTES
| Parameters | |
| Sensor | CMOS sensor,pixels: 0.3M+1M Global Shutter |
| Illumination | RED LED |
| Roll/Pitch/Skew | 360°/±65°/±69° |
| Motion Tolerance | Up to 130.83cm per second for 48mil QR |
| Voltage/Current | 5.0VDC±5%/211mA(Max), 193mA |
| Code | 1D: Codabar,Code 128,EAN128,ISBT128,Code 39, Code 32,Code 93,Interleaved 2 of 5,Industrial 2 of 5,EAN-13,ISBN/ISSN,EAN-8,UPC-A,UPC-E,UPC-E1,Matrix 2 of 5,GS1 Databar,GS1 Databar Limited,MSI Plessey,Standard 2 of 5 2D: QR Code,Data Matrix,PDF417 |
| Typical Performance | 49mil QR (2.5-130cm) 86mil QR (5-50cm) 45mil QR (4-16cm) |
| Field of view angle | Near: 59° x 46°, Far: 43° x 27° |
| Communication | 130.83cm/s |
| Interface | USB, TTL, RS232, RS485, Ethernet |
| Trigger mode | Command trigger, continuous trigger |
| Overall dimensions | 65mm x 61mm x 31mm |
| Indication method | Buzzer, status indicator light |
| Working voltage | 5.0VDC±5% |
| Operating temperature | -20°C ~ +60°C |
| Storage temperature | -40°C ~ +85°C |
| Humidity | 5% ~ 95%（non-condensing） |
| Environmental illuminance | 0 - 100,000 LUX |
| Factory default settings： | |
| Interface | USB HID、RS485、USB COM 和 TTL UART， RS232, Ethernet |
| Enabled Codes | 1D:Code 128 2D: QR Code |
