M1507
Contact UsProduct specifications
Motion tolerance
160cm/s
Weight
150g

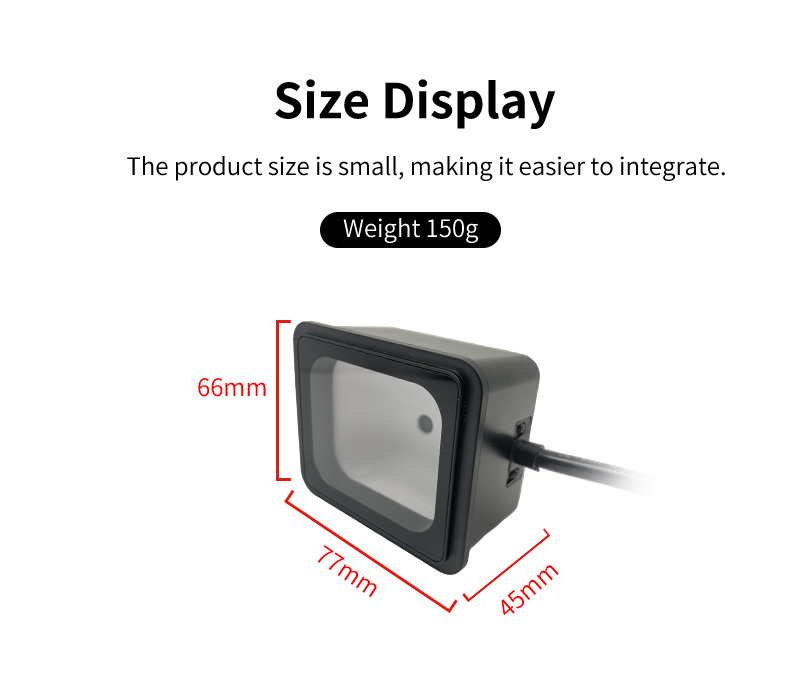

Dimensions
66mm×77mm×45mm
Image Sensor
640*480，120FPS
Physical Interface
Ethernet,RS232,DC,Relay
NFC Protocol
IEC 14443 TypeA, IEC 14443 TypeB
Features
1D
2D
CMOS
RS232
Ethernet
Application Scenarios
Turnstile
Vending machine
Features
Specifications
PRODUCT FEATURES
• Integrated Code and Card Reader
Supports NFC function and various IC card types.
NFC supports reading access control cards, bank cards, bus passes, ID cards, and various other protocol cards;

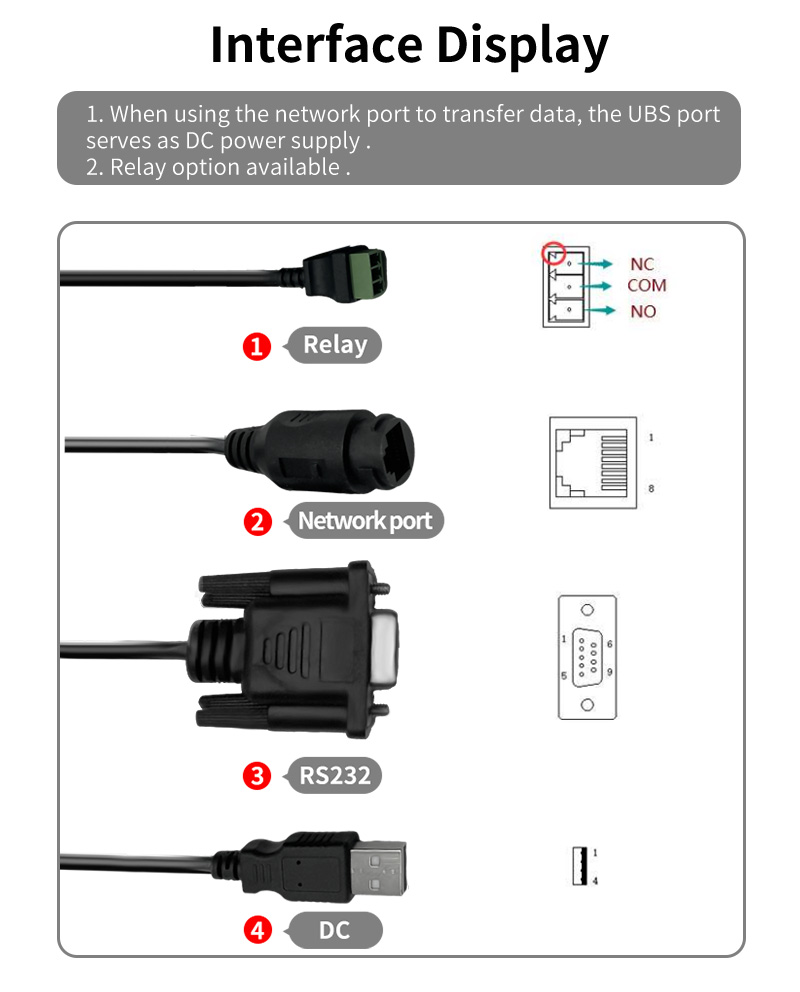

• Interface Display

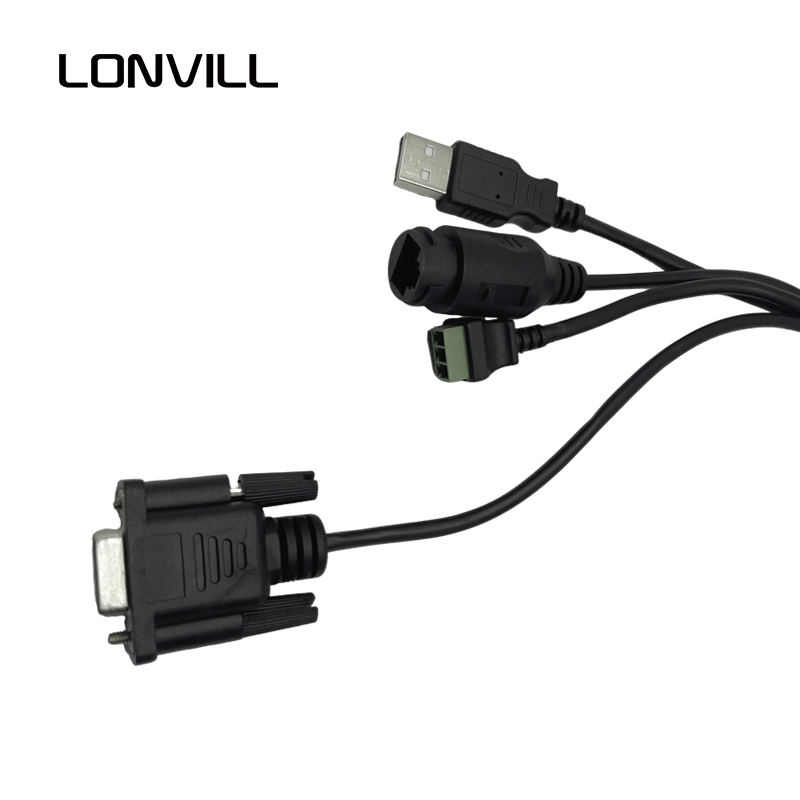

relay, network port, RS232, DC
1. When using the network port to transfer data, the USB port serves as DC power supply
2. Relay option available
• Waterproof Embedded Barcode Reader
IP66, the assembly design uses a glue application process, which effectively prevents dust and water ingress, meeting outdoor usage conditions.
• Wide Field of View
Field of view: Horizontal 72 ° Vertical 57 °
• Other features
Supports multiple barcode scanning modes, with a reading accuracy of ≥ 4mil, fast decoding, and can reach 160cm/s
• Main Application Scenarios
1. Turnstile
2. Automatic Vending Machine
PRODUCT ATTRIBUTES
| Physical/Electrical Parameters | |

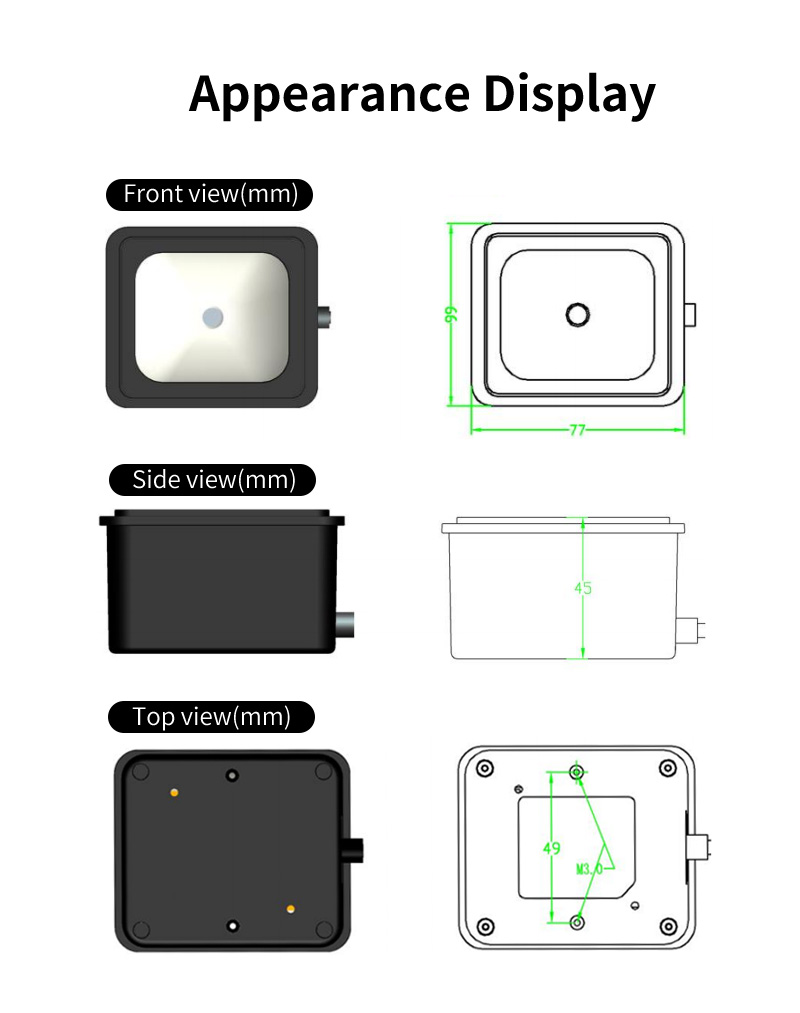

| Appearance Size | 66mm×77mm×45mm |
| Weight | 150g |
| Notification Method | Buzzer, LED indicator |
| Trigger Method | Command trigger, automatic sensor trigger, continuous trigger |
| Setting Method | Scan code settings, command settings |
| Physical Interface | Ethernet，RS232,DC,Relay |
| Communication Interface | TTL-232, USB HID keyboard, USB virtual serial port |
| Working Voltage | DC 4.5-16V power supply |
| Current (5V) | 165mA(Max)，138mA(Working), 123mA(Standby)，74.5mA(Sleeping) |
| Performance Parameters | |
| Image Sensor | 640×480，120FPS |
| Lighting | White LED |
| Data Encryption | DES/RSA |
| Field of view | Horizontal 72°，Vertical 57° |
| Reading Angle | Roll 360°，Pitch±49°，Skew±49° |
| Print Contrast | ≥10% reflection difference |
| Motion tolerance | 160cm/s |
| Recognition Accuracy | ≥4mil |
| Code Reading System | 1D: Codebar,Code 128（GS1-128）,Code 39,Code 93,Interleaved 2 of 5（ITF-14、ITF-16）,Industrial 2 of 5,EAN-13（ISBN,ISSN,JAN-8,JAN-13）,EAN-8,UPC-A,UPC-E,UPC-E1,Matrix 2 of 5,Code 11,MSI Plessey,GS1 Databar,GS1 Databar Expanded,GS1 Databar Limited,Stabdard 2 0f 5 |
| 2D: QR Code,Micro QR code, Data Matrix, PDF417 | |
| Reading Depth of Field | 8mil QR (0-36mm) (45chars) 5mil code39 (0-26mm)(10chars) 13mil code128（2-120mm）(12chars) 33mil QR (0mm-135)(18chars) |
| NFC Protocol | IEC 14443 TypeA, IEC 14443 TypeB |
| Environmental Parameters | |
| Working Temperature | -20°C~ +50°C |
| Storage Temperature | -40°C~ +70°C |
| Working Humidity | 5% ~ 95%(Non-condensable) |
| Ambient Light Intensity | 0~100,000 LUX |
