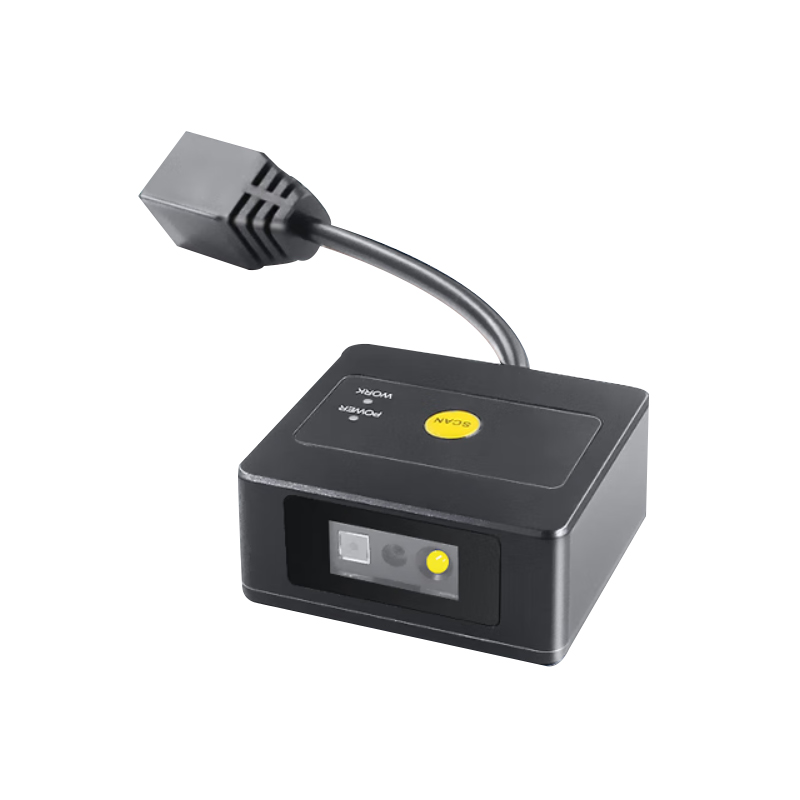

Home Products Barcode Scanner Barcode Scan Module / Engine for Smart Locker M0108

M0108

Product specifications

Image Sensor

1280*800 CMOS

Minimum Accuracy

5 mil

Dimension

55.5mm*50.5mm*24mm

Weight

164g

Sealing

IP54

Anti-fall

Can withstand 2 meters free fall drop 5 times

interface

USB port (drive-free), USB virtual serial port (driver installation), serial port

Features

1D Barcode

2D Barcode

CMOS

USB

IP54

Serial port

Applications

Vending Machine

Kiosk

Features

Specifications

PRODUCT FEATURES

• Customizable Development

Utilize serial commands and SDK for hardware, optical, algorithm, and embedded customization.

• High-Speed Recognition

Rapidly identify screen and paper barcodes with a high-sensitivity 1280*800 COMS sensor.

• Adaptive Design

Zinc alloy shell and low-power design enable continuous operation in both low and high-temperature environments.

• Dual Optical Sensing Technology

Unique technology for fast, precise distance sensing, even in dark environments, ensuring quick and accurate wake-up responses.

PRODUCT ATTRIBUTES


Performance Parameters
Imaging sensor	1280*800 CMOS
Symbologies	EAN-8,EAN-13,EAN-13 2 add-on, EAN-13 5 add-on,ISSN,ISBN,UPC-A,UPC-E,Code 11,Code 32,Code 39,Code 39FULLASCII,Code 93,Code 128,Codabar,Industrial 2 of 5,Interleaved 2 of 5,Matrix 2 of 5,ISBT-128,GS1-128,GS1 DataBar（RSS14）, GS1 DataBar Limited,GS1 DataBar Expanded,MSI,Febraban
	PDF417,MicroPDF417,MicroQR, Data Matrix,QRCode,Aztec
Minimum Accuracy	Code 39 Code of 5 mil
Scanning modes	Automatic induction scan, manual button scan
System compatibility	Linux，Android，Windows XP ,7,8, 10，Macos
Motion Tolerance	4 m / sec
Minimum Print Contrast	25%
Scan Angle	Rotation angle ± 360°, elevation angle ± 60°, declination angle ± 70°
Support keyboard language	American-English, French-French, Italian, Italian (142) German, Spanish, Finnish, Japanese, Russian, Arabic, Irish, Polish, Dutch, Czech, Portuguese (Portugal, Brazil), Swedish, Turkey F, Turkey, Q, Greek, Belgium-French, British-English
Typical Decode Range	code39 5mil:9cm-24cm
	UPC 13mil:4cm-58cm
	code39 20mil:8cm-65cm
	QR Code 20mil:1cm-40cm
Enviromental parameter
Anti-fall	Can withstand 2 meters free fall drop 5 times
Waterproof and dustproof	IP54
Operating temperature	-20~55℃
Storage temperature	-20~60℃
Electrical parameters
Voltage	5 V
Interface	USB port (drive-free), USB virtual serial port (installation driver), serial port
Physical parameters
Net host weight / including package weight	164g/300g
Host dimensions / including package dimensions	55.5mm50.5mm24mm/188.1mm * 105mm * 51mm (length * width * height mm)
Data line length	180CM(±3CM)
