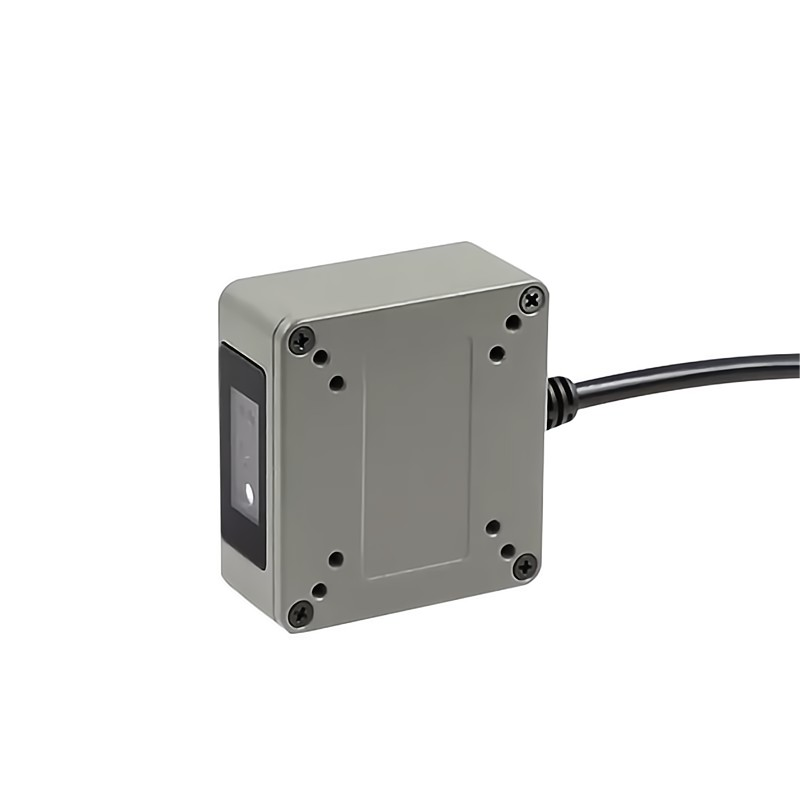

Home Products Barcode Scanner Barcode Scan Module / Engine for Smart Locker M0105

M0105

Product specifications

Image Sensor

640 * 480 CMOS

lllumination

White LED

Aimer

Red LED

Resolution

≥5mil

Scanning modes

auto-sensing scanning, manual scanning

Features

1D Barcode

2D Barcode

CMOS

USB

RS232

TTL

IP54

Applications

Access control

Vending Machine

Kiosk

Features

Specifications

PRODUCT FEATURES

• Support for Secondary Development

The product allows for secondary development through serial port commands and SDK, enabling customization in hardware, optical, algorithm, and embedded aspects.

• High-Speed Recognition

It is equipped with a high-sensitivity COMS sensor, enabling rapid identification of both screen and paper barcodes, long and thin barcodes at close range .ing.

• Good Environmental Adaptability

The device is designed with a zinc alloy shell and low-power consumption, making it suitable for continuous operation in a wide range of temperatures, from low to high.

• Custom Dual Optical Sensing Technology

The product supports unique dual optical sensing technology, allowing for fast and accurate distance sensing wake-up even in dark environments(Customization required).

PRODUCT ATTRIBUTES


lmage Sensor	640*480 Cmos
lllumination	White LED
Aimer	Red LED
Symbologies	2D: PDF417,Micro PDF417,QR Code,Micro QR,Data Matrix,Aztec,Hanxi code.
	1D:Codabar,Code 39,Code 32,Interleaved 2 of 5,Industrial 2 of 5,Matrix 2 of 5,Code 93,Code 11,Code 128,GS1-128,ISBT 128,UPC-A,UPC-E),(EAN/JAN-8,EAN/JAN-13,Qlessey,GS1 DataBar(RSS14),Standard 2 of 5,Msiplessey,etc.
Resolution	≥5mil （Code 39)
Scanning modes	auto-sensing scanning, manual key scanning
System Compatibility	:Linux, Android, Windows XP, 7, 8, 10, Mac OS
Motion Tolerance	2.2 metres/second
Keyboard languages supported	English, French, Italian, German, Spanish, Turkish Q, Belgian (French), Portuguese - Portugal, Portuguese - Brazil
Typical Decode Range	EAN-13(13mil): 45mm~200mm
	UPC(13mil): 50mm~320mm
	PDF417 (6mil):30mm~135mm
	Code39 (5mil):70mm~110mm
	code39(20 mil):90mm~530mm
	Data Matrix(10mil): 30mm~140mm
	QR Code (15mil):30mm~200mm
	QR Code (20mil):50mm~330mm
Min Print Contract	25%
Scan Angle	Skew±70°,Pitch ±70°,Roll 360°
FOV	Horizontal 41°,Vertical 31°
Interface	USB、RS232、TTL
Dimension(mm)	55.5(W)×50.5(D)×24(H)
Operating Voltage	5 VDC±5%
Power Current@3.3VDC Operating	800mW(Typical)
Current@3.3VDC	Operating:160mA(RMS Typical),300mA(RMS Max)
	Standby:120mA
Drop resistance	Can withstand 2 metres free fall 5 times
Waterproof and dustproof	IP54 standard
Operating Temperature	-10℃~+60℃
Storage Temperature	-20℃~+60℃
Humidity	5%~95%(Non-Condesing)
Embient Light	0~100,000LUX
