Home Products Barcode Scanner Barcode Scan Module / Engine for Parking Lot LV4000

LV4000

Product specifications

Pixel

1.3 megapixels

Weight

3.5g

Size (L*W*H mm)

15.8* 21.4*11.6mm

Symbol Contrast

≥20%

Decoding speed

65cm/s

Symbol Contrast

≥20%

Features

CMOS

USB

TTL

Application Scenarios

Parking Lot

Features

Specifications

PRODUCT FEATURES

• Advanced Imaging Technology:

Boasts advanced CMOS image recognition technology and an intelligent image recognition system.

• Integrated 1-Megapixel HD Camera:

Equipped with a 1-megapixel global HD camera with built-in laser crosshair aiming for strong penetration.

• Versatile Reading Capabilities:

Exhibits exceptional long-range reading performance, effortlessly decoding barcodes on various surfaces.

• Compact Integration Design:

Compact design with built-in fixing holes facilitates easy integration into a variety of devices.

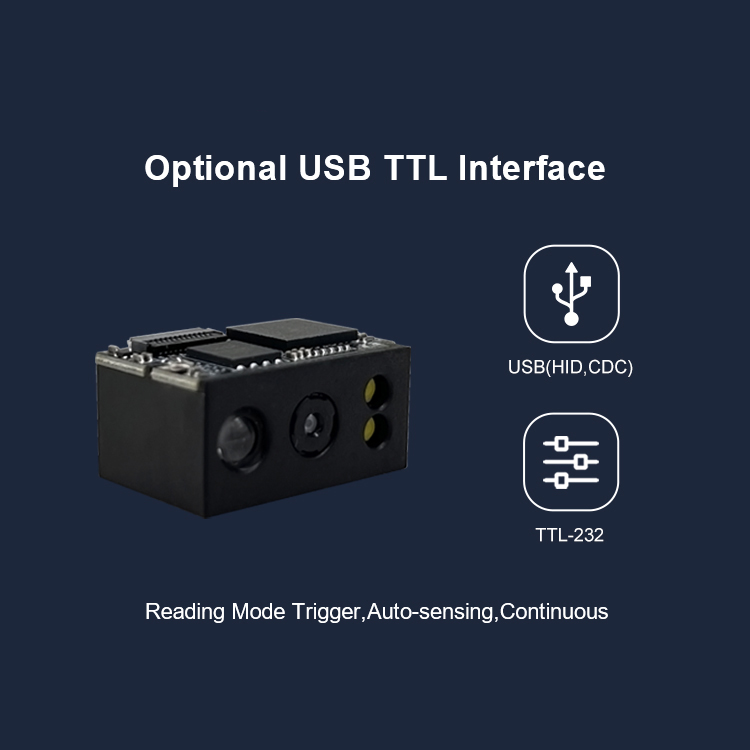

• Multiple Interface Options:

Offers various interface options, including USB-KBW, USB-COM, and TTL, catering to diverse application scenarios.

• Superior Barcode Recognition:

Demonstrates excellent reading performance on mainstream 1D and 2D barcodes, regardless of surface type.

• High-Definition Camera Module:

Features an HD camera module enabling the decoding of smaller, content-rich 1D and 2D barcodes.

• Flexible Operating Modes:

Supports multiple operating modes (manual, sensing, command control) to meet different reading requirements.

• Laser Aiming for Precision:

Laser aiming ensures clear visibility and strong penetration capabilities, enhancing precision day or night.

• Extended Reading Range:

Achieves effortless barcode recognition at distances exceeding 1 meter.

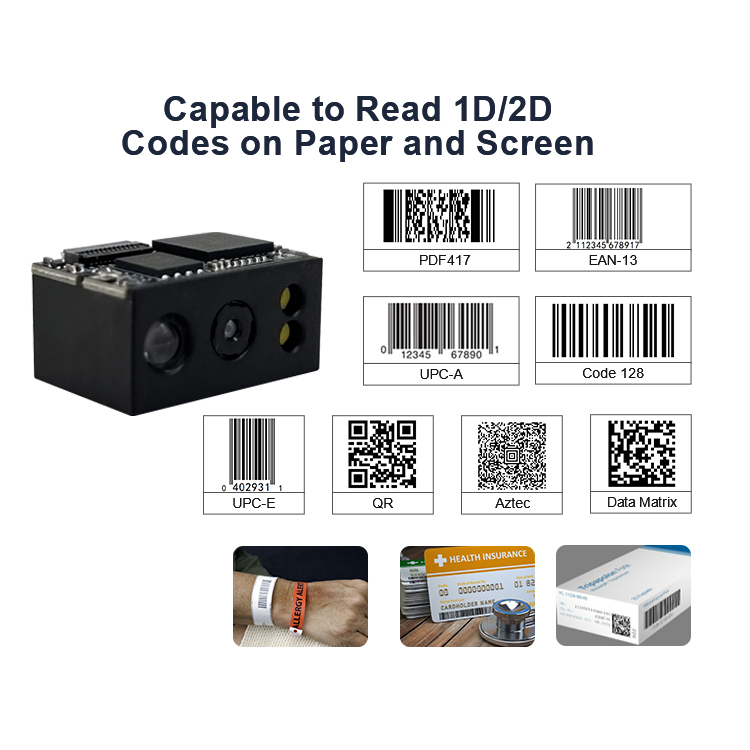

• Decodes Over 23 Types of Barcodes:

Supports various common 1D/2D codes such as UPC, EAN, PDF417, QR codes, configurable for special barcodes via scanning "configuration code."

• Onboard Connectivity Options:

Features onboard micro USB and TTL serial port, facilitating easy connection to computers or embedded devices.

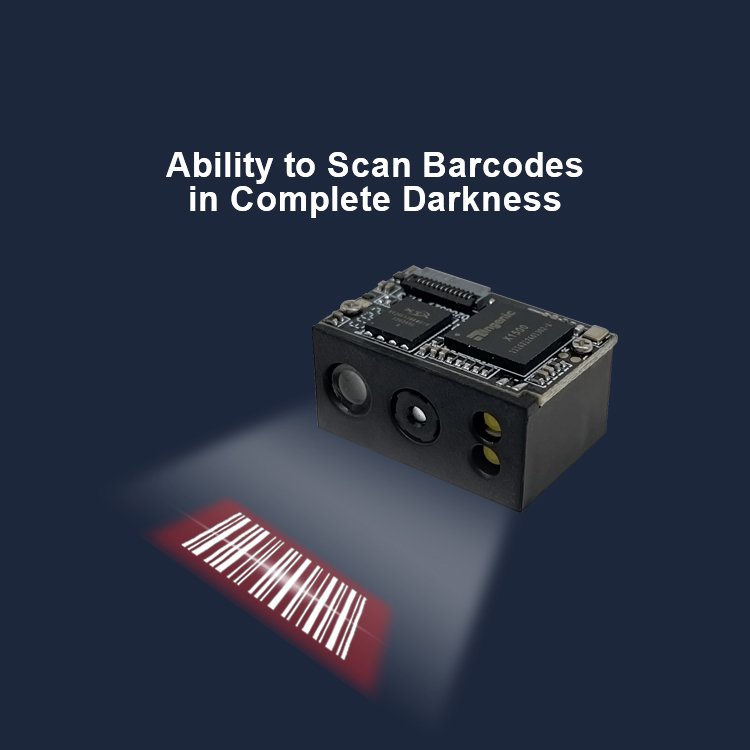

• Dark Environment Compatibility:

Onboard light source ensures functionality even in low-light or dark environments.

• Multiple Scanning Modes:

Offers flexibility with manual reading, inductive reading, and command control modes, providing customizable options for users.

PRODUCT ATTRIBUTES

Performance
Pixel	1.3 megapixels
Weight	3.5g

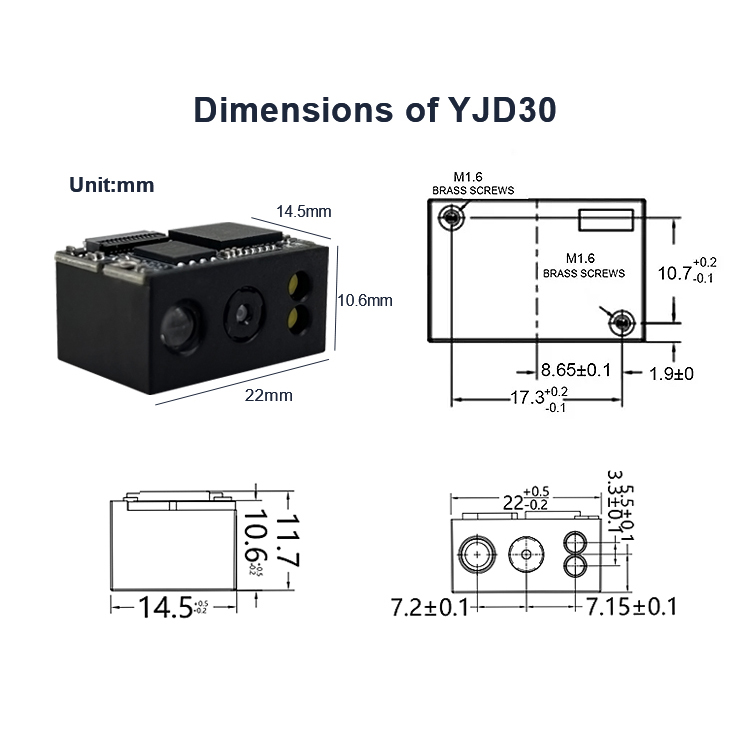

Size (LWH mm)	15.8* 21.4*11.6mm
Transmission interface	USB(USB-KBW, USB-COM),TTL
Symbol Contrast	≥20%
Sensors	CMOS
Decoding speed	65cm/s
Ambient light level	Dark environment, indoor natural light
Reading accuracy	≥3mil/0.076mm (PCS90%,CODE 39)
Reading of depth of field	30mm~500mm (different barcode range)
Scan Angle	Roll±360° Pitch±60° Skew±55°
Field of view angle	40°*30°
Working voltage	DC 3.3-5V (5V recommended)
Current	230mA (WORK)
Operating temperature	-20℃~+50℃
Storage temperature	-40℃~+60℃
Working humidity	5% to 95% (non-condensing)
Symbologies	1D: UPC-A,UPC-E,EAN-8,EAN-13,Code128,GS1-128,Code 39,Code 32,Code 93,Code 11,Interleaved 2 of 5, Matrix 2 of 5,Industrial2 of 5(Straight 2 of 5),Codabar (NW-7),MSl, GS1 Databar 2D: QR Code,Micro QR Code,Data Matrix,PDF417,Micro PDF 417,Aztec,etc.
Scan Mode	Manual reading, inductive reading, command control
Tip method	LED indicator, buzzer (external circuit)
