H2518PM

Product specifications

Decoding ability

1D/2D

Scanning accuracy

≥ 4.5mil

BER

1/5 million

Communication interface

USB-HID, RS232 (optional) USB-COM

Dimension of display

30mm*35mm

Size

80mm * 60mm * 160mm

Features

CMOS

IP42

2000mAh

2.4G Wireless

Bluetooth

USB

RS232 (optional)

Application Scenarios

POS

Retail

Payment

Features

Specifications

PRODUCT FEATURES

• Comprehensive Feedback System

The combination of a buzzer and LED indicator lights provides users with clear feedback on the scanning status, ensuring efficient operation and minimizing errors.

• Resilience in Challenging Environments

With an IP42 protection rating and the ability to pass a 1.5-meter drop test repeatedly, the scanner is built to withstand tough conditions, making it suitable for use in warehouses, manufacturing facilities, and other demanding environments.

• Enhanced Reading Speed and Recognition Capabilities:

The scanner boasts faster reading speed and stronger recognition capabilities, thanks to its highly integrated hardware design. This ensures quick and accurate scanning of barcodes, increasing operational efficiency.

• Support for Various Barcode Formats and Scanning Modes

The scanner supports a wide range of barcode formats and scanning modes, catering to the diverse needs of different industries and scenarios. Whether it's 1D or 2D barcodes, the scanner can handle them efficiently.

PRODUCT ATTRIBUTES


light source :	625nm LED fill light
Decoding ability:	2D code: QCode, PDF417, MaxiCode, Aztec, DataMatrix (ECC200), Micro QR, Hanshin code, Micro PDF417. 1D Code: EAN13, EANB, UPC-A, UPC-E, UPC-E, Code128, Code39, Code93, CodaBar, Interleaved 2 of5, Industrial 25, Matrix 2 of5Code11MSIPlessey, RSS-14, Qualified RSS, Extended RSSStandard 2 of 5, Plessey, ChinaPost 25, etc.
Scanning principle:	image type CMOS
Trigger Mode:	Manual Mode / Sensor Mode / Continuous Mode / Command Mode
Scanning Angle:	Tilt angle 65° Rotation angle 360° Deflection angle 60°
Scanning accuracy:	≥ 4.5mil
Read prompts:	LED prompts and beeper, vibration prompts (provide external interface)
Depth of field:	EAN-13 40-200mm (13mil) 40-250mm (13mil) Code128 45-250mm(15mil)45-280mm(15mil) QR Code 40-180mm(15mil)40-230m(15mil)
Wireless transmission distance:	100 metres in the open without obstacles
Bluetooth transmission distance:	30 metres without obstacles in the open distance
BER:	1/5 million
Communication interface:	USB-HID, RS232 (optional) USB-COM
Dimension of display:	30mm*35mm

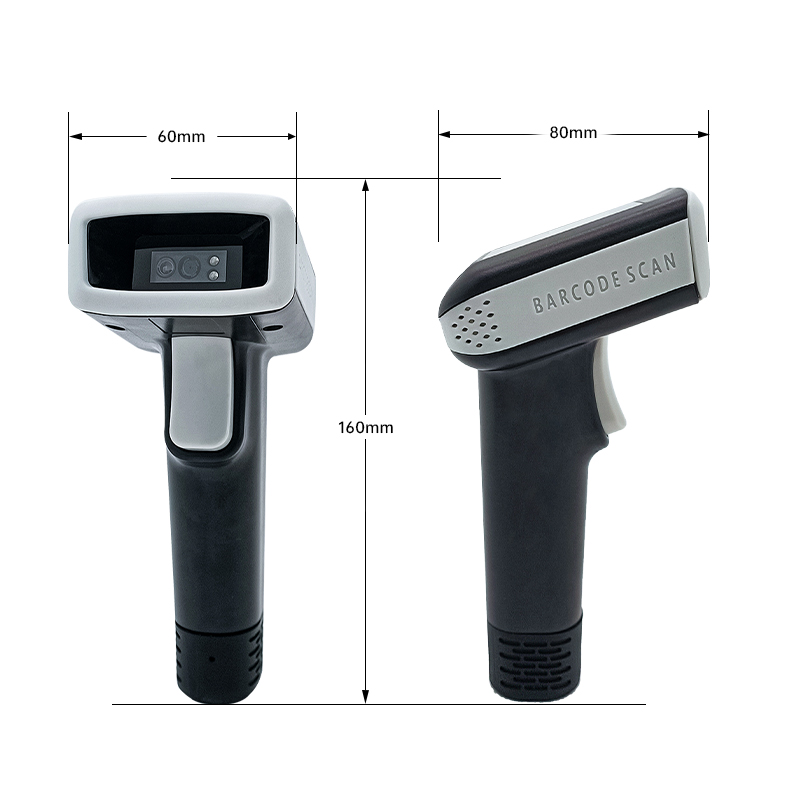

Size:	80mm * 60mm * 160mm (L x W x H)
Battery capacity:	2000mAh
Battery charging time:	4.5 hours
Continuous working time:	≥10 hours (6 seconds/time)
Weight:	160g
Material:	ABS+TPU
Working temperature:	-20°C~55°C
Storage temperature:	-20°C~60°C
Relative humidity:	5%~95% (non-condensing)
Shock resistance:	1.5 metres rolling drop test
Voltage:	DC5V±5%
