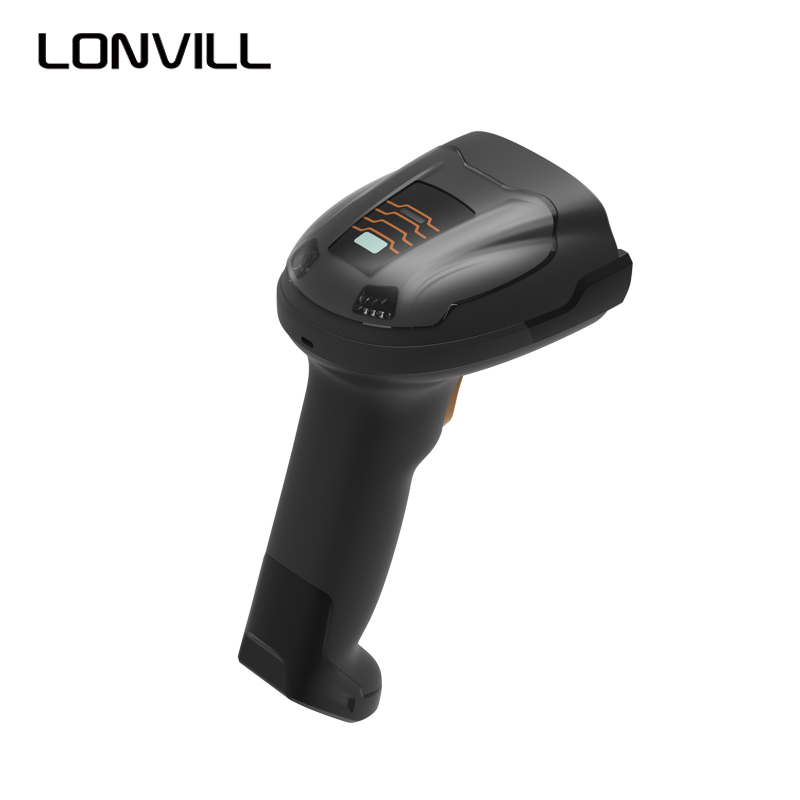

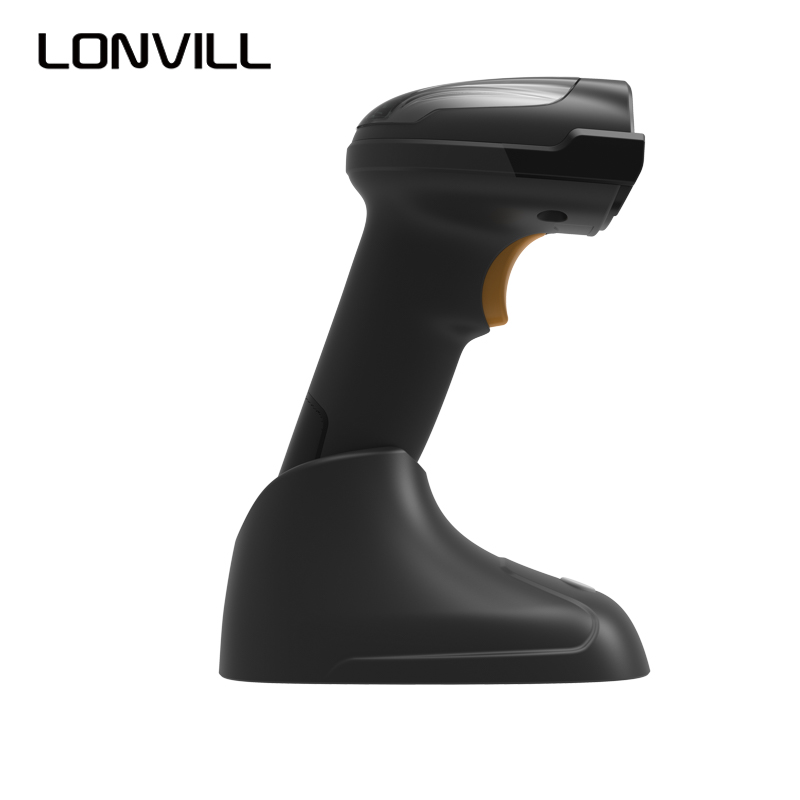

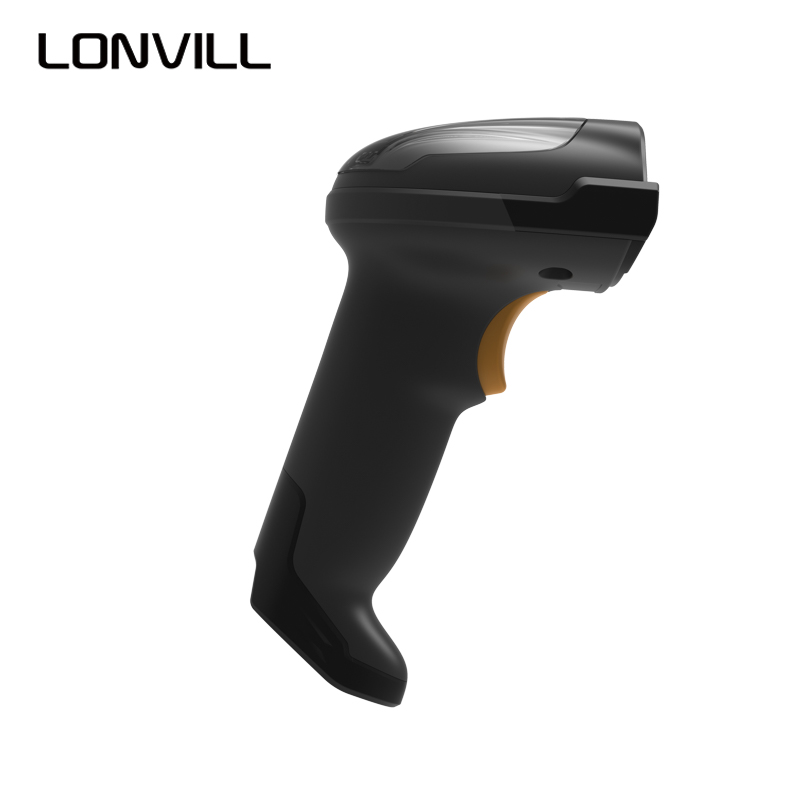

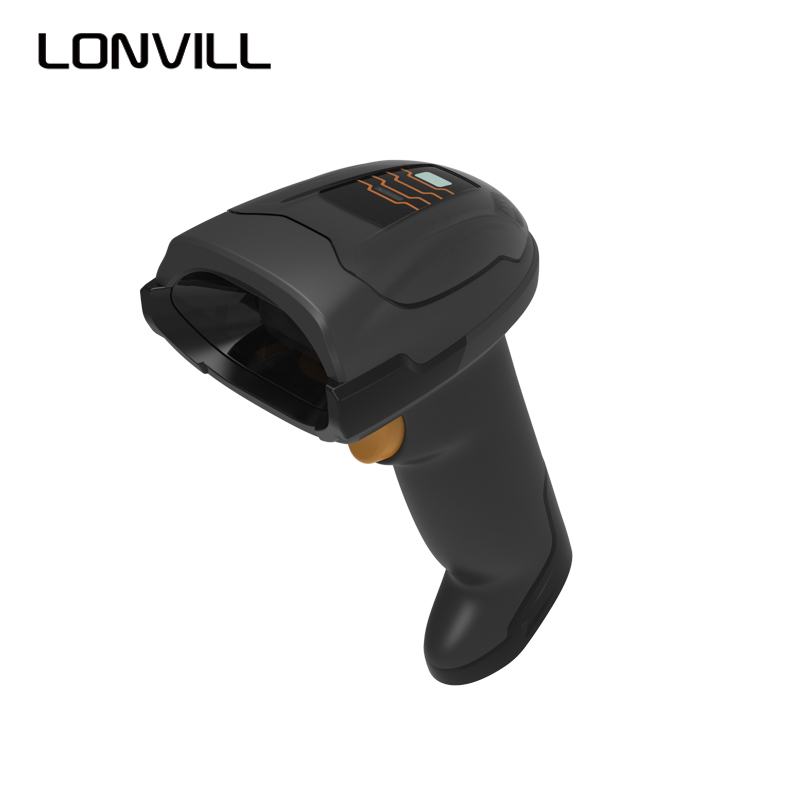

H1301

Product specifications

Sealing

IP42

Base

POE

Optical Resolution

1280(H)*800(V)

Dimensions

173mm(H)* 74mm(W) * 87mm(D)

Blue-Tooth

RFID

Ethernet

Features

Specifications

PRODUCT FEATURES

• Superior Decoding Capabilities

Supports fast reading of poorly printed, wrinkled, faded, distorted, dirty, or damaged barcodes, as well as electronic codes on dark screens.

• Base Configuration

Supports communication between one barcode scanner and multiple bases and multiple barcode scanners and one base

• Charging Configuration

Base powers the scanner: Wireless network port Base charging: Supports POE

• Industrial Protocols

Supports Modbus TCP, TCP/IP and other industrial protocols

• Code Reading Modes

Keyboard Code Reading / Sensor Code Reading / Auto Scan Mode / Batch Reading Mode / Pulse Mode

• Application Scenarios

Retail Industry, Transportation and Logistics, Light Industrial Manufacturing, Government Administration and Warehouse Management

PRODUCT ATTRIBUTES

PHYSICAL CHARACTERISTICS
Dimensions	Corded：
	173mm(H)* 74mm(W) * 87mm(D)
	Cordless：
	173mm(H)* 74mm(W) * 87mm(D)
	Cordless Bass：
	133mm(H)* 97mm(W) * 70mm(D)
Weight	Corded：
	About 138g（Cable not included）
	Cordless：
	About 195g（Battery included）
	Cordless Bass：
	About 145g（Cable not included）
Input Voltage Range	Corded USB：DC5-12V
	Corded RS232：DC5-12V
	Corded POE：IEEE 802.3af standard(37V-57V)
	Base （DC port）：DC12V
	Base （USB ）：DC5V
	Base （POE）：IEEE 802.3af standard(37V-57V)
Current1	Operating：220mA
Current1	Base：15mA（Standby）standard USB；
Color	Gray and Orange
Supported Host	USB，RS232，Industrial Ethernet
Interfaces	USB，RS232，Industrial Ethernet
Communication Protocols	USB-keyboard，USB-CDC，Serial，Modbus TCP & Std TCP/IP，Profinet，Ethernet/IP，HTTP
Keyboard Support	Supports multiple international keyboards
User Indicators	Multi-angle decoding LED indicator，Battery indicator LED，Beeper，vibration
PERFORMANCE CHARACTERISTICS
Aiming	Dot LED
Illumination	White LED
Image Field of View	Horizontal：46°，Vertical：36°
Image Sensor	1280*800 pixels
Minimum Print Contrast	20%minimum reflective difference
Skew/Pitch/Roll	+/- 60°;+/- 60°;0-360°
Minimum Resolution	Code128：3.33 mil;
Minimum Resolution	Data Matrix：8mil;
USER ENVIRONMENT
Operating Temp.	-10°C - 50°C
Charging Temp.	0°C - 40°C
Storage Temp.	-30°C - 70°C
Humidity	5% – 95% non-condensing
Drop Specification	Withstands multiple 1.2 m drops to concrete
Tumble Specification	Multiple tumbles @ 0.5m
Sealing	IP42
Ambient Light Immunity	96,840 Lux（diect sunlight）
WIRELESS CONNECTIVITY
Bluetooth Radio	Standard Bluetooth version 4.2 (BLE supported)
Adjustable Bluetooth power	-20dB-21dB
Radio Range	Direct line of sight in open air: 60 m
BATTERY
Battery	Capacity：2600mAh
	Usable time when fully charged：12hours
	Charging time from empty to fully charged：5 hours（Use 5VDC-2A power supply）
	Charging time from automatic power off to usable state7：1.5 hours（Use 5VDC-2A power supply）
ACCESSORIES
Communication Base，Matching Data Cable
DECODE CAPABLITIES
1D	Codabar、Code11、Code128、ISBT128、Code32、Code39、TLC39、Code93/93i、BC412、UK Plessey、Anker Plessey、EAN-13、EAN-8、GS1、MSI、Telepen、Pharma、PatchCode、UPC-A、UPC-E、2 fo 5 (China Post、Interleaved 2 of 5、Matrix 2 of 5、NEC 2 of 5、Straight 2 of 5 iATA、Straight 2 of 5 Industrial)、Korea Post、China Post、Australia Postal、Royal INFOMAIL、Japan Postal、KIX、PLANETCODE、 POSTNET、Britain Postal、UPU、USPS 4STATE
2D	Aztec Code、Han Xin、Data Matrix、MaxiCode、QR、Micro QR、rMQR、Dot Code、Grid Matrix、 Codablock A、Codablock F、PDF417、Micro PDF417
DECODE RANGES
Symbology/Resolution	Near/Far
Code39 :3.33 mil	5mm - 135mm
Code39 :10 mil	5mm - 335mm
Code128 :6.66 mil	0mm - 245mm
Code128 :13.33 mil	0mm - 405mm
Data Matrix:10 mil	0mm - 175mm
QR:20 mil	0mm - 385mm
