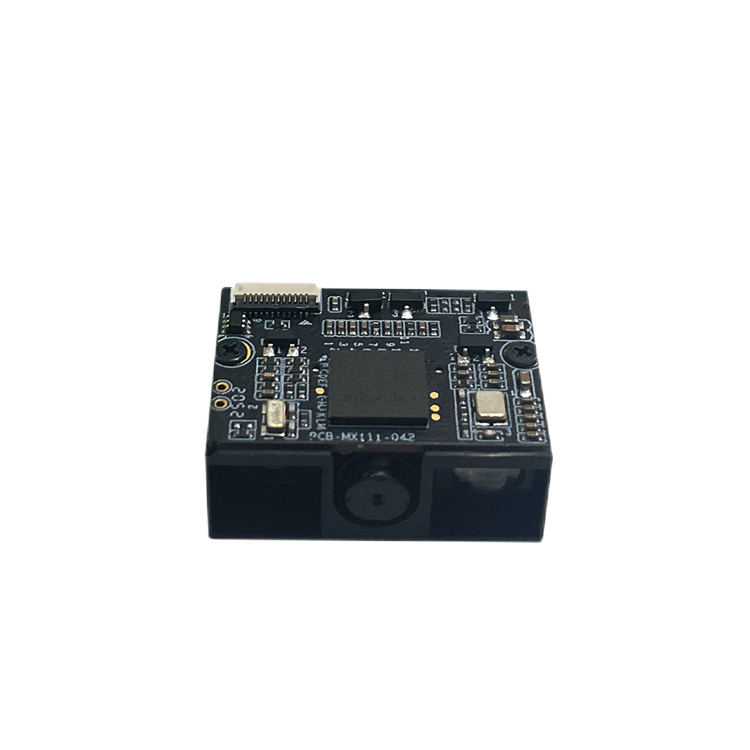

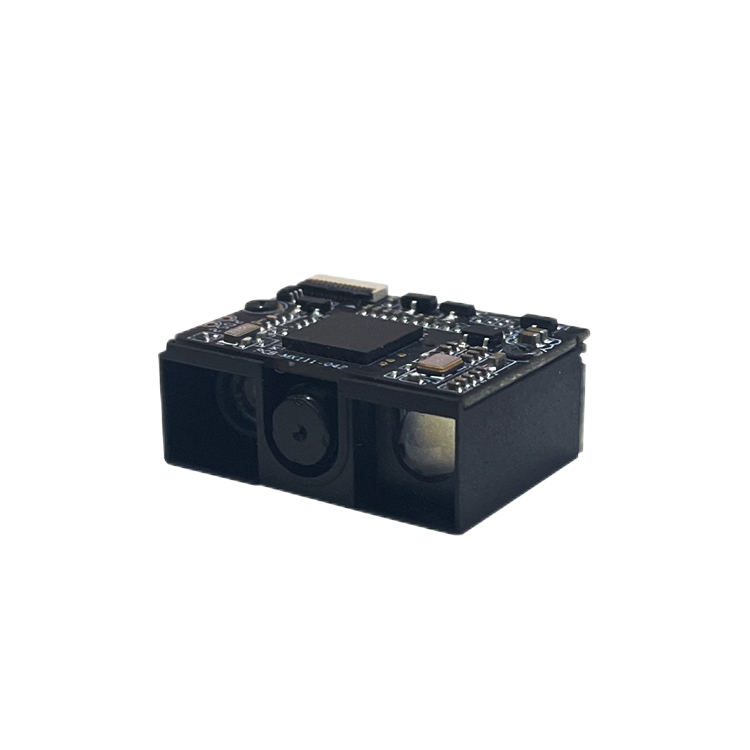

GX11
Contact UsProduct specifications
Image Sensor
1280*800 CMOS
Illumination
5600K White LED
Aiming
617nm Red LED
Field of View
46° (H) * 35° (V)
Resolution(min)
0.1mm(4mil)@Code 39, PCS=90%
Dimensions
28mm *20mm *11.8mm
Weight
5g
Features
![](https://lonvillscan.com/static/home/images/86.png)
1D Barcode
![](https://lonvillscan.com/static/home/images/87.png)
2D Barcode
![](https://lonvillscan.com/upload/files/article/20240122/17059066511421761.png)
CMOS
![](https://lonvillscan.com/upload/files/article/20240122/17059066611819312.png)
USB
![](https://lonvillscan.com/upload/files/article/20240122/17059066666898525.png)
RS232
Applications
![](https://lonvillscan.com/upload/files/article/20240122/17059066806138406.png)
Barcode scanner
![](https://lonvillscan.com/upload/files/article/20240122/17059066935077718.png)
Vending Machine
![](https://lonvillscan.com/upload/files/article/20240122/17059066923553278.png)
Kiosk
Features
Specifications
PRODUCT FEATURES
• Advanced Megapixel Imaging
1280x800 CMOS sensor ensures high-performance decoding of difficult barcodes.
• Versatile Decoding Capability
Excels in fast, accurate reading of metal, curved, and reflective codes.
• Flexible Depth of Field
Short-range (SR) and long-range (LR) options for diverse industrial applications.
• Compact & Robust Design
Small, lightweight (28mm * 20mm * 11.8mm, 5g) for easy integration into industrial devices.
PRODUCT ATTRIBUTES
Sensor | 1280 pixels (H)x 800 pixels (V) |
Illumination | Aiming: 617nm Red LED , illumination: 5600K White LED |
Scan Distance | 30mm - 340 mm @UPCA -13mil 100 %,PCS 90% |
Field of View | 46° (H) x 35° (V) |
Resolution(min) | 0.1mm(4mil)@Code 39, PCS=90% |
Trigger Mode | Button Trigger |
Print Contrast | >30% ( UPC/EAN 100%) |
Interface | 12pin3.3V TTL ZIF , USB , RS-232 |
Decoding Capacity | 1D: UPC-A,UPC-E,EAN-8,EAN-13,ISBN,Code 39,Code 93,Code 128,Codabar,Interleaved 2 of 5,RSS-14,RSS-14 Limited,RSS-14 Expanded 2D: PDF417.MicroPDF417,Data Matrix,QR Code Micro QR Code (off by default) ,Maxicode ,Aztec, Support reading codes on screen |
Depth of Field | GX-11 SR: Code 39 3mil 65mm-100mm Code 39 4mil 50mm-130mm Code 39 5mil 40mm-165mm EAN 13mil 30mm-340mm GX-11 LR: Code 39 4mil 65mm-125mm Code 39 5mil 55mm-160mm EAN 13mil 35mm-440mm |
Dimensions | 28mm x 20mm x11.8mm |
Weight | 5g |
Power | 3.3 VDC +/-10% @ 180 mA |
Working Temp. | -20° to 50° C |
Storage Temp. | -40° to 70° C |
Humidity | 5% to 95%, Non-condensing |
Ambient Light | 0~8,600Lux(fluorescence light) 0~100,000Lux (sunlight) |
