Home Products Barcode Scanner Barcode Scan Module / Engine for Access Control Y31

Y31

Product specifications

Decode Capability

1D/2D

Dimension

38(W)*21(D)*9.2(H)mm

Certification

FCC CE,RoHS

Interface

USB/RS232/TTL

Features

1D Barcode

2D Barcode

CMOS

USB

RS232

TTL

Applications

Access control

Entrance

Handheld PDA

Vending Machine

Features

Specifications

PRODUCT FEATURES

• Application Scenario

Y31 is an ultra-compact area imaging engine designed to optimize barcode reading. The engine decodes through image capture. It is suitable for access control equipment supporting, ticketing equipment supporting, traditional self-service equipment supporting, etc.

• Lighting Characteristics

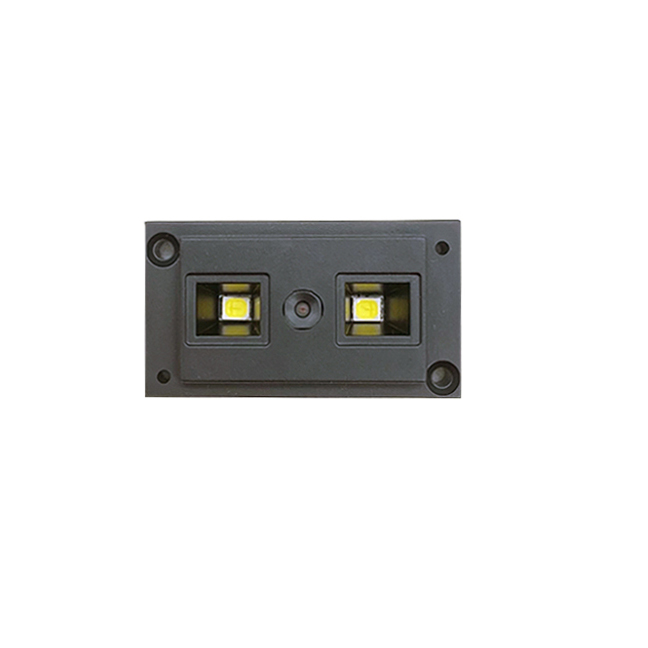

The Y31 is illuminated by two white LEDs (wavelength range 445±465nm) to provide exposure assistance. In complete darkness, it can still rely on its auxiliary illumination to read barcode targets quickly. The illumination function can be set to on or off.

• Features

Self-developed core technology, ultra-thin structure, high integration, large field of view. No driver is required for plug and play.

• Excellent Performance

Excellent performance, can quickly read paper, film type 1D barcode, 2D barcode, high reflective screen barcode, low brightness barcode, compatible with ordinary commodity code / paper code plus payment code dual reading performance, while supporting red bottom barcode reading.

PRODUCT ATTRIBUTES

Image Sensor	640*480 CMOS
illumination	White LED
Symbologies	1D: Codabar , Code 39 , Code 32 , Interleaved 2 of 5 , Industrial 2 of 5 , Matrix 2 of 5 , Code 93 , UPC-A , Code 11 , Code 128 , GS1-128 , ISBT 128 , UPC-E, EAN/JAN-8 , EAN/JAN-13 , Qlessey , Msiplessey , GS1 DataBar (RSS14) , Standard 2 of 5 ,etc. 2D: PDF417 ,Micro PDF417 ,QR Code ,Micro QR , Data Matrix ,Aztec ,Hanxi code, etc.
Resolution	≥5mil
Typical Depth of Field	Mobile WeChat payment code: 50mm-300mm(6.55 inch Android phone)
Field of View	Diagonal 85.1°, horizontal 74°, vertical 65°
Read Barcode sensitivity	Tilt ±70°, deflection ±70°, rotation 360°
Symbol Contrast	≥30%
Dimensions	38(W)21(D)9.2(H)mm(Max)
Interface	USB、TTL
Operating Voltage	3.3VDC±5%
Current@3.3 VDC	Operating : 170mA (RMS typical), 200mA (RMS max) Standby :145mA Sleep : 6mA
Operating Temperature	-10℃~+60℃
Storage Temperature	-40℃~+70℃
Humidity	5% to 95% non-condensing
Ambient light	0~100,000LUX
Development board	Development board with trigger buttons and buzzer with RS232 and USB
Data cable	USB: USB data cable to connect the development board and the information receiving host. RS-232: RS232 data cable to connect the development board and the information receiving host.
International Certification	FCC CE,RoHS
Warranty	2 Year
