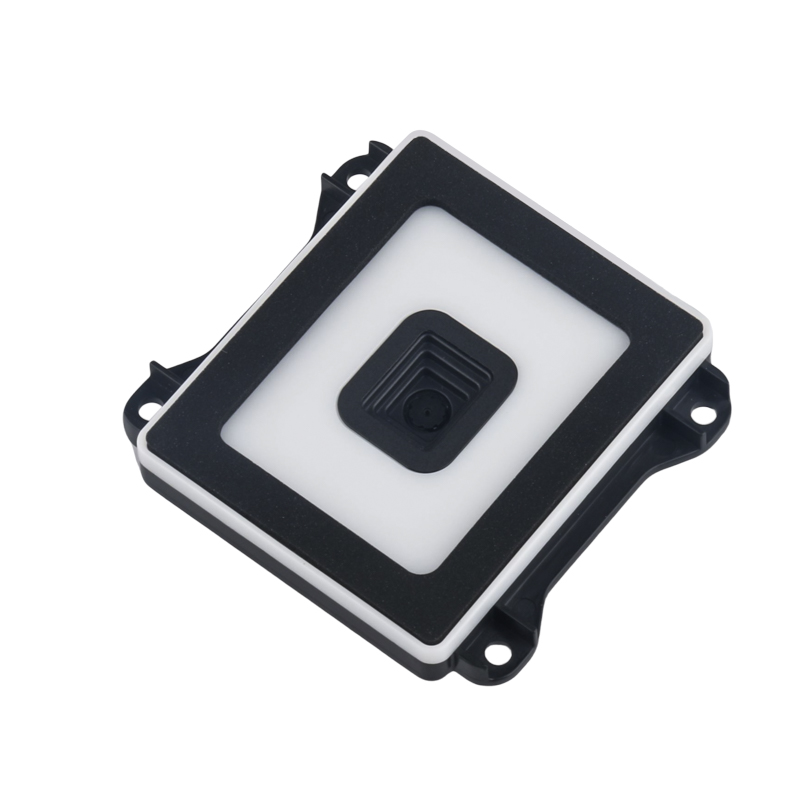

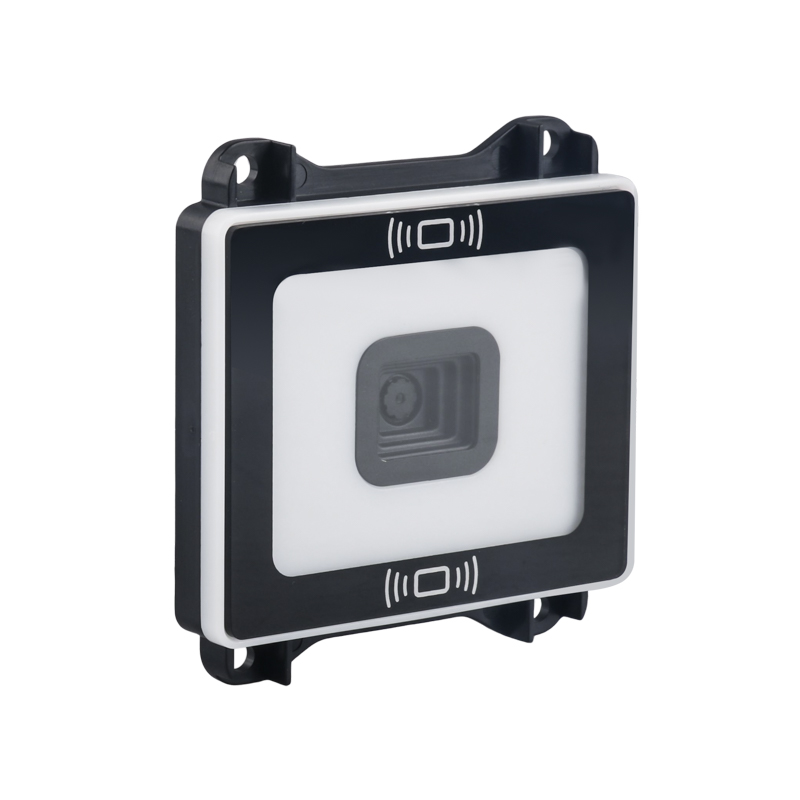

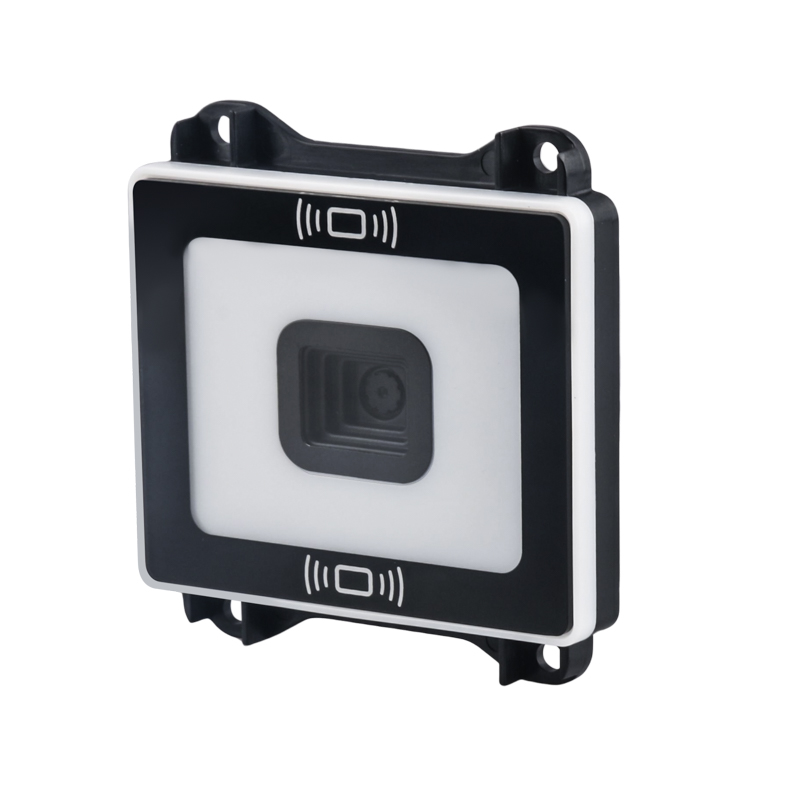

M1617

Contact Us
Product specifications
Decode Capability
1D code/QR code/IC card/NFC card
Dimension
65mm*61mm*18.3mm
NFC Sensing Distance
0-5CM
Decoding Speed
65CM/S
Resolution
0.3MP，640*480
Illumination
Warm white LED
NFC Support Protocol
ISO14443A and other 13.56Mhz protocols
Features
1D Barcode
2D Barcode
NFC
USB
RS232
RS485
TTL
Wiegand
Applications
Access control
office
Vending Machine
Self-checkout
M1617 (6)-6
M1617 (7)-7
M1617 (2)-2
M1617 (8)-8
未标题-1
M1617 (6)-6
M1617 (7)-7
M1617 (2)-2
M1617 (8)-8
未标题-1
Features
Specifications
PRODUCT FEATURES
• Warm Light Design
Adopting warm white light design, the light source is gentler.

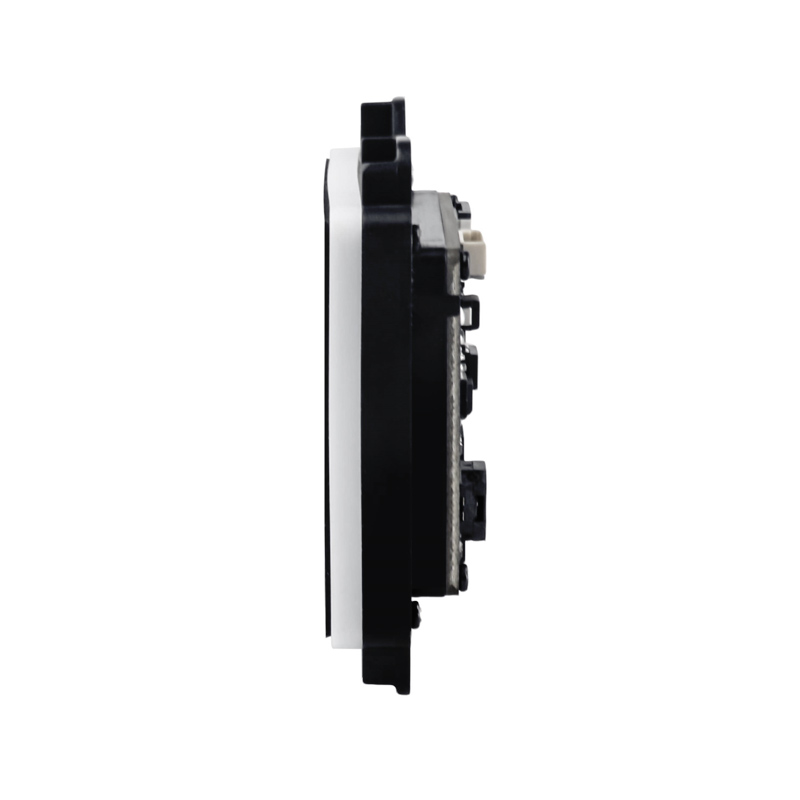

• Ultra Thin Structure
With a thickness of less than 16mm, it is particularly suitable for use with lightweight terminal devices.
• Personalized Service
SDK, customized development, customized protective film, and support for customizing various specifications of electronic cables can be provided.
• NFC Card Reading
NFC function version is optional, NFC supports reading various protocol cards such as access cards and membership cards.
• Decoding and Rich Functionality
Supports over 40 types of barcode recognition, OCR recognition, and multiple recognition modes.
• Both Screen and Paper Codes are Readable
Supports barcode scanning for various materials, colors, bends, and folds, with enhanced barcode reading capabilities that can adapt to low brightness screens and barcode scanning for various film coated screens.
PRODUCT ATTRIBUTES
Performance Parameters
Communication MethodUSB（USB-KBW，HID-POS，USB-COM）、RS232，TTL，Wiegand，RS485
Main frequency1Ghz
Image SensorCMOS，global shutter
Resolution0.3MP，640*480
Resolution≥3mil/0.075mm（PCS90%,CODE 39）
IlluminationWarm white LED
Depth of Field30mm~210mm(Different barcode ranges)
Decoding Speed65CM/S
Reading modeInductive reading mode, continuous reading mode, command control
Prompt ModeBuzzer
PerspectiveHorizontal 60°, Vertical 50°, Diagonal 72°
Reading AngleTest Conditions：CODE39,10mil/0.25mm,PCS90%
Roll: ±360°，Pitch:±60°，Skew: ±55°
Print Contrast≥20%
Ambient Light IntensityDark environment, natural light indoors
Code Reading1D：UPC-A，UPC-E，EAN-8，EAN-13，ISBN, ISSN, Coupon. Code 128，GS1-128(UCC/EAN 128)，ISBT 128,  Code 39， Code 39 Full ASCII, Code 32, Code 93，Code 11,Codabar（NW-7），Interleaved 2 of 5，Matrix 2 of 5，Industrial 2 of 5(Straight 2 of 5)，Standard 2 of 5（IATA 2 of 5），NEC 2of 5，HongKong 2 of 5(China Post), MSI Plessey，UK Plessey, Telepen Code, Trioptic Code， BC412, Pharma Code(One-Track), etc.
2D: QR Code, Micro QR Code, Data Matrix，PDF417, Micro PDF 417， MaxiCode, Aztec，HanXin Code, Codablock A, Codablock F, etc.
Other：GS1 Databar(Omnidirectional, Truncated Stacked, Limited, Expanded, Stacked Omnidirectional, Expanded Stacked, Expanded Stacked)，GS1 Composite（Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked, GS1-128, UPC-A, UPC-E, EAN/JAN-8, EAN/JAN-13）,Chinese ID Card OCR, Korea Post, Australian Post, Royal Mail, USPS Intelligent Mail, Japanese Post, Planet Code, USPS Postnet, KIX Code
NFC Sensing Distance0-5CM
NFC Output FormatDecimal (default), Hexadecimal
NFC Reading and Writing InstructionsSupports reading, but not writing
NFC Support ProtocolISO14443A and other 13.56Mhz protocols
