D2706
Contact UsProduct specifications
Image Sensor
640 * 480 CMOS
Decoding accuracy
≥7.5mil
Size
85*85*80(mm)
Scanning Mode
Auto-sensing Mode, Continuous Mode
Input Voltage
5VDC±10% (host power supply)
Features
1D
2D
CMOS
USB
Application Scenarios
Retail
Supermarket
Features
Specifications
PRODUCT FEATURES
• Instant Triggering
Automatically scans upon barcode proximity.
• Versatile Angle Decoding
High sensitivity ensures barcode reading from any orientation without alignment.
• Clear Audiovisual Alerts

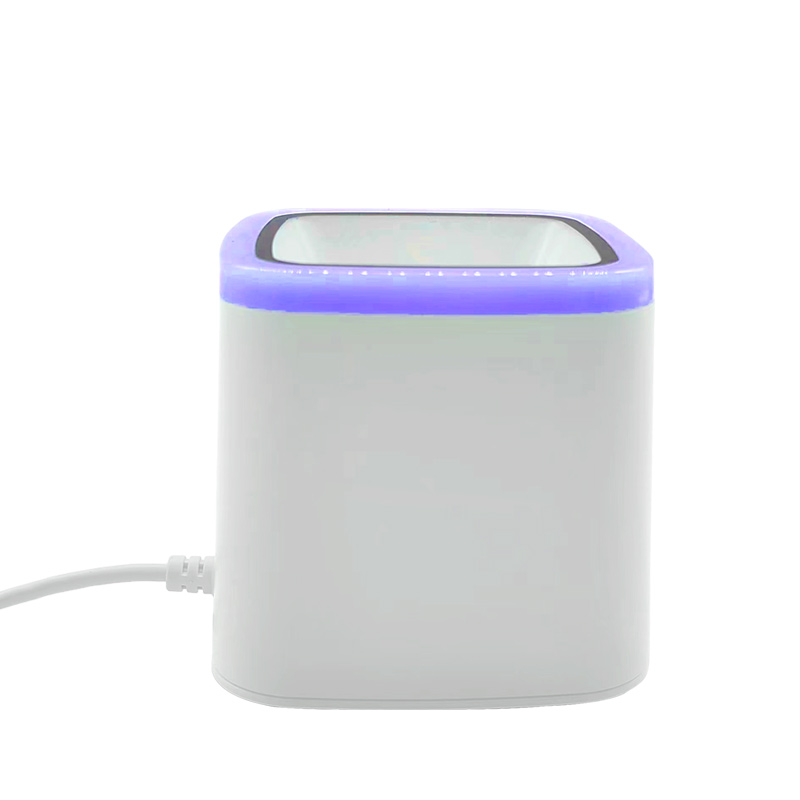

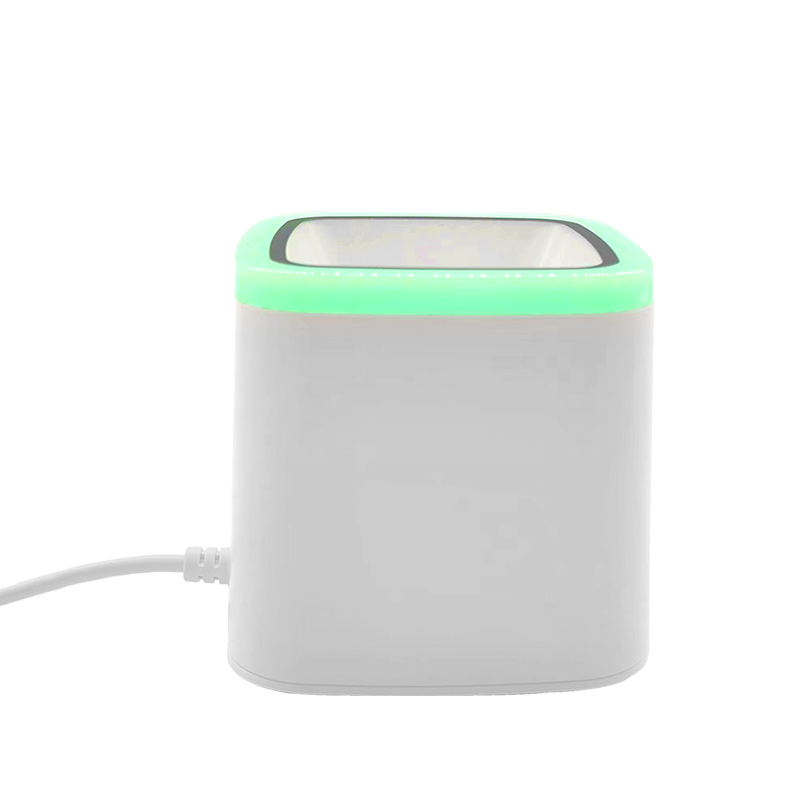

Alipay prompts with a blue light, while WeChat prompts with a green light, ensuring intuitive usage.
• Rapid Decoding
Boasts high decoding speed paired with an impressively low error rate.
PRODUCT ATTRIBUTES
| Image Sensor | 640 * 480 CMOS |
| Illumination source | 4 white, blue, green and red 4-colour LEDs |
| 2D | QR Code |
| 1D | Code 128，EAN-13 |
| Decoding accuracy | 1D barcode ≥7.5mil,2D barcode ≥12.5mil |
| Depth of field | EAN13: 10mm-100mm (13mil) Payment by mobile phone: QR code 10mm-180mm (15mil) |
| PCS | 30% |
| Chassis connector | USB-HID |
| Size | 85*85*80(mm) |
| Scanning Mode | Auto-sensing Mode, Continuous Mode |
| Weight | 185g (with cable) |
| Input Voltage | 5VDC±10% (host power supply) |
| Current Operating | 260mA±10mA |
| Standby | 90±10mA |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -20°C to 60°C |
| Humidity | 5%~90% (non-condensing) |
| Shock resistance | Passes 1.0m free fall test |
