D07
Contact UsProduct specifications
Light source
625nm RED LED light
Scan Angle
Pitch 65° , Rotation 360° , Yaw 75°
Communication
Bluetooth+2.4GHz Wireless
System Supported
Windows Android Linux MAC
Features
1D
2D
CMOS
IP42
USB
Application Scenarios
Retail
POS
Features
Specifications
PRODUCT FEATURES
• CMOS Photosensitive Chip
This chip automatically adjusts according to the ambient light conditions to ensure efficient scanning of codes under various lighting conditions.
• Buzzer and Tri-color Integrated Light
These features provide intuitive and clear feedback during scanning, allowing users to confirm the scanning status through sound and light.

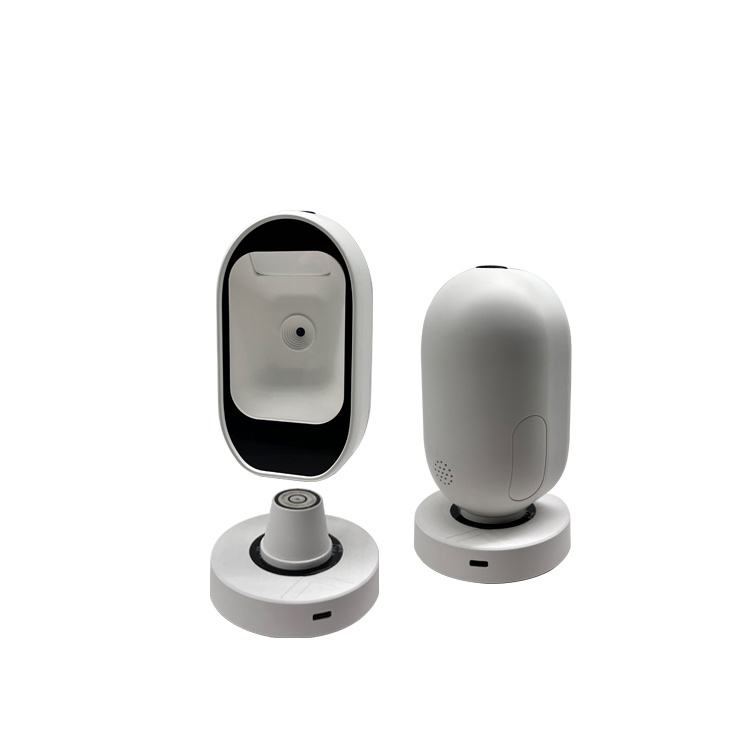

• Detachable Scanning Head
The scanning head can be separated and rotated 360°, increasing the flexibility and convenience of scanning.
• Reliable Protection
The device has an IP42 protection rating, capable of withstanding minor bumps and collisions encountered during daily use, ensuring stability and durability.
• Bluetooth 5.0 Transmission Technology
If it's the wireless version, it utilizes Bluetooth 5.0 transmission technology, which means it has strong anti-interference and stable, reliable connectivity, ensuring compatibility with other devices and stable connections.
PRODUCT ATTRIBUTES
| Light source type | 625nm LED light source fill light |
| Scanning Principle | Imaging CMOS |
| Interface Type | USB |
| Optical Resolution | 4.5mil |
| Decode Capabilities | 2D:QR Code, PDF417, MaxiCode, Aztec, DataMatrix(ECC200)Micro QR, Micro PDF417 |
| 1D:EAN13, EAN8, UPC-A, UPC-E, UPC-E, Code128,Code39, Code93, CodaBar, Interleaved 2 of5, Industrial 25, Matrix 2 of5,Code11, MSI Plessey, RSS-14, Limited RSS, Plessey, ChinaPost 25 etc. | |
| Material | ABS +PC |
| Cable standard | 1.8m |
| Feature | 2.4G Wireless BT Barcode Scanner |
| Scan Angle | Pitch 65° , Rotation 360° , Yaw 75° |
| Communication | Bluetooth+2.4GHz Wireless |
| System Supported | Windows Android Linux MAC |
| Voltage | DC5V + 5% |
| Operating voltage | 210mA |
| IP grade | IP42 |
| Dimension | 90*90*160mm |
| Weight | 360g |
| Trigger mode | Auto-sensing, continuous scanning, command mode |
| Battery capacity | 2000mAh |
| Battery charging time | 4.5 hours |
| Continuous working time | More than 10 hours (6 seconds/time) |
| Bluetooth transmission distance | 30m in the open without obstacles |
| System compatibility | Linux, Android, Windows XP,7,8,10,MAC |
| Operating temperature | -20℃-55℃ |
| Storage temperature | -20℃-60℃ |
| Relative humidity | 5%-95% (non-condensing) |
| Shock resistance | Can withstand 1.5m rolling drop test |
