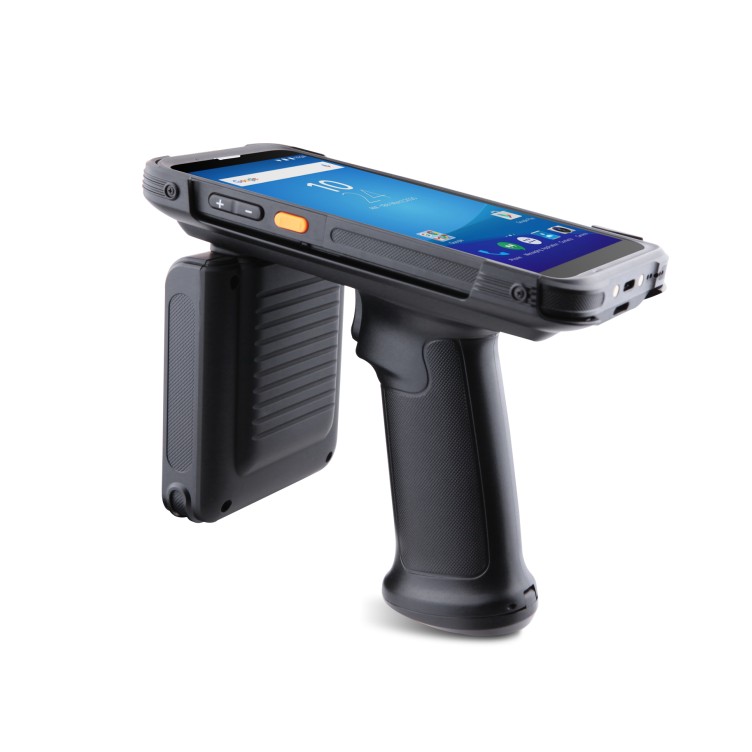

C66
Contact Us![](https://lonvillscan.com/upload/files/article/20240511/17154119327831376.png)
![](https://lonvillscan.com/upload/files/article/20240511/17154119378096749.png)
![](https://lonvillscan.com/upload/files/article/20240511/17154119684509051.png)
![](https://lonvillscan.com/upload/files/article/20240511/17154119809627721.png)
![](https://lonvillscan.com/upload/files/article/20240511/17154120085385584.png)
![](https://lonvillscan.com/upload/files/article/20240511/17154120333705049.png)
![](https://lonvillscan.com/upload/files/article/20240511/17154120394405631.png)
![](https://lonvillscan.com/upload/files/article/20240511/17154120485478119.png)
Physical Characteristics | |
Dimensions | 160.0 x 76.0 x 15.5 / 17.0 mm / 6.3 x 2.99 x 0.61 / 0.67 in. |
Weight | Android 9: 287g / 10.12oz. (device with battery) 657g / 23.17oz. (with battery, UHF 1, UHF back clip) 798g / 28.15oz. (with battery, UHF 2, C66+R6) |
Android 11: 287g / 10.12 oz.(device with battery) 297g / 10.47oz.(device with battery, Fingerprint / Volume Measurement / Built-in UHF) | |
Keypad | 1 power key, 2 scan keys, 2 volume keys |
Battery | Removable main battery (normal version:4420 mAh ; Android 11.0 with fingerprint / built-in UHF / volume measurement version: 5200mAh ) |
5200 mAh optional pistol battery, support QC3.0 and RTC | |
Standby: up to 490 hours (only main battery ; WiFi: up to 470h; 4G: up to 440h) | |
Continuous use: over 12 hours (depending on user environment) | |
Charging time: 2.5 hours (charge device by standard adaptor and USB cable) | |
Display | 5.5-inch high definition full display (18:9), IPS IGZO 1440 x 720 |
Touch Panel | Multi-touch panel, gloves and wet hands supported |
Sensor | Accelerometer sensor, light sensor, proximity sensor, gravity sensor |
Notification | Sound, LED indicator, vibrator |
Audio | 2 microphones, 1 for noise cancellation; 1 speaker; receiver |
Card slot | 1 slot for Nano SIM card, 1 slot for Nano SIM or TF card |
Interfaces | Android 9.0: USB Type-C, USB 3.0, OTG, extended thimble; Android 11.0: USB Type-C, USB 3.1, OTG, extended thimble; |
Performance | |
CPU | Android 9: Qualcomm Snapdragon™450 Octa-core, 1.8 GHz Android 11: Qualcomm Snapdragon™662 Octa-core, 2.0 GHz |
RAM+ROM | 3 GB + 32 GB / 4 GB + 64 GB |
Expansion | Supports up to 128 GB Micro SD card |
Developing Environment | |
Operating System | Android 9; GMS, 90-day security updates, Android Enterprise Recommended, Zero-Touch, FOTA, Soti MobiControl, SafeUEM supported |
Android 11; GMS, 90-day security updates, Android Enterprise Recommended, Zero-Touch, FOTA, Soti MobiControl, SafeUEM supported. Committed support for a future upgrade to Android 12, 13, and Android 14 pending feasibility | |
SDK | Software Development Kit |
Language | Java |
Tool | Eclipse / Android Studio |
User Environment | |
Operating Temp. | -4oF to 122oF / -20 ℃ to +50 ℃ |
Storage Temp. | -40oF to 158oF / -40 ℃ to +70 ℃ |
Humidity | 5% RH - 95% RH non condensing |
Drop Specification | Multiple 1.8 m / 5.91 ft. drops (at least 20 times) to the concrete across the operating temperature range |
Multiple 2.4 m / 7.87 ft. drops (at least 20 times) to the concrete after installed rubber bumper | |
Tumble Specification | 1000 x 0.5 m / 1.64 ft. falls at room temperature |
Sealing | IP65 per IEC sealing specifications |
ESD | ±15 KV air discharge, ±8 KV conductive discharge |
Communication | |
Vo-LTE | Support Vo-LTE HD video voice call |
Bluetooth | Android 9: Bluetooth 4.2/4.1+HS/4.0/3.0+HS/2.1+EDR Android 11: Bluetooth 5.1 |
GNSS | GPS/AGPS, GLONASS, BeiDou, Galileo, internal antenna |
WLAN | Support 802.11 a/b/g/n/ac/ax-ready/d/e/h/i/k/r/v, 2.4G/5G dual-band, IPV4, IPV6, 5G PA; |
Fast roaming: PMKID caching, 802.11r, OKC | |
Operating Channels: 2.4G(channel 1~13), 5G(channel36,40,44,48,52,56,60,64,100,104,108,112,116,120,124,128,132, 136,140,144,149,153,157,161,165), Depends on local regulations | |
Security and Encryption: WEP, WPA/WPA2-PSK(TKIP and AES), WAPI- PSK—EAP-TTLS, EAP-TLS, PEAP-MSCHAPv2, PEAP-LTS,PEAP-GTC,etc. | |
WWAN (Europe, Asia) | 2G: 850/900/1800/1900 MHz |
3G: CDMA EVDO: BC0 | |
WCDMA: 850/900/1900/2100MHz | |
TD-SCDMA: A/F(B34/B39) | |
4G: B1/B3/B5/B7/B8/B20/B38/B39/B40/B41 | |
WWAN(America) | 2G: 850/900/1800/1900 MHz |
3G: 850/900/1900/2100 MHz | |
4G: Android 9: B2/B4/B5/B7/B12/B17/B38 Android 11: B2/B4/B5/B7/B8/B12/B13/B17/B28A/B28B/B38 |
