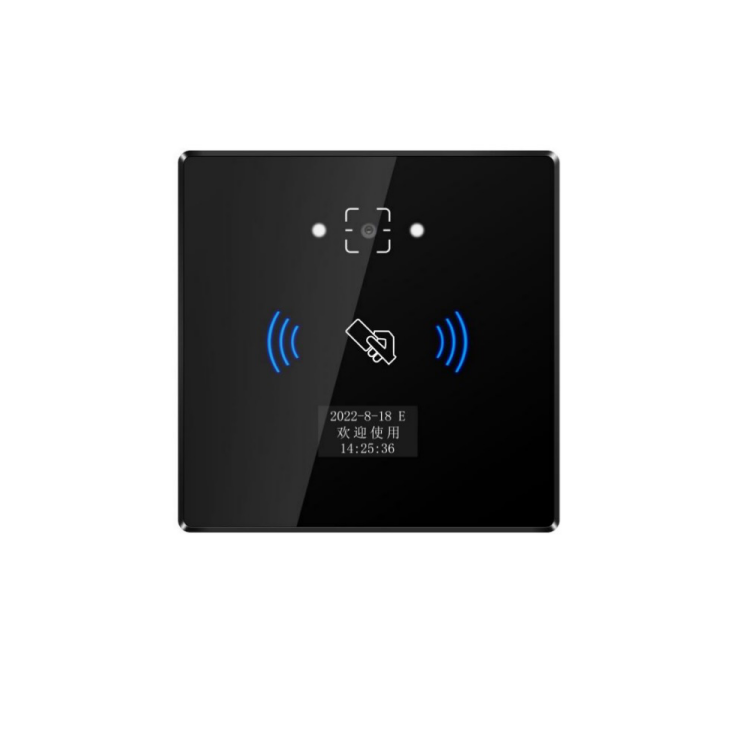

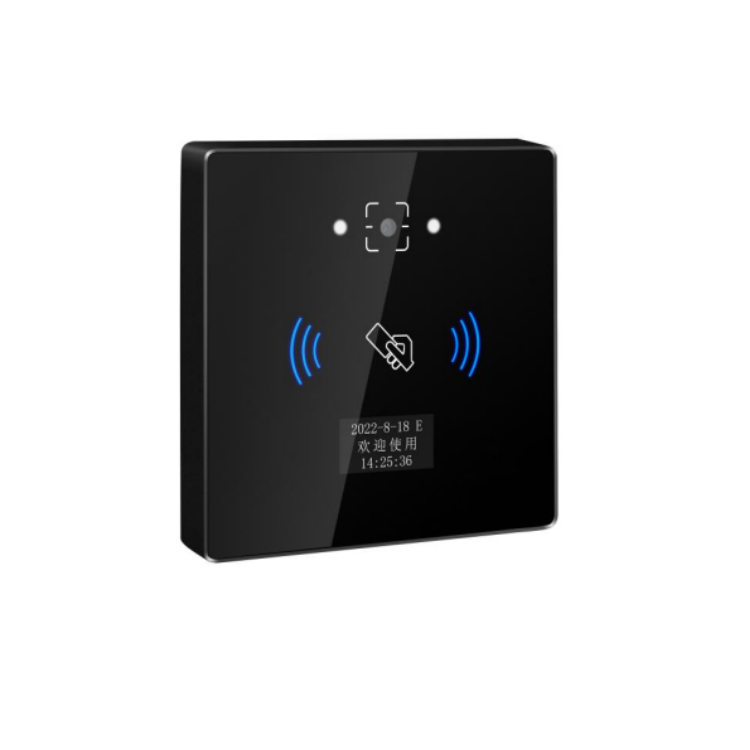

Home Products Barcode Scanner Barcode Scan Module / Engine for Access Control AC16EU

AC16EU

Product specifications

Networking method

Ethernet

WIFI(2.4G)， Bluetooth(4.0 BLE)

Optional

Identification

QR code/IC card/ID card

Communication protocols

http, https, MQTT

Features

1D Barcode

2D Barcode

NFC

CMOS

Ethernet

Applications

Access Control

Entrance

Features

Specifications

PRODUCT FEATURES

• High-Performance Recognition

Supports multiple recognition methods, including 1D & QR code, IC card, CPU card, and ID card (optional)

• Versatile Connection Methods

Connection options include Ethernet, WIFI, Bluetooth, and TCP/IP communication. It also supports HTTP/https and MQTT protocols

• Outstanding Performance

Equipped with the a outstanding CPU, this wireless handheld scanner can effortlessly capture high-density, high-volume and distorted barcodes printed on paper or displayed on screen.

• Wide Range of Applications

Suitable for access control systems, gate machines, and smart homes

PRODUCT ATTRIBUTES


Operating System	Embedded Linux
Output	Relay signal
Networking method	Ethernet
Main control chip	x1021 chip（XBurst® 800MHz）
WIFI(2.4G) Blue tooth(4.0 BLE)	Optional
Identification method	QR code/IC card/ID card
Storage capacity	Number of offline users (100,000 QR codes, 100,000 IC cards),100,000 offline records
Storage memory	128M Flash
Communication protocols	http, https, MQTT
Input & Output	Two inputs (for connecting buttons to open the door and door sensors); one infrared anti-tamper alarm sensor output;One relay output (can be used to control electric locks, gates, etc.)
Anti-tamper alarm(optional)	Support local alarm and signal output, which can be transmitted to the background in real time
Extended communication interface	Wiegand output or 485 output (optional, choose one, default Wiegand output)
Monitor	OLED 0.96-inch monitor
