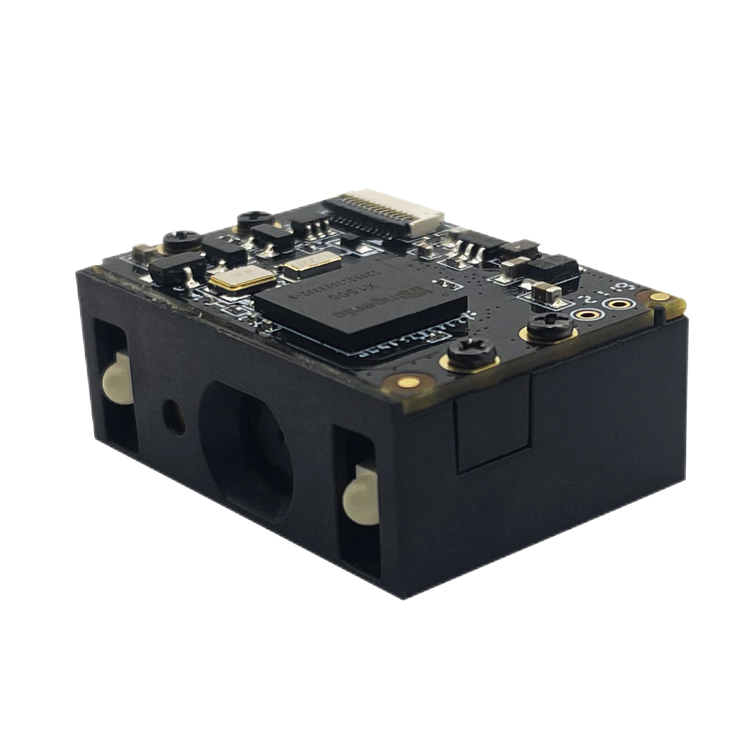

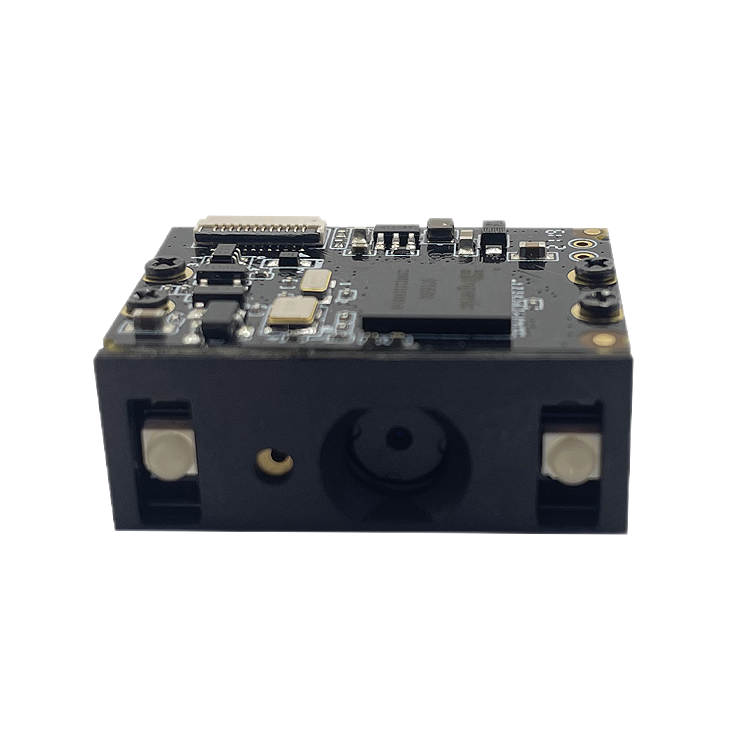

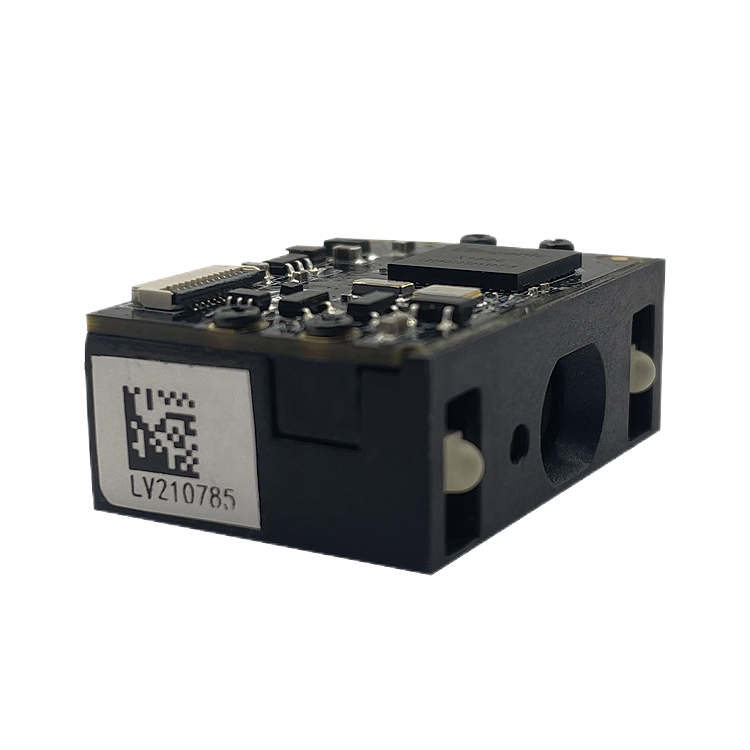

A20

Product specifications

Image Sensor

1280*800 CMOS

Illumination

2* Red LED,White LED（Optional）

Focusing

Cross Laser

Reading Accuracy

1D : ≥3 mil ; 2D : ≥7 mil

Dimensions

28 (W) * 20.5 (D) *11.8 (H)mm

Weight

Interface

USB HID Keyboard / USB Virtual COM Port / RS-232

Features

1D Barcode

2D Barcode

CMOS

USB

RS232

Applications

Barcode Scanner

Handheld PDA

Features

Specifications

PRODUCT FEATURES

• Industrial decoding performance

Adopt self-developed third generation decoding technology, suitable for common carrier barcode and all kinds of printed barcode reading, with excellent decoding performance

• Two red LED lighting system

Two red LED illumination systems, with a white LED illumination system as an option, also equipped with crosshair laser focusing

• Small size, easy to embed

Compact structure design, easy to integrate and install; 28x20.5x118mm body can be easily integrated into a variety of handheld portable barcode scanner or fixed code reading equipment

• Global exposure, longer distance scanning

Global exposure, faster scanning speed, smooth reading of all kinds of complex bar codes, and can achieve a longer distance scanning

PRODUCT ATTRIBUTES


Image Sensor	1280(H)*800(V) CMOS
illumination	2* Red LED,White LED（Optional）
Focusing	Cross Laser
Symbologies	1D: UPC A , UPC E , EAN 8 , EAN 13 , Code 128 , Code 39 , Code 93 , Code 32 , Code11 , Codabar ,Plessey , MSI , Interleaved 2 of 5 , IATA 2 of 5 , Matrix 2 of 5 , Straight 2 of 5 , Pharmacode , RSS-14 , RSS-14 Expanded , RSS-14 Limited Composite Code-A , Composite Code-B , Composite Code-C,etc. 2D: PDF 417 , Micro PDF 417 , Data Matrix , QR , Micro QR , Aztec , MaxiCode, etc.
Reading Accuracy	1D : ≥3 mil ; 2D : ≥7 mil
Scan mode	Manual mode, auto-sensing, external trigger mode, serial command mode
Typical Depth of Field	Code 39 (4mil) : 60 mm ~ 210 mm Code 39 (5mil) : 60 mm ~ 250 mm EAN-13 (13mil) : 50 mm ~ 410 mm
Field of View	Horizontal 46°, vertical 29°
Weight	7g
Symbol Contrast	≥20%(UPC/EAN 100% , PCS 90%)
Dimensions	28 (W) × 20.5 (D) × 11.8 (H)mm
Interface	USB HID Keyboard / USB Virtual COM Port / RS-232
Operating Voltage	DC 3.3V±5%
Current@3.3 VDC	Operating : 300 mA +/-5% (typical), 450 mA +/-5% (max) Standby :100 mA +/-5%
Operating Temperature	-40℃~+70℃
Storage Temperature	-20℃~+50℃
Humidity	5% to 95% non-condensing
Ambient light	0~8,600Lux (fluorescent) 0~100,000Lux (daylight)
Tip method	Buzzer, Indicator
International Certification	FCC Part15 Class B，CE EMC Class B,RoHS
Warranty	2-Year
