C4A

Product specifications

Decode Capability

1D/2D

Card reader type

EM card or Mifare card

Dimension

86mm*86mm*42mm

Weight

150g

Reading speed

＜200ms

Interface

Wiegand/USB/RS232/TCP-IP/RS485

Features

1D Barcode

2D Barcode

NFC

CMOS

USB

RS485

RS232

Wiegand

Ethernet

Applications

Access control

Parking lot

Features

Specifications

PRODUCT FEATURES

• Versatile Compatibility

The QR code + RFID card reader is designed with strong compatibility, supporting EM or Mifare cards and QR codes, making it adaptable for various applications. Its Wiegand communication method allows seamless integration with any Wiegand input controller, making it suitable for a wide range of scenarios.

• Efficient and Reliable Performance

With fast scanning speed and high recognition rates, this smart card reader ensures quick and accurate data capture. The image decoding and automatic induction features enhance efficiency, while the buzzer prompt and feedback lights provide real-time feedback for a seamless user experience.

• Durable and Practical Design

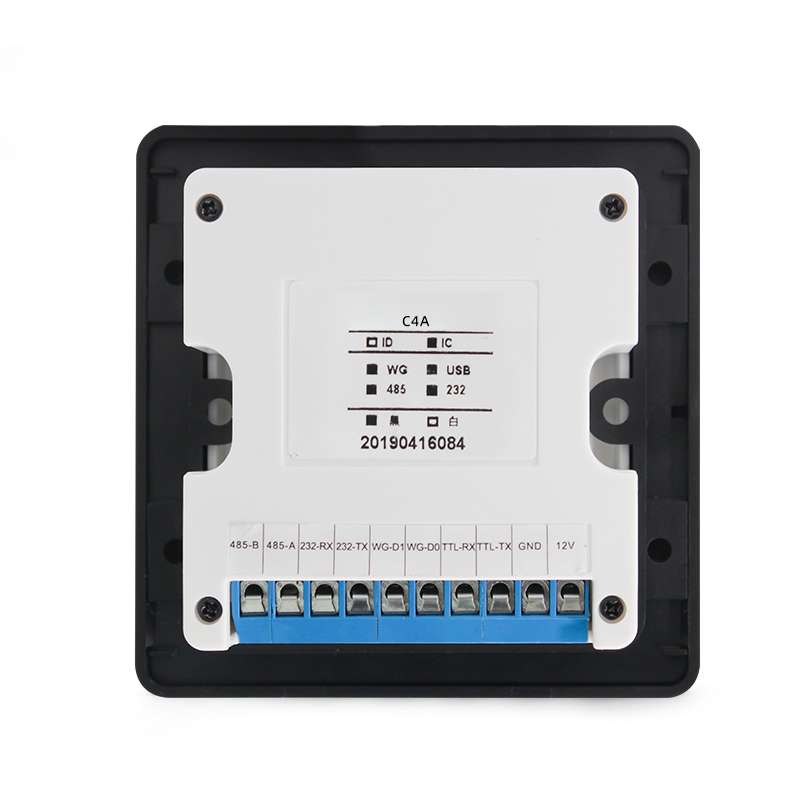

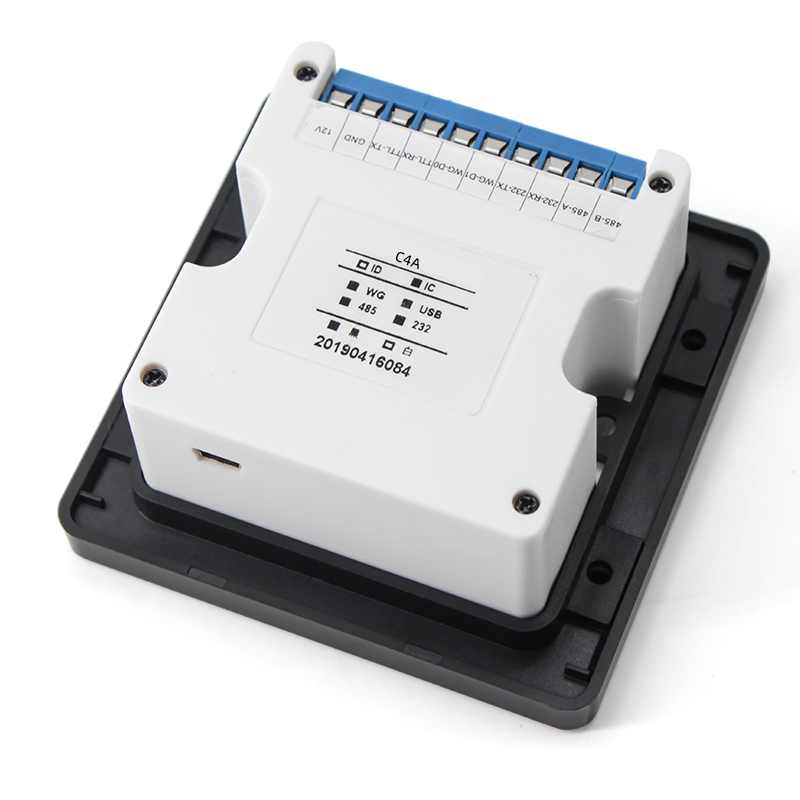

The product's standard 86-box industry design, constructed with PC and tempered glass materials, ensures durability. The compact size (86mm×86mm×42mm) and lightweight (150g) make it suitable for installation in various environments, including business offices, tourist attractions, communities, and administrative halls.

• Easy Integration and Operation

The card reader supports multiple communication methods, including Wiegand, USB, RS232, TCP-IP, and RS485, ensuring easy integration into existing systems. It is compatible with Windows and Linux operating systems, offering flexibility for different setups. Additionally, the ability to restore factory settings simplifies maintenance through a convenient reset process.

PRODUCT ATTRIBUTES

Project	Parameter	Project	Parameter
Card reader type	EM card or Mifare card	Barcode type	QR, one/two-dimensional code
communication method	Wiegand/USB/RS232/TCP-IP/RS485	Decoding mode	Image decoding
Reading direction (bar code)	Angle 45° with the lens as the center point	Scan code characteristics	Automatic induction, buzzer prompt
Operating Voltage	8-12V	Working current	800mA
Reading distance(card)	3~6CM	Reading speed	＜200ms
Reading distance(QR code)	0-20cm	Material quality	PC and tempered glass (scan code window)
Working humidity	10%~90%	Operating temperature	-20℃~70℃
operating system	WindowsXP/7/8/10), Linux	Size	86mm×86mm×42mm
Indicator light	Red work light, green feedback light, emerald green network light	Weight	150G
Remarks	Restore factory settings: Use a sharp object to insert into the Reset hole on the back of the QR code reader, and automatically restart and release the card reader.
